![Graph shows current [A] against ambient temperature [°C] for various positions: 2-pos, 5-pos, 12-pos, 24-pos. Current decreases with increasing temperature.](https://asset.conrad.com/media10/isa/160267/c1/-/en/002209405TI01/image.jpg?x=400&y=400&format=jpg&ex=400&ey=400&align=center)
1/2
Image similar

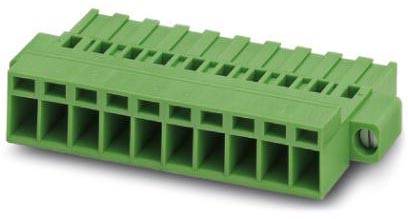

Phoenix Contact Socket housing cable Total number of pins 9 Contact spacing: 5.08 mm 1809802 50 pc(s)
Product type
Socket housing cable
Connector type
Socket
No. of rows
1
CS
5.08 mm
Total number of pins
9
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCB connector
- Content: 50 pc(s)
- No. of rows: 1
- Total number of pins: 9
Technical specifications
- Nominal cross-section 2.5 mm²
- Insulating material group: I
- Rated surge voltage (III/3) 4 kV
- Product type
Socket housing cable
- Connector type
Socket
- No. of rows
1
- CS
5.08 mm
- Total number of pins
9
- Width
55.7 mm
- Nominal current
12 A
- Nominal current - rounded value
12 A
- Content
50 pc(s)
- AWG max.
14
- AWG (min.)
20
- Dim
(L x W x H) 25 x 55.7 x 10.5 mm
- Connection
Crimp
- Manufacturer part #
1809802
- Factory colour
Green
- Insulation material
PA
- Nominal voltage
630 V
- Height
10.5 mm
- Length
25 mm
- Type
MSTBC 2,5/ 9-STZF-5,08
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209405 Phoenix Contact Socket housing cable Total number of pins 9 Contact spacing: 5.08 mm 1809802 50 pc(s)
Datasheet 2209405 Phoenix Contact Socket housing cable Total number of pins 9 Contact spacing: 5.08 mm 1809802 50 pc(s)
User & Safety Instructions
User & Safety Instructions 2209405 Phoenix Contact Socket housing cable Total number of pins 9 Contact spacing: 5.08 mm 1809802 50 pc(s)
Description
Cost-effective connection of pre-assembled conductors in large quantities. Pulling aid facilitates handling and allows to reduce tensile forces at the contact point. Screw-mounted flange for maximum mechanical stability.
