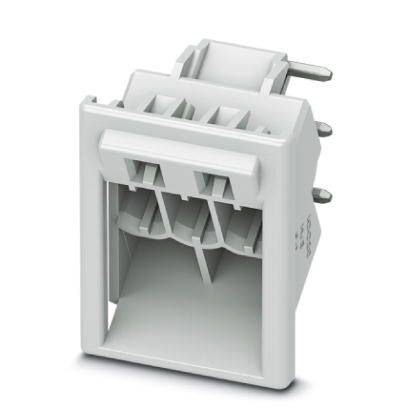

Phoenix Contact Socket inset Total number of pins 3 Contact spacing: 5 mm 2203901 50 pc(s) Piece
Product type
Socket inset
CS
5 mm
Total number of pins
3
Packaging type
Piece
Features
encodable
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCB socket strip
- Content: 50 pc(s)
- Total number of pins: 3
Technical specifications
- Width: 20 mm
- Height: 22.4 mm
- Length: 20.12 mm.
- Pitch: 5 mm
- Number of pins: 3
- Insulating material: PA
- Length of solder pin: 3.5 mm
- Dimensioning surge voltage: 4 kV
- Packaging type
Piece
- Product type
Socket inset
- Features
encodable
- CS
5 mm
- Pins per row
3
- Total number of pins
3
- Width
20 mm
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Content
50 pc(s)
- Dim
(L x W x H) 20.12 x 20 x 22.4 mm
- Connection
Solder pins
- Manufacturer part #
2203901
- Factory colour
Light grey
- Insulation material
PA
- Nominal voltage
320 V
- Height
22.4 mm
- Length
20.12 mm
- Depth
20.12 mm
- Type
ICC20-H/3R5,0-7035
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209657 Phoenix Contact Socket inset Total number of pins 3 Contact spacing: 5 mm 2203901 50 pc(s) Piece
Datasheet 2209657 Phoenix Contact Socket inset Total number of pins 3 Contact spacing: 5 mm 2203901 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2209657 Phoenix Contact Socket inset Total number of pins 3 Contact spacing: 5 mm 2203901 50 pc(s) Piece
Description
Easy and fast insertion mounting of equipped PCBs thanks to sturdy guide rails. Variable coding for high protection against miscarriage.
