Name: Phoenix Contact TC ROUTER 3002T-4G GL LAN router Built-in modem: LTE 10 / 100 MBit/s
Brand: Phoenix Contact
SKU: 3572193

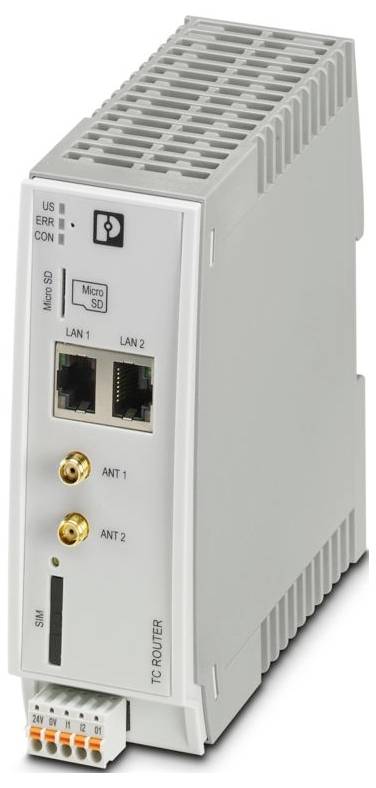

A grey industrial ethernet router with indicator lights, LAN ports, and antenna ports.

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Application: Ethernet
MTTF:
379 years (SN 29500 standard, temperature 25°C, duty cycle 21%)
182 years (SN 29500 standard, temperature 40°C, duty cycle 34.25%)
77 years (SN 29500 standard, temperature 40°C, duty cycle 100%)
1:1 Network Address Translation (NAT) in VPN: Is supported
Number of VPN tunnels: ≤ 10 (IPsec or OpenVPN)
Authentication X.509v3, PSK
Data integrity: IPsec: MD5, SHA-1, SHA-256, AHS-384, SHA-512; OPENVPN: MD5, SHA-1, SHA-224, SHA-256, AHS-384, SHA-512
Filtering: IP addresses, ports, protocols
Firewall rules: Stateful inspection firewall
Internet Protocol Security (IPsec) mode: ESP tunnel
Routing: Port forwarding, exposed host, masquerading
Encryption methods: IPsec: 3DES, AES-128, -192, -256; OpenVPN: AES..., BLOWFISH 128, DES..., CAST5 128, RC2...
Electrical isolation: VCC // LTE // Ethernet // PE
Maximum power loss at rated conditions 4.8 W.
Network type: Mobile phone
Supply voltage range: 10 V DC ... 30 V DC (via plug-in push-in terminal)
Typical current consumption: < 200 mA (24 V DC), 65 mA (With activated power-saving mode)
Power consumption max. 1.7 A
Management: Web-based management, SNMPv1/v2/v3, SSHv2
Description of the input: Digital input
Number of inputs: 2
Input signal voltage: 10 V DC ... 30 V DC
Switching level "1" signal: 10 V DC ... 30 V DC
Designation Output: Digital output
Number of outputs: 1
Output signal voltage: 10 V DC ... 30 V DC (depending on the operating voltage)
Output signal current: ≤ 50 mA (not short-circuit-proof)
Push-in spring-loaded connection type
Conductor cross-section flexible with wire-end sleeve without plastic sleeve: 0.25 mm² ... 1.5 mm².
Conductor cross-section flexible with wire-end sleeve with plastic sleeve: 0.25 mm² ... 0.75 mm²
Single-conductor/clamping point rigid: 0.14 : 0.14 mm² ... 1.5 mm².
Conductor cross-section flexible [AWG]: 26 ... 16
Wire stripping length: 9.00 mm
Web server: Yes
Data: Ethernet-interface, 10/100Base-T(X) according to IEEE 802.3
Serial transfer rate 10/100 MBit/s, auto-negotiation
Connection type: RJ45-socket, shielded
Number of channels: 2
Transfer length 100 m (twisted-pair, shielded)
SUPPORTED PROTOCOLS TCP/IP, UDP/IP, HTTP(S), (S)FTP; VPN: IPSEC, OpenVPN
Auxiliary protocols: ARP, DHCP, DNS, DynDNS, PING (ICMP), SMTP(S), NTP, SSL/TLS, STARTTLS, SMS
WIRELESS INTERFACE 4G (LTE) / 3G (HSPA+) / 2G (EDGE)
Frequency range 2100 700 MHz (LTE (FDD), B1), 1900 900 MHz (FDD), B2), 1800 MHz (LTE (FDD), B3), 1700 MHz (LTE (FDD), B4), 2100 MHz (LTE (FDD), B4), 850 MHz (LTE (FDD), B5), 2600 MHz (LTE (FDD), FDD), FDD (FDD), 700 (FDD) B13), 800 1700 2600 MHZ (LTE (FDD), B18), 800 2100 MHZ (LTE (FDD), B19), 800 2000 MHZ (LTE (FDD), B20), 1900 MHZ (LTE (FDD), B25), 850 MHZ (LTE (FDD), B26), 700 MHZ (LTE), TDD (FDD), B66), LTE (TDD), TDD) B38), 1900 MHz (LTE (TDD), B39), 2300 MHz (LTE (TDD), B40), 2500 MHz (LTE (TDD), B41), 2100 MHz (WCDMA, B1), 1900 MHz (WCDMA, B2), 1700 MHz (WCDMA, B4), 2100 MHz (WCDMA, B4), 850 MHz (WCDMA, B5), 850 MHz (WCDMA, B6), 900 MHz (WCDMA, B8), 800 MHZ (WCDMA, B19), 1900 MHZ (TD-SCDMA-GSM/EDGE, PCS), 1800 MHZ (TD-SCDMA-GSM/EDGE, DCS), 900 MHZ (TD-SCDMA-GSM/EDGE, E-GSM), 850 MHZ (TD-SCDMA-GSM/EDGE, GSM)
≤ 150 MBit/s (LTE, DL), ≤ 50 MBit/s (LTE, UL) data rate
Number: 2
Type of connection: SMA (female)
Impedance 50 Ω
SIM interface 1.8-Volt, 3 Volt, Mini SIM (2FF)
LTE CAT4
Country support: Global

Product type: LAN router

Transfer rate: 10 / 100 MBit/s

10/100 Mbps ports: 2 x

Built-in modem: LTE

Interfaces: RJ45

Router features: Built-in Firewall

LAN transfer rate: 100 MBit/s

: IP20

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3572193 Phoenix Contact TC ROUTER 3002T-4G GL LAN router Built-in modem: LTE 10 / 100 MBit/s

User & Safety Instructions

User & Safety Instructions 3572193 Phoenix Contact TC ROUTER 3002T-4G GL LAN router Built-in modem: LTE 10 / 100 MBit/s

Description

Industrial 4G LTE router, world-wide, fallback to 3G (HSPA+) and 2G (EDGE), 2 Ethernet interfaces, firewall, NAT, IPsec and OpenVPN support, 2x SMA-F antenna socket, SMS and emailing documents, 2 digital inputs, 1 digital output.

The TC ROUTER 3002T-4G GL is the successor to TC ROUTER 3002T-4G, article no. 2702528. The TC Mobile ROUTERS enable high-performance data connections at up to 150 Mbps over 4G LTE mobile networks. Thus you create a mobile broadband connection for highly flexible location networking even at all those places, where a cabled Internet connection is not available. With these connections you can transmit sensitive data securely via mobile phone networks. In addition, the TC ROUTER offers high security through IPsec or OpenVPN-Tunnel as well as the integrated Stateful-Packet-Inspection-Firewall. This allows you to protect the application from unauthorized access.
