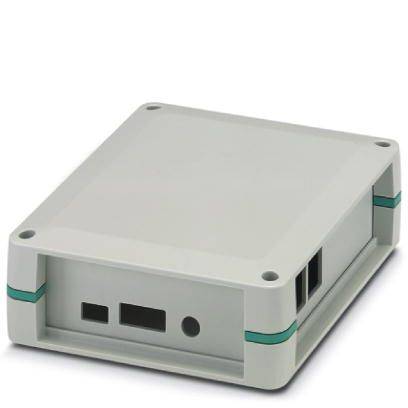

Phoenix Contact UCS 145-125-F-GD-RPI 7035 1019749 Universal enclosure 145 x 125 x 47 PC Grey-white (RAL 7035) 1 pc(s)
Product type
Universal enclosure
Material
PC
IP rating
IP00
Width
145 mm
Height
125 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Ambient temperature (operating): -40 °C - +100 °C.
- Number of PCB slots: 1
- PCB thickness 0.8 mm - 3 mm
- Type of PCB mounting: Screw connection
- Mounting position: Vertical
- Power loss: 11 W
- Product type
Universal enclosure
- Material
PC
IP00
- Factory colour
Grey-white (RAL 7035)
- Type
Flat design
- Width
145 mm
- Height
125 mm
- Content
1 pc(s)

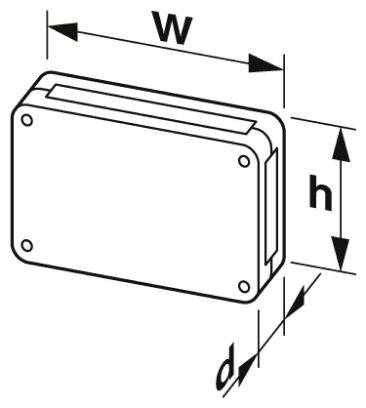

- Dim
(W x H x D) 145 x 125 x 47 mm
- Depth
47 mm
- Type
UCS 145-125-F-GD-RPI 7035
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2141031 Phoenix Contact UCS 145-125-F-GD-RPI 7035 1019749 Universal enclosure 145 x 125 x 47 PC Grey-white (RAL 7035) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2141031 Phoenix Contact UCS 145-125-F-GD-RPI 7035 1019749 Universal enclosure 145 x 125 x 47 PC Grey-white (RAL 7035) 1 pc(s)
Description
High flexibility in the application thanks to modular housing structure. Flexible board mounting, adapts to almost any form factor. Practical individualization possibilities. Reduced logistics costs thanks to compatible components. Supplied as a complete housing with already machined side walls.
