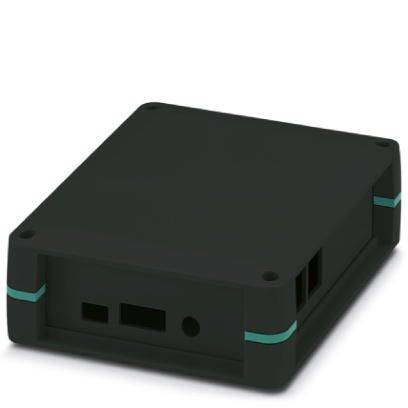

Phoenix Contact UCS 145-125-F-GD-RPI 9005 1019720 Universal enclosure 145 x 125 x 47 PC Black (RAL 9005) 1 pc(s)
Product type
Universal enclosure
Material
PC
IP rating
IP00
Width
145 mm
Height
125 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Ambient temperature (operating): -40 °C - +100 °C.
- Number of PCB slots: 1
- PCB thickness 0.8 mm - 3 mm
- Type of PCB mounting: Screw connection
- Mounting position: Vertical
- Power loss: 11 W
- Product type
Universal enclosure
- Material
PC
IP00
- Factory colour
Black (RAL 9005)
- Type
Flat design
- Width
145 mm
- Height
125 mm
- Content
1 pc(s)

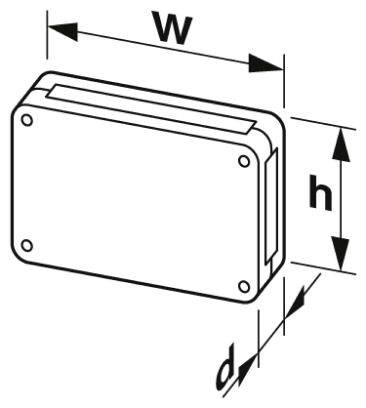

- Dim
(W x H x D) 145 x 125 x 47 mm
- Depth
47 mm
- Type
UCS 145-125-F-GD-RPI 9005
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2140995 Phoenix Contact UCS 145-125-F-GD-RPI 9005 1019720 Universal enclosure 145 x 125 x 47 PC Black (RAL 9005) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2140995 Phoenix Contact UCS 145-125-F-GD-RPI 9005 1019720 Universal enclosure 145 x 125 x 47 PC Black (RAL 9005) 1 pc(s)
Description
High flexibility in the application thanks to modular housing structure. Flexible board mounting, adapts to almost any form factor. Practical individualization possibilities. Reduced logistics costs thanks to compatible components. Supplied as a complete housing with already machined side walls.
