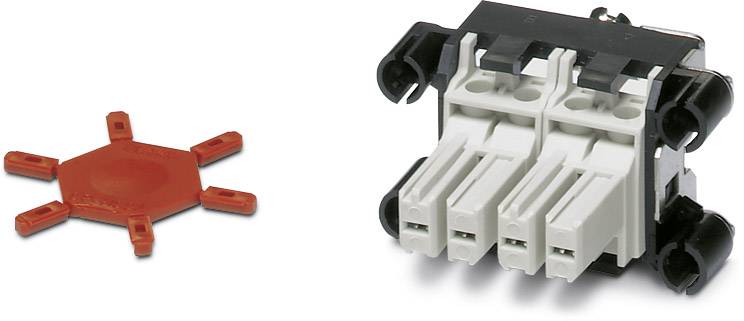

Image similar
Phoenix Contact VC-TR1/2M-PEA-S22-SET Connector insert set Content: 5 pc(s)
Product type
Connector insert set
Connection
Screws
Number of pins
3
Features
suitable for bush enclosures
tin-plated
universal connectors
Series
VC-TR1
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 5 pc(s))
Total (€ 9.20 / piece)
€ 45.99
incl. VAT
14-day return policy included
Highlights & Details
Contact insert set VC-TR1/2M-PEA-S22-SET
- VC-TR 1/2 M-PEA-S22-SET
- Industrial packaging with 5 pieces
Technical specifications
- Product type
Connector insert set
- Features
suitable for bush enclosures
tin-plated
universal connectors
- Series
VC-TR1
- Leading contact (PE)
Yes
- Connection
Screws
- Number of pins
3
- Core cross section (max.)
4 mm²
- Core cross section (min.)
0.2 mm²
- Total no. of pins
3 + PE
- Content
5 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 774211 Phoenix Contact VC-TR1/2M-PEA-S22-SET Connector insert set Content: 5 pc(s)
User & Safety Instructions
User & Safety Instructions 774211 Phoenix Contact VC-TR1/2M-PEA-S22-SET Connector insert set Content: 5 pc(s)
Description
Contact insert set for sleeve side, sleeve frame with PE, 4 fixing screws, 2-pos. contact inserts preassembled, 6 coding profiles
Scope of delivery
- Sleeve frame with PE, 4 mounting screws, 2-pole contact inserts pre-assembled, 6 Kodierprofile
