Name: Piher PT10LV10-503A2020-S Carbon film pot Enclosed linear 0.15 W 50 kΩ 220 ° 235 ° 1 pc(s)
Brand: Piher
SKU: 3523549
Availability: InStock

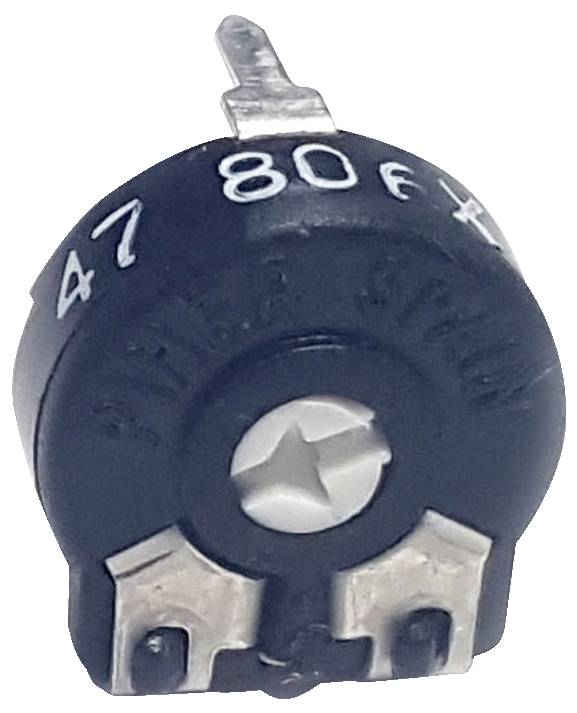

Black variable resistor with white text '47' on top, adjustable metal screw on top, and two metal connectors at the bottom.

Product type

Carbon film pot

Resistance

50 kΩ

Resistance characteristic

linear

Power rating

0.15 W

Mechanical angle

235 °

Datasheet (PDF)

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

519 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 0.6036 / piece)

€ 0.60

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Piher e-regulator horizontal RM5/10 50K

Our service for you

Technical specifications

ESD Packaging: No ESD
Series PT10
Design: Horizontal
Diameter, housing 10.3 mm
Axis: Arrow slot
Resistance value 50 kOhm
Resistance unit: KOhm
Resistance value_1: 50
Resistance tolerance: ±20 %
Resistance curve: Linear
Rated output: 0.15 W
Max voltage 200 V
Confirmation: From above
Mechanical rotation angle 235 °
Electrical angle of rotation 220 °
Stop strength 5 Ncm
Torque 2 Ncm

Product type: Carbon film pot

Potentiometer features: Enclosed

Resistance: 50 kΩ

Resistance characteristic: linear

Power rating: 0.15 W

Cut-off voltage: 200 V

Electrical angle: 220°

Mechanical angle: 235°

Operation type: top

Tolerance ±: 20 %

Height: 9.5 mm

CS: 10 mm

Content: 1 pc(s)

Type: PT10LV10-503A2020-S

RoHS-compliant: Yes

Outside Ø: 10.3 mm

Variants(All information include VAT, plus shipping costs)

Mechanical angle

Operation type

Resistance

Piher PT10LH01-103A2020-S Carbon film pot Enclosed linear 0.15 W 10 kΩ 220 ° 235 ° 1 pc(s) Piece

Item no:3523540

Fast track dispatch on Thu 29 Oct

130 Piece(s)Conrad Electronic

235 °

side

10 kΩ

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.6036^*

Piher PT10LH01-253A2020-S Carbon film pot Enclosed linear 0.15 W 25 kΩ 220 ° 235 ° 1 pc(s) Piece

Item no:3523539

Fast track dispatch on Thu 29 Oct

140 Piece(s)Conrad Electronic

235 °

side

25 kΩ

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.6036^*

Piher PT10LH01-502A2020-S Carbon film pot Enclosed linear 0.15 W 5 kΩ 220 ° 235 ° 1 pc(s)

Item no:3527540

Fast track dispatch on Thu 29 Oct

18 Piece(s)Conrad Electronic

235 °

side

5 kΩ

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.6036^*

Piher PT10LH01-503A2020-S Carbon film pot Enclosed linear 0.15 W 50 kΩ 220 ° 235 ° 1 pc(s) Piece

Item no:3523541

Fast track dispatch on Thu 29 Oct

134 Piece(s)Conrad Electronic

235 °

side

50 kΩ

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.6036^*

Piher PT10LV10-101A2020-S Carbon film pot Enclosed linear 0.15 W 100 Ω 220 ° 235 ° 1 pc(s)

Item no:3523542

Fast track dispatch on Thu 29 Oct

34 Piece(s)Conrad Electronic

235 °

top

100 Ω

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.6036^*

Piher PT10LV10-102A2020-S Carbon film pot Dustproof linear 0.15 W 1 kΩ 220 ° 235 ° 1 pc(s)

Item no:3523544

Fast track dispatch on Thu 29 Oct

111 Piece(s)Conrad Electronic

235 °

1 kΩ

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.6036^*

Piher PT10LV10-103A2020-S Carbon film pot Enclosed linear 0.15 W 10 kΩ 220 ° 235 ° 1 pc(s)

Item no:3523547

Fast track dispatch on Thu 29 Oct

166 Piece(s)Conrad Electronic

235 °

10 kΩ

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.6036^*

Piher PT10LV10-104A2020-S Carbon film pot Enclosed linear 0.15 W 100 kΩ 220 ° 235 ° 1 pc(s)

Item no:3523550

Fast track dispatch on Thu 29 Oct

336 Piece(s)Conrad Electronic

235 °

100 kΩ

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.6036^*

Piher PT10LV10-105A2020-S Carbon film pot Enclosed linear 0.15 W 1 MΩ 220 ° 235 ° 1 pc(s)

Item no:3523552

Fast track dispatch on Thu 29 Oct

76 Piece(s)Conrad Electronic

235 °

top

1 MΩ

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.6036^*

Piher PT10LV10-251A2020-S Carbon film pot Enclosed linear 0.15 W 250 Ω 220 ° 235 ° 1 pc(s) Piece

Item no:3523543

Fast track dispatch on Thu 29 Oct

54 Piece(s)Conrad Electronic

235 °

250 Ω

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.6036^*

Documents & Downloads

Datasheet

Datasheet 3523549 Piher PT10LV10-503A2020-S Carbon film pot Enclosed linear 0.15 W 50 kΩ 220 ° 235 ° 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3523549 Piher PT10LV10-503A2020-S Carbon film pot Enclosed linear 0.15 W 50 kΩ 220 ° 235 ° 1 pc(s)

Description

Trimmer PT10Lv horizontal RM5/10mm

This text is machine translated.

Features

• Support made of high-quality polyester film
• Fully enclosed housing prevents dust, colophonium from entering and protects against other harmful influences
• Double sander, 2-way bearing
• Great stability makes multiple use possible as a shift rotational resistance
• Slider position visible by arrow
• Resistant to cleaning agents, ultrasonic cleaning possible

Description

Trimmer PT10Lv horizontal RM5/10mm

This text is machine translated.

Features

• Support made of high-quality polyester film
• Fully enclosed housing prevents dust, colophonium from entering and protects against other harmful influences
• Double sander, 2-way bearing
• Great stability makes multiple use possible as a shift rotational resistance
• Slider position visible by arrow
• Resistant to cleaning agents, ultrasonic cleaning possible
