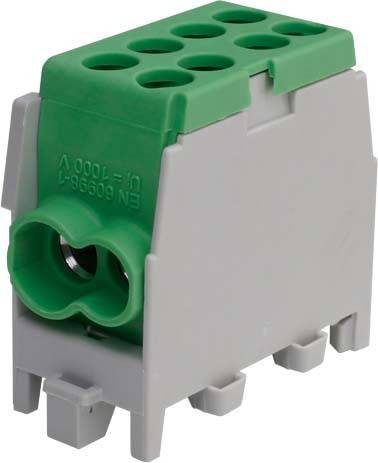

Pollmann Elektrotechnik 2080138 2080138 Tap terminal flexible: 1.5-25 mm² fixed: 1.5-16 mm² Number of pins: 1 Content: 1
Product type
Tap terminal
Cross section (flexible) (min.)
1.5 mm²
Cross section (flexible) (max.)
25 mm²
Cross section (inflexible) (min.)
1.5 mm²
Cross section (inflexible) (max.)
16 mm²
EAN:
Part number:
Item no:
Technical specifications
- Number of poles: 1
- Connection type: Screws
- DIN rail mounting
- Scoop-proof: Yes
- Height: 40.2 mm
- Width 20 mm
- Depth: 43.9 mm
- Product type
Tap terminal
- Cross section (flexible) (min.)
1.5 mm²
- Cross section (flexible) (max.)
25 mm²
- Cross section (inflexible) (min.)
1.5 mm²
- Cross section (inflexible) (max.)
16 mm²
- Number of pins
1
- Factory colour
Multicolour
- Content
1 pc(s)
- Dim
(W x H x D) 20.00 x 40.20 x 43.90 mm
- Manufacturer part #
2080138
- Connection
Screws
- Width
20.00 mm
- Depth
43.90 mm
- Height
40.20 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3134030 Pollmann Elektrotechnik 2080138 2080138 Tap terminal flexible: 1.5-25 mm² fixed: 1.5-16 mm² Number of pins: 1 Content: 1
Description
Pollmann branch terminal green HLAK25-1/2M2#2080138
