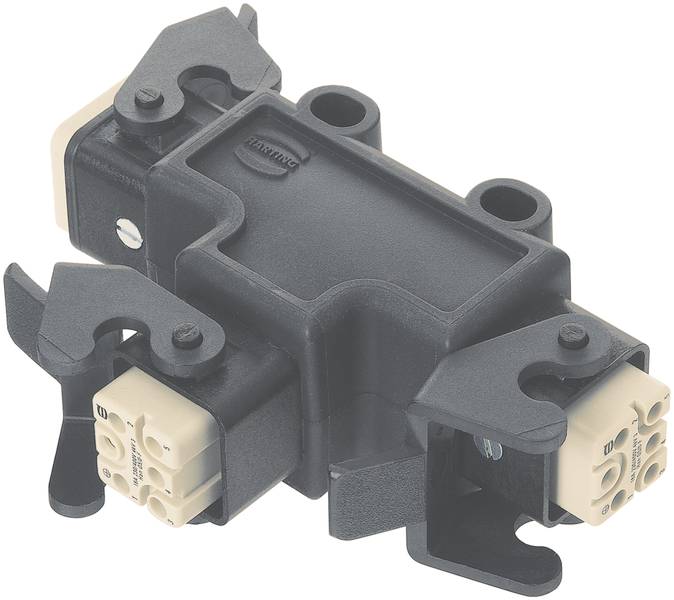

Power splitter 09120084753 HARTING Content: 1 pc(s) Power splitter
Product type
Power splitter
Number of pins
5
Type
09 12 008 4753
Manufacturer part #
09120084753
Total no. of pins
5
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Component: Power distributor
- Number of contacts: 5
- Rated current 16 A
- Insulation resistance >108 Ω
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Material contacts: Copper alloy
- Material flammability class acc. To UL 94: V-0
- Standards IEC 60664-1; IEC 61984
- Net weight: 89 g
- Dimensioning surge voltage: 4 kV
- Pollution level 3
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Material locking: Polyamide (PA)
- Description: With 3x HAN® Q 5/0;in HAN® 3 A mounting case
- Protection class according to IEC 60529: IP44; IP67 with sealing screw 09 20 000 9918
- PE contact: Yes
- Housing series: HAN-Power® T.
- Material housing: Polyamide (PA)
- Colour of housing: RAL 9005 (jet black)
- Material sealing: NBR
- Rated voltage according to UL: 600 V.
- Rated voltage conductor-earthing 230 V
- Rated voltage conductor-conductor: 400 V
- Type
09 12 008 4753
- Product type
Power splitter
- Manufacturer part #
09120084753
- Number of pins
5
- Total no. of pins
5
- Content
1 pc(s)
Black
FALSE
Plastic
Other
Documents & Downloads
Datasheet
Datasheet 3008056 Power splitter 09120084753 HARTING Content: 1 pc(s) Power splitter
Datasheet 3008056 Power splitter 09120084753 HARTING Content: 1 pc(s) Power splitter
User & Safety Instructions
User & Safety Instructions 3008056 Power splitter 09120084753 HARTING Content: 1 pc(s) Power splitter
Description
Power distributor with 3x HAN Q 5/0, in HAN 3 A housing attachment, contacts: 5, material housing: Polyamide (PA), RAL 9005 (jet black)
