PTR Hartmann 1010-A-0.8NE-AU-1.5 Precision test tip
EAN:
Part number:
Item no:
Total (€ 3.99 / piece)
€ 3.99
incl. VAT
14-day return policy included
Technical specifications
- Continuity Resistance: ≤ 20 mΩ
- Product type
Precision test tip

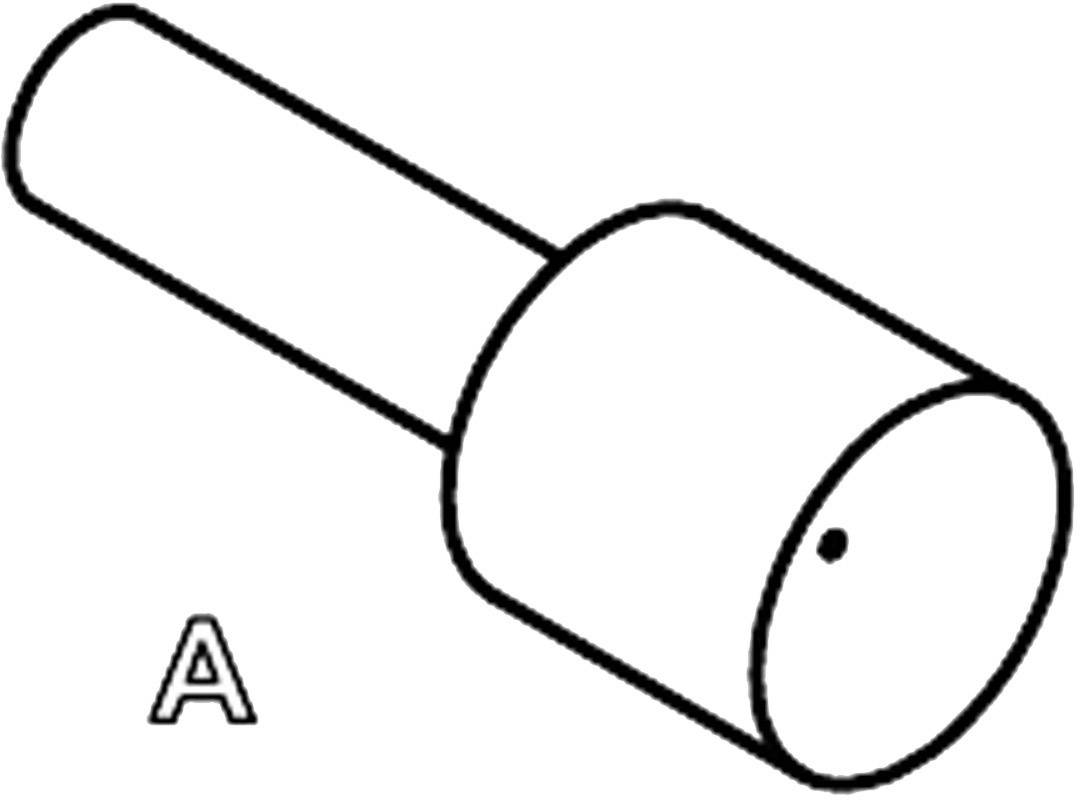

- Type
A

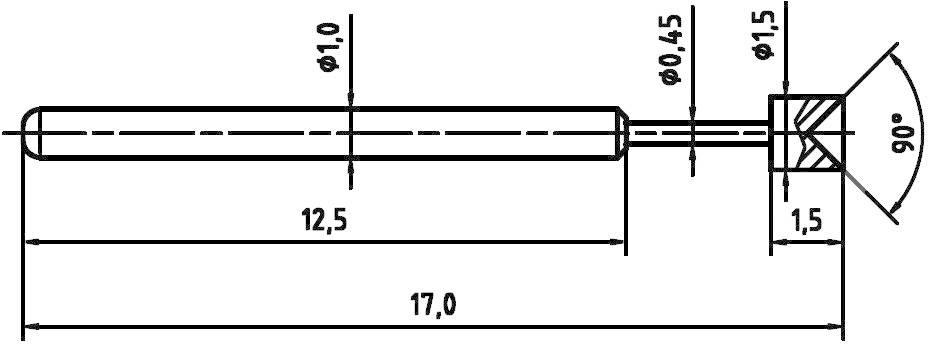

- Pin length
17 mm
- Nominal current
2 A
- Nominal current - rounded value
2 A
- Spring force
0.8 N
- Pitch of spring
3 mm
- CS
1.91 mm
- RoHS-compliant
Yes
- Pin Ø
1 mm
- Type
1010-A-0.8NE-AU-1.5
- Refining
Gold
- Resistance
≤20 mΩ
- Nominal current (details)
2 A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 737007 PTR Hartmann 1010-A-0.8NE-AU-1.5 Precision test tip
Description
Easy guided Precision Measuring spring contact for the assemblies and printed circuit board test.
Hints
Type coding:
xxxx (Series) - xx (head shape) - x.xN (contact button) - xx (processing) - xx.xx (head-Ø in mm/head material)
Processing: AU = Gold, RH = Rhodium, NI = Nickel; Head material: M = Brass, C = Beryllium bronze.
