Buy PTR Hartmann 5110/S.02-D-1.2NE-AU-2.3C Precision test tip

A long, smooth wooden rod, uniform in colour, without visible markings or decorations.

Image similar

A black outline of a blunt tool with a cylindrical shaft and a round, flat front surface. Letter 'D' beside it.

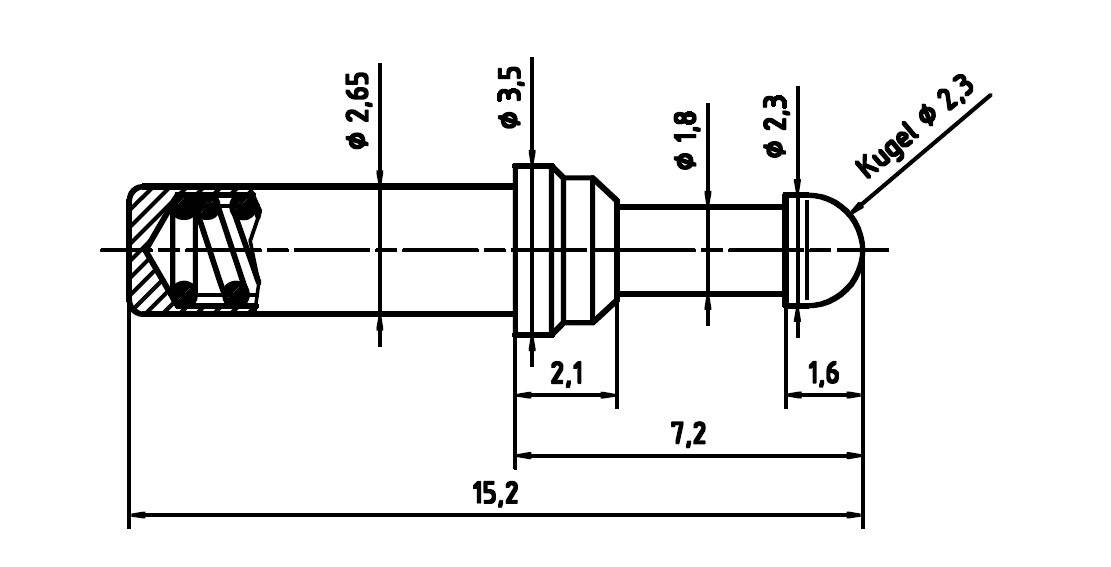

Technical drawing of a plug with dimensions in millimetres: Total length 15.2, diameter varies from 1.8 to 2.65, ball 2.3.

1/3

Image similar

5 Piece(s) (Only while stocks last)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 3.18 / piece)

€

Only 5 Piece(s) available

Report legal concerns

Technical specifications

Continuity Resistance: ≤ 10 mΩ

Nominal current: 10 A

Nominal current - rounded value: 10 A

Refining: Gold

Type: D

Contact material: Beryllium copper

Type: 5110/S.02-D-1.2NE-AU-2.3C

CS: 4.00 mm

Pitch of spring: 3.5 mm

Pin Ø: 3.5 mm

Pin length: 15.2 mm

Spring force: 3.5 N

Resistance: ≤10 mΩ

Nominal current (details): 10 A

RoHS-compliant: Yes

Product type: Precision test tip

Description

Easy guided Precision Measuring with spring contact for use in loading shells. Consisting of guide housing with spring contact pin with probe. The sleeve is ordered separately, and is installed in a board or Plexiglas disk to hold the test jack. This allows the test jack to be removed or replaced easily.

Hints

Type coding:

xxxx (Series) - xx (head shape) - x.xN (contact button) - xx (processing) - xx.xx (head-Ø in mm/head material)

Processing: AU = Gold, RH = Rhodium, NI = Nickel; Head material: M = Brass, C = Beryllium bronze.
