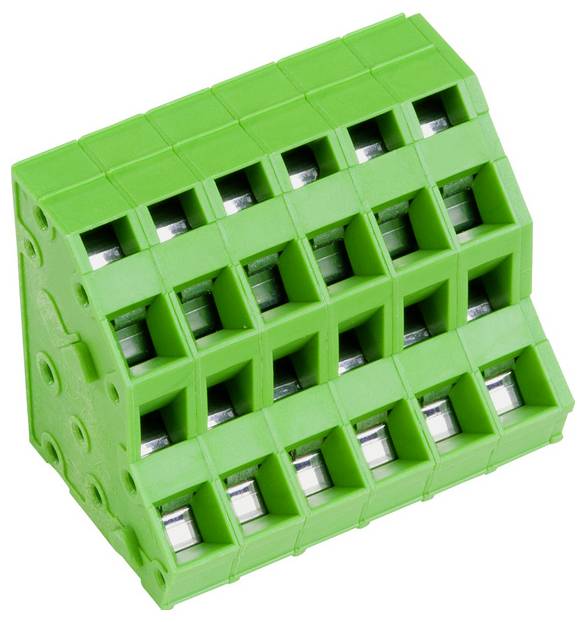

PTR Hartmann 53750090210D Print terminal 2.5 mm² Number of pins 9 Green 1 pc(s) Piece
Packaging type
Piece
Product type
Print terminal
CS
5.08 mm
Pins per row
9
Number of pins
9
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
- Content 1 pc(s)
Our service for you
Technical specifications
- Packaging type
Piece
- Type
AKZ3750/9VP-5.08-GRÜN
- Product type
Print terminal
- Features
+ staggered tiers
- CS
5.08 mm
- Pins per row
9
- Number of pins
9
- Min. stripping length
6.0 mm
- Stripping length (max.)
6.0 mm
- Connection
Spring-loaded heavy duty connector
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Connector orientation
At an angle (to the PCB)
- Contact material
Copper alloy
- Enclosure material
PA 6.6
- Factory colour
Green
- Manufacturer part #
53750090210D
- Content
1 pc(s)
- Length
47.42 mm
