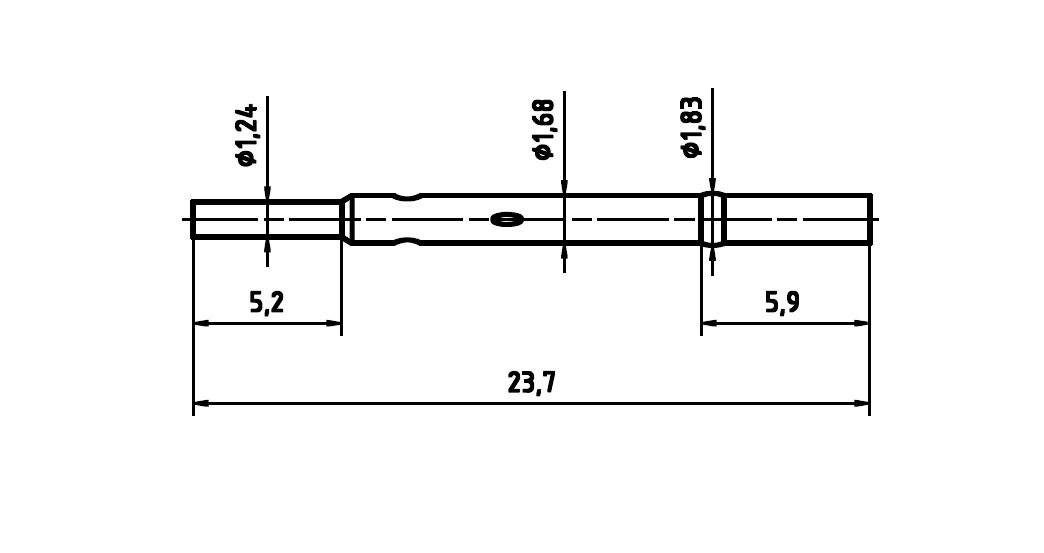

Technical drawing of a cylindrical component with length and diameter specifications: Total length 23.7 mm, various diameters at 12.4 mm, 1.68 mm and 1.83 mm, as well as dimensioning of 5.2 mm and 5.9 mm.

Stroke drawing/circuit diagram

Technical drawing of a cylindrical component with length and diameter specifications: Total length 23.7 mm, various diameters at 12.4 mm, 1.68 mm and 1.83 mm, as well as dimensioning of 5.2 mm and 5.9 mm.

Technical drawing of a component with a cylindrical form and various sectional modules, characterised by detailed contours.

1/2

Stroke drawing/circuit diagram

PTR Hartmann

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Total (€ 0.75 / piece)

€ 0.75

plus VAT.

Report legal concerns

Technical specifications

Continuity Resistance: ≤ 30 mΩ

Nominal current: 3 A

Nominal current - rounded value: 3 A

Refining: Gold

Type: H 1015 C

CS: 2.54 mm

Pitch of spring: 4.4 mm

Pin Ø: 1.37 mm

Pin length: 25.4 mm

Spring force: 1.5 N

Resistance: ≤30 mΩ

Nominal current (details): 3.0 A

RoHS-compliant: Yes

Product type: Precision test tip sleeve

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 737213 PTR Hartmann H 1015 C Precision test tip sleeve

Description

Test jacks Series 1015. Spring contacts for assembly and PCB tests. Sleeve with crimp or solder connection for Series 1015.
