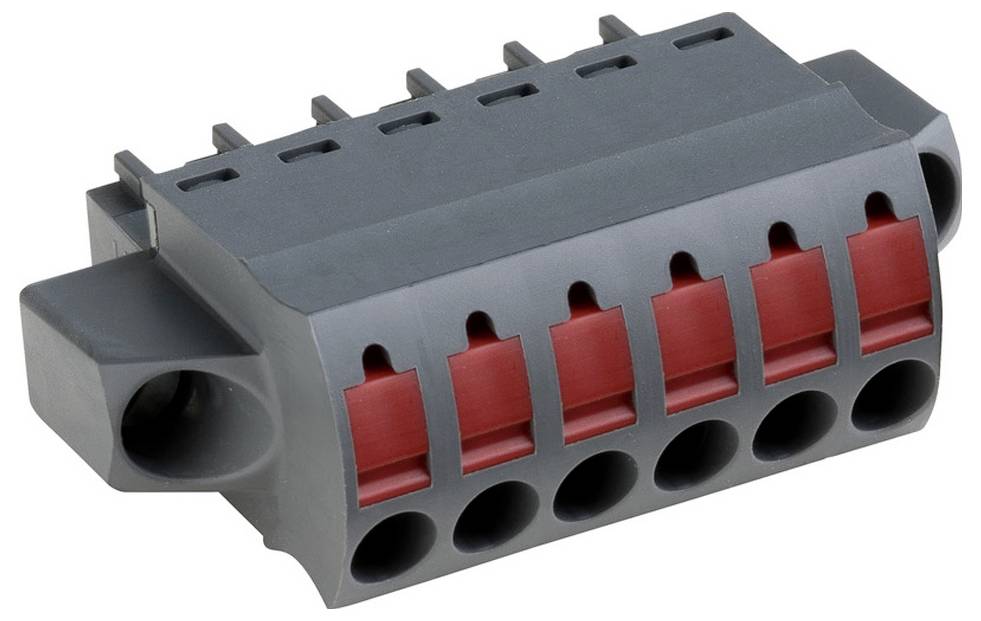

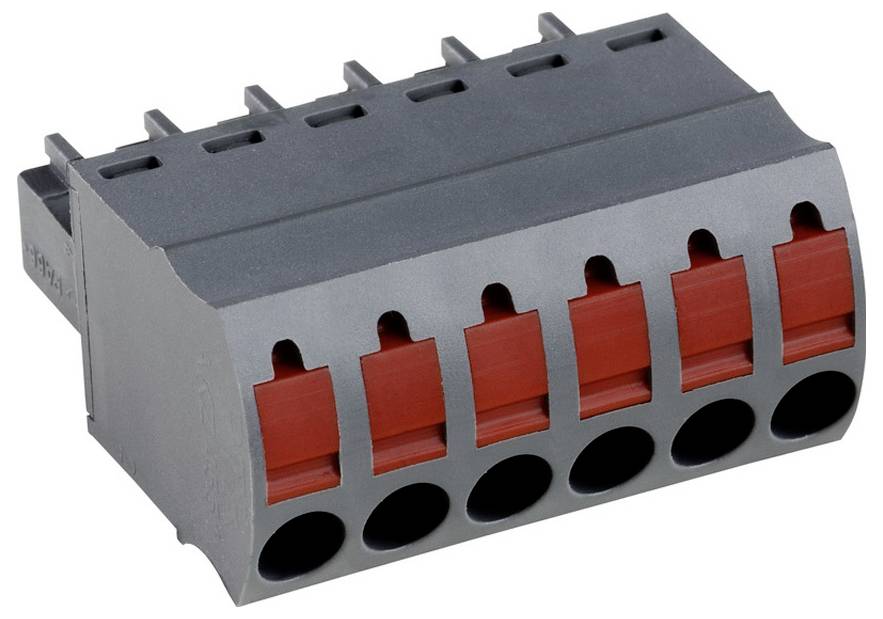

Image similar
PTR Hartmann PCB connector Total number of pins 10 Contact spacing: 3.81 mm 54551100421D 1 pc(s) Single
Product type
PCB connector
Connector type
PCB connector
CS
3.81 mm
Total number of pins
10
Packaging type
Single
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
- Content: 1 pc(s)
- Total number of pins: 10
Our service for you
Technical specifications
- Packaging type
Single
- Product type
PCB connector
- Connector type
PCB connector
- Connector system
wire-to-board
- Features
encodable
- CS
3.81 mm
- Total number of pins
10
- Content
1 pc(s)
- Stripping length (max.)
10.0 mm
- Connection
Push-in spring-loaded terminal
- Case material
PA 6.6
- Manufacturer part #
54551100421D
- Factory colour
Basalt grey
- Contact material
Copper alloy
- Length
38.10 mm
- max. cross section
1.5 mm²
- Min. cross section
0.14 mm²
- RoHS-compliant
Yes
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Type
AKZ4551/10KD-3.81-BASALTGRAU
Documents & Downloads
Datasheet
Datasheet 3590321 PTR Hartmann PCB connector Total number of pins 10 Contact spacing: 3.81 mm 54551100421D 1 pc(s) Single
User & Safety Instructions
User & Safety Instructions 3590321 PTR Hartmann PCB connector Total number of pins 10 Contact spacing: 3.81 mm 54551100421D 1 pc(s) Single
Description
this an historic product which is not available, thus not updated anymore
