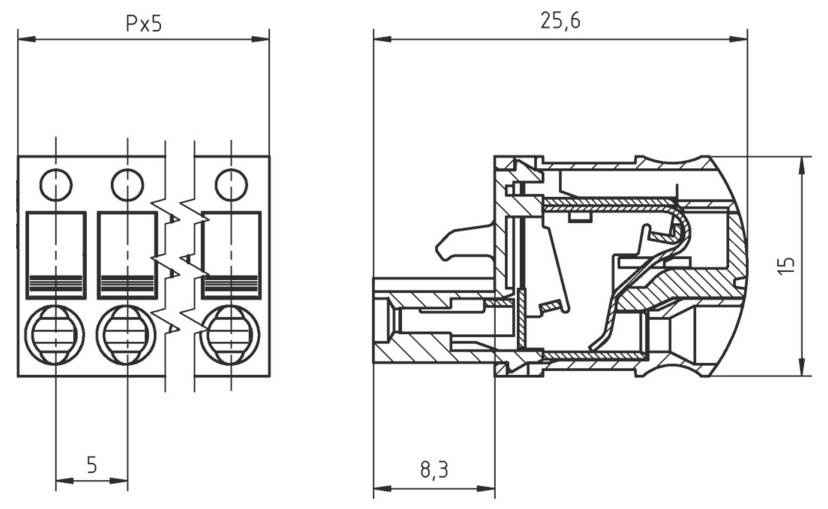

Image similar
PTR Hartmann PCB connector Total number of pins 8 Contact spacing: 5 mm 54951080401D 1 pc(s)
Product type
PCB connector
CS
5 mm
Total number of pins
8
Connector system
wire-to-board
Features
+ push-in spring bracket
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
- Content: 1 pc(s)
- Total number of pins: 8
Our service for you
Technical specifications
- Product type
PCB connector
- Connector system
wire-to-board
- Features
+ push-in spring bracket
- CS
5 mm
- Total number of pins
8
- Content
1 pc(s)
- Stripping length (max.)
12.0 mm
- Connection
Push-in spring-loaded terminal
- Case material
PA 6.6
- Manufacturer part #
54951080401D
- Factory colour
Basalt grey
- Contact material
Copper alloy
- Length
40.00 mm
- max. cross section
2.5 mm²
- Min. cross section
0.2 mm²
- RoHS-compliant
Yes
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Type
AK4951/8KD-5.0-BASALTGRAU
Documents & Downloads
Datasheet
Datasheet 3590360 PTR Hartmann PCB connector Total number of pins 8 Contact spacing: 5 mm 54951080401D 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3590360 PTR Hartmann PCB connector Total number of pins 8 Contact spacing: 5 mm 54951080401D 1 pc(s)
Description
this an historic product which is not available, thus not updated anymore
