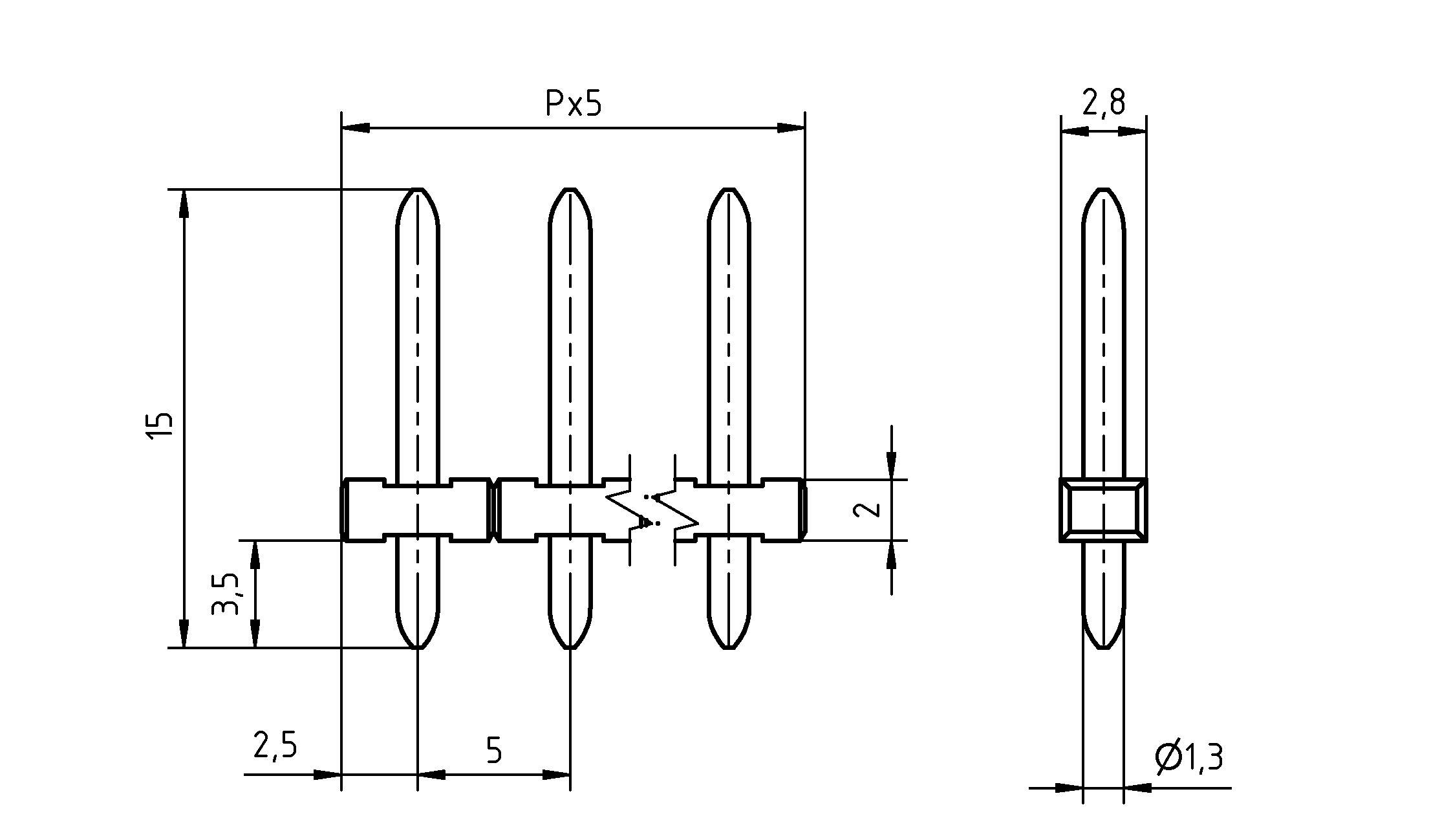

Image similar
PTR Hartmann Pin strip (standard) Total number of pins 7 Contact spacing: 5 mm 50133075031G 1 pc(s)
Product type
Pin strip (standard)
CS
5 mm
Total number of pins
7
Features
for THR soldering
Content
1 pc(s)
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
- Content: 1 pc(s)
- Total number of pins: 7
Our service for you
Technical specifications
- Product type
Pin strip (standard)
- Features
for THR soldering
- CS
5 mm
- Total number of pins
7
- Content
1 pc(s)
- Connection
THR
- Case material
LCP
- Manufacturer part #
50133075031G
- Factory colour
Black
- Contact material
Brass
- Length
35.00 mm
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Type
STL133/7-5.0-V-P3.5-BK-HT
Documents & Downloads
Datasheet
Datasheet 3590618 PTR Hartmann Pin strip (standard) Total number of pins 7 Contact spacing: 5 mm 50133075031G 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3590618 PTR Hartmann Pin strip (standard) Total number of pins 7 Contact spacing: 5 mm 50133075031G 1 pc(s)
Description
this an historic product which is not available, thus not updated anymore
