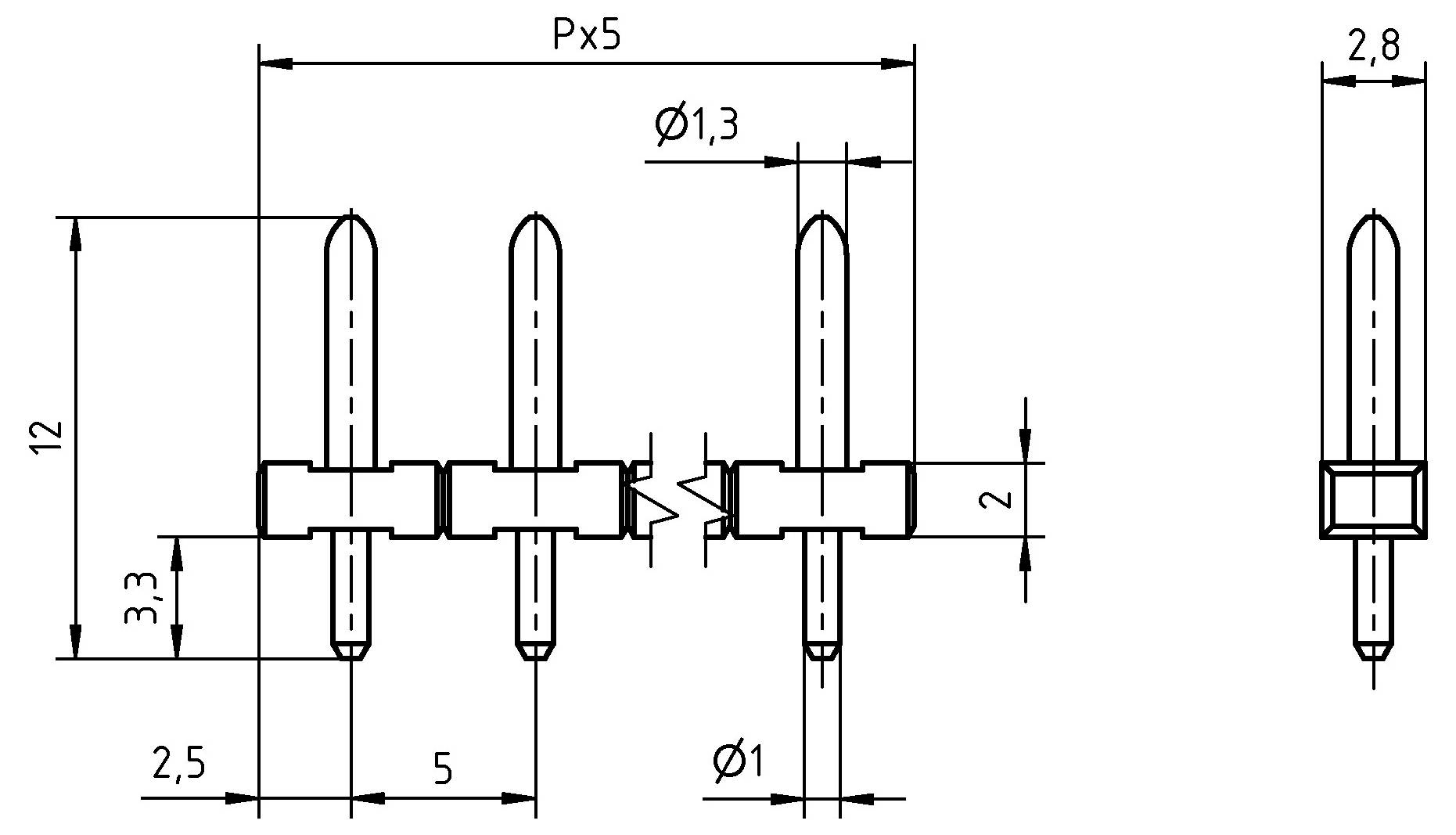

Image similar
PTR Hartmann Pin strip (standard) Total number of pins 8 Contact spacing: 5 mm 50132085031E 1 pc(s)
Product type
Pin strip (standard)
CS
5 mm
Total number of pins
8
Features
for THR soldering
Pins per row
8
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
- Content: 1 pc(s)
- Total number of pins: 8
Our service for you
Technical specifications
- Product type
Pin strip (standard)
- Features
for THR soldering
- CS
5 mm
- Pins per row
8
- Total number of pins
8
- Content
1 pc(s)
- Connection
THR
- Case material
LCP
- Manufacturer part #
50132085031E
- Factory colour
Black
- Contact material
Brass
- Connector contact surface
Brass
- Length
40.00 mm
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Type
STL132/8-5.0-V-P3.3-BK-HT
Documents & Downloads
Datasheet
Datasheet 3590605 PTR Hartmann Pin strip (standard) Total number of pins 8 Contact spacing: 5 mm 50132085031E 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3590605 PTR Hartmann Pin strip (standard) Total number of pins 8 Contact spacing: 5 mm 50132085031E 1 pc(s)
Description
this an historic product which is not available, thus not updated anymore
