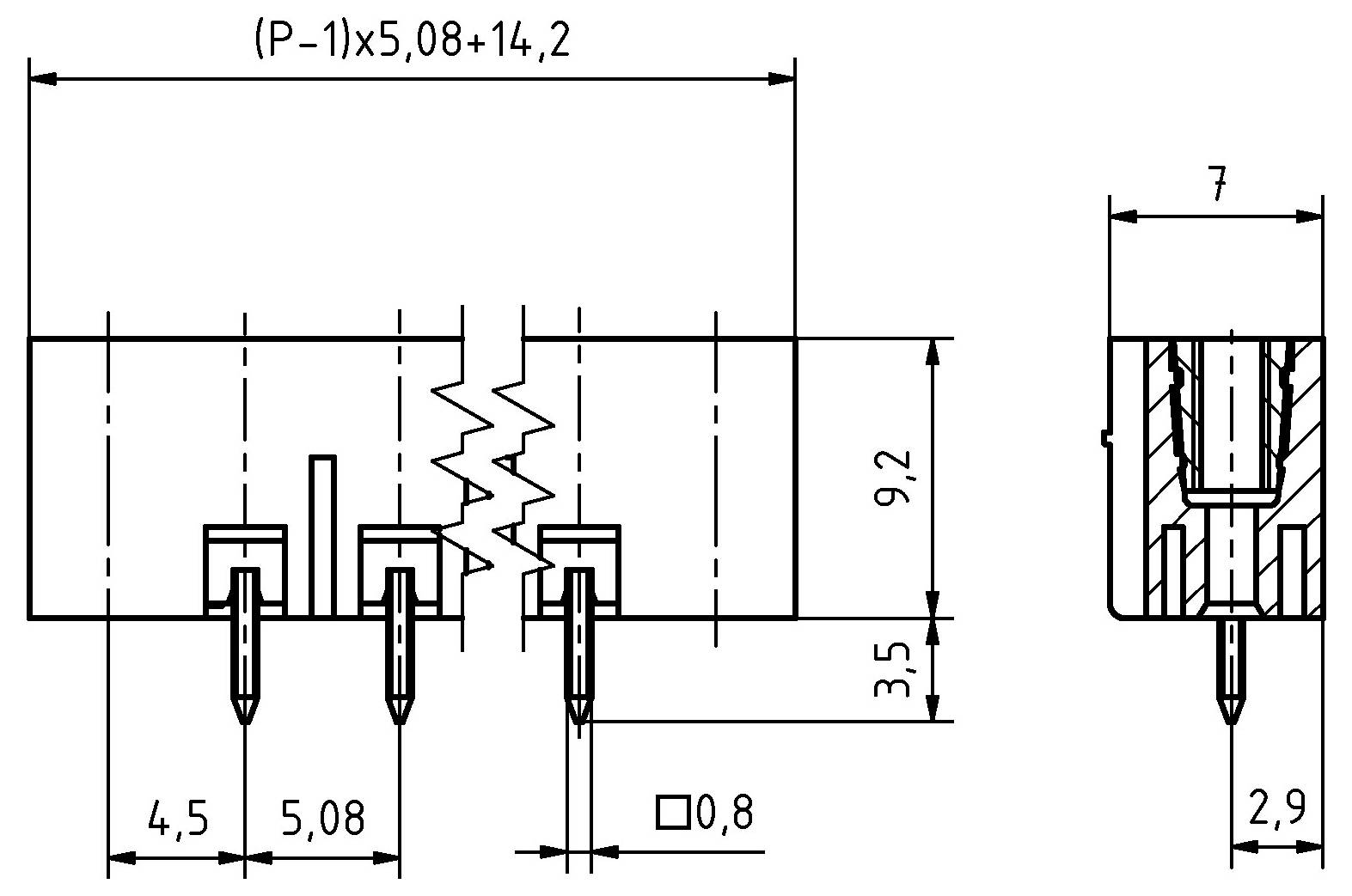

Image similar
PTR Hartmann Pin strip (standard) Total number of pins 9 Contact spacing: 5.08 mm 51520096125D 1 pc(s) Piece
Product type
Pin strip (standard)
CS
5.08 mm
Total number of pins
9
Packaging type
Piece
Features
+ sleeve
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
- Content: 1 pc(s)
- Total number of pins: 9
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Pin strip (standard)
- Features
+ sleeve
- CS
5.08 mm
- Pins per row
9
- Total number of pins
9
- Content
1 pc(s)
- Case material
PA 6.6
- Manufacturer part #
51520096125D
- Factory colour
Green
- Contact material
Copper alloy
- Length
49.64 mm
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Type
STLZ1520/9F-5.08-V-GRÜN
Documents & Downloads
Datasheet
Datasheet 3590568 PTR Hartmann Pin strip (standard) Total number of pins 9 Contact spacing: 5.08 mm 51520096125D 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3590568 PTR Hartmann Pin strip (standard) Total number of pins 9 Contact spacing: 5.08 mm 51520096125D 1 pc(s) Piece
Description
this an historic product which is not available, thus not updated anymore
