Name: Quadrios 25O201 LED set Red Circular 3 mm 700 mcd 20 mA 2.0 V Package
Brand: Quadrios
SKU: 3450072
Availability: InStock

Highlights & Details

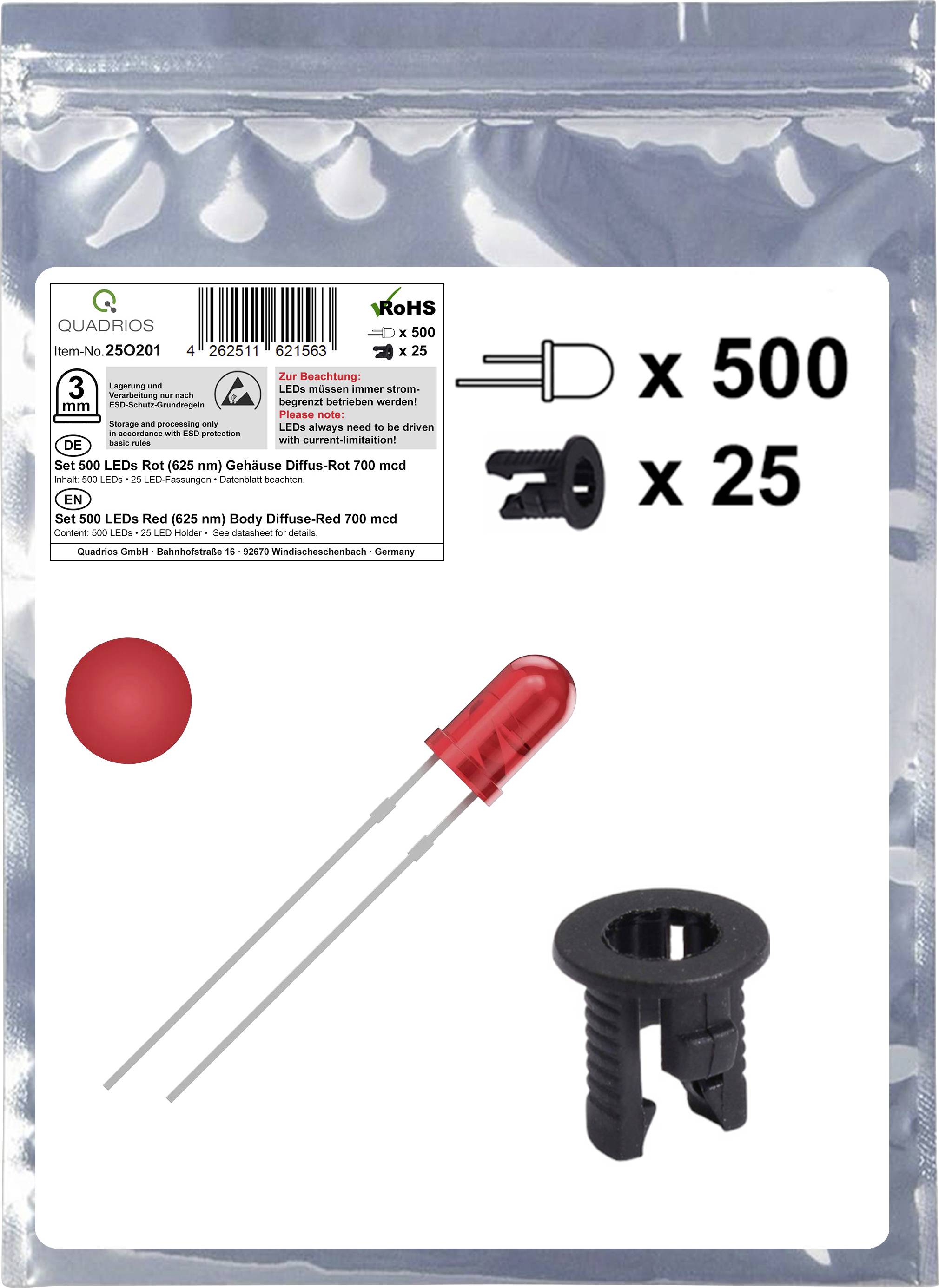

LED set 500 pieces, red housing 3 mm diffused-red with 25 LED clips

Red LEDs 3 mm including LED clips 500 pieces
LED clip holder made of 25 black plastic

Documents & Downloads

Datasheet

Datasheet 3450072 Quadrios 25O201 LED set Red Circular 3 mm 700 mcd 20 mA 2.0 V Package

User & Safety Instructions

User & Safety Instructions 3450072 Quadrios 25O201 LED set Red Circular 3 mm 700 mcd 20 mA 2.0 V Package

Description

These wired LEDs are ideally suited for common applications and experiments in semiconductor light and display applications. As a common standard component in grid dimension 2.54, the connection of the cathode, to which the negative potential is applied, is shortened. Light diodes must always be operated in forward direction and current limit to the maximum permissible milliampere value to prevent damage. This can be achieved with a constant current source or a suitable series resistor. LEDs are generally characterized by a high degree of efficiency, low energy consumption, long life/robustness and a directed light emission.
25 suitable LED clip sockets for snap-in mounting types are also included, with which LEDs can be mounted in front panels.
Note:
All standard LED chips require a current-limiting resistor/constant current power source.

This text is machine translated.

Scope of delivery

500 x LED red housing 3 mm diffuse red with 25 LED clips

Hints

All standard LED chips require a current-limiting resistor/constant current power source.

Description

These wired LEDs are ideally suited for common applications and experiments in semiconductor light and display applications. As a common standard component in grid dimension 2.54, the connection of the cathode, to which the negative potential is applied, is shortened. Light diodes must always be operated in forward direction and current limit to the maximum permissible milliampere value to prevent damage. This can be achieved with a constant current source or a suitable series resistor. LEDs are generally characterized by a high degree of efficiency, low energy consumption, long life/robustness and a directed light emission.
25 suitable LED clip sockets for snap-in mounting types are also included, with which LEDs can be mounted in front panels.
Note:
All standard LED chips require a current-limiting resistor/constant current power source.

This text is machine translated.
