Quadrios 26P133 26P133 Metal film resistor (set) Axial lead 0.25 W 0.01 % 500 pc(s)
EAN:
Part number:
Item no:
Product type
Metal film resistor (set)
Power rating
0.25 W
Content
500 pc(s)
Type
Axial lead
Tolerance ±
0.01 %
Datasheet (PDF)
Number (Package size 500 pc(s))
Total (€ 23.99 / piece)
€ 23.99
incl. VAT
14-day return policy included
Highlights & Details

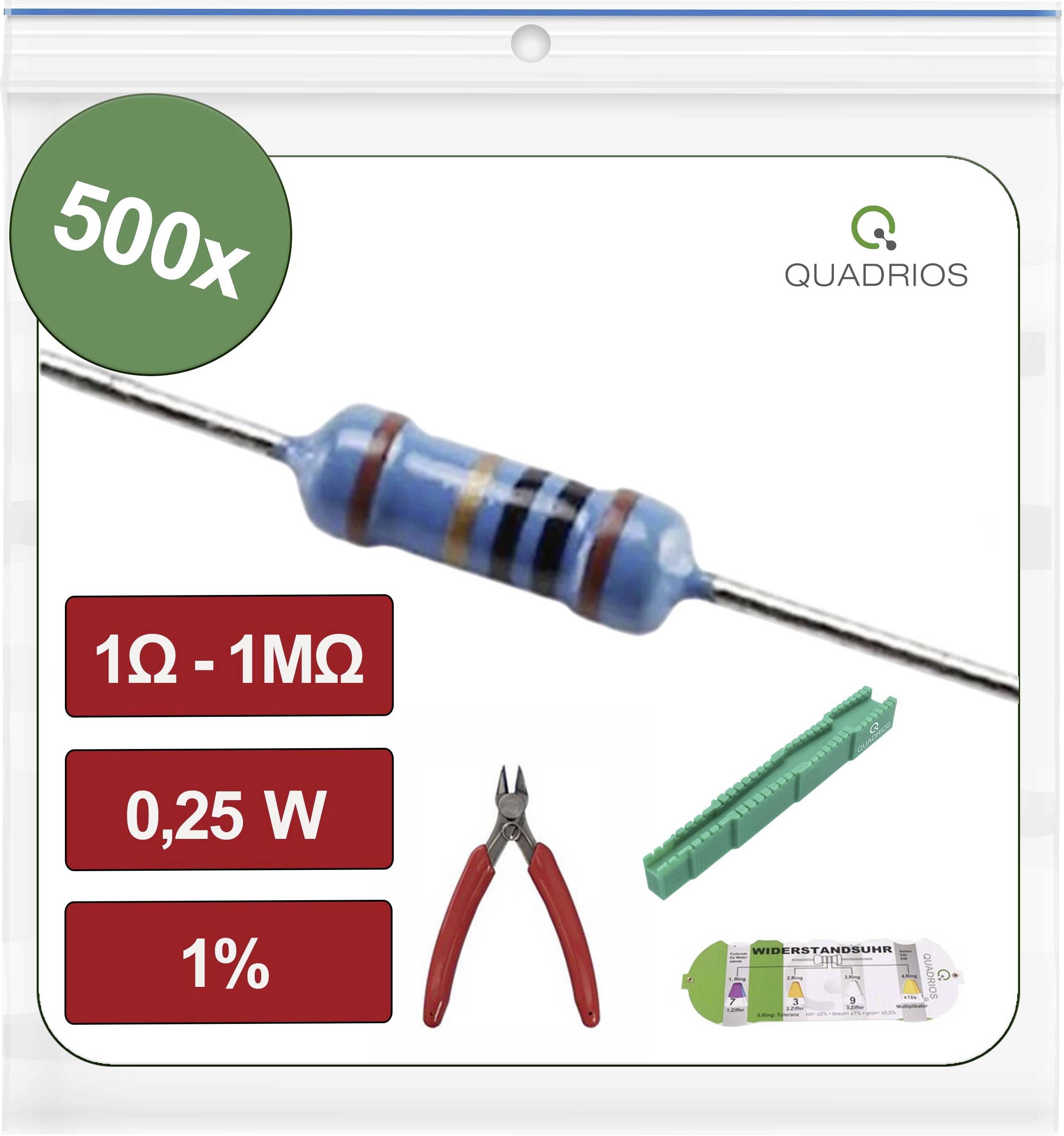

Metal Film Resistors Set 500 pcs 1-1M Ohm 0.25 W with bending unit, print pliers and resistance watch
- Resistance set with a total of 500 resistances, resistance watch, bending device and PCB pliers
- Discreet and space-saving, packed and marked in re-closable pressure-lock bags
- Resistance values 1 Ω to 1 MΩ in metal film technology 0.25 W.
Technical specifications
- Product type
Metal film resistor (set)
- Type
Axial lead
- Power rating
0.25 W
- Tolerance ±
0.01 %
- Length
6 mm
- (Ø)
2.3 mm
- Content
500 pc(s)
- Dim
(Ø x L) 2.3 mm x 6 mm
- Type
26P133
Documents & Downloads
Datasheet
Datasheet 3841277 Quadrios 26P133 26P133 Metal film resistor (set) Axial lead 0.25 W 0.01 % 500 pc(s)
User & Safety Instructions
User & Safety Instructions 3841277 Quadrios 26P133 26P133 Metal film resistor (set) Axial lead 0.25 W 0.01 % 500 pc(s)
Description
Wired resistors (through-hole mounting) are standard components within electronics and technology and are indispensable in practical handling of this material. Ideal for pinboards, education, development, repair, service, Experiments with electronics and single board computers like Arduino or Raspberry PI etc.
It contains 20 different resistance standard values in metal film technology as well as 0.25 watt power - with extensive accessories. Any intermediate values can be formed through series or parallel connection or combinations. Therefore this set is also ideally suited for learning purposes and is often also used in educational institutions. Used resistance values can be individually refilled by means of optionally available refill packs per value.
The data sheet contains all relevant information about the resistor range.
This text is machine translated.
It contains 20 different resistance standard values in metal film technology as well as 0.25 watt power - with extensive accessories. Any intermediate values can be formed through series or parallel connection or combinations. Therefore this set is also ideally suited for learning purposes and is often also used in educational institutions. Used resistance values can be individually refilled by means of optionally available refill packs per value.
The data sheet contains all relevant information about the resistor range.
This text is machine translated.
Scope of delivery
- 1 x bending device RM 7.5 ... 17.5 mm
- 1 x resistance watch ("Vitrometer")
- 1 x PCB pliers with red handle
- 25 x metal film resistors 1 Ω (0.25 W)
- 25 x metal film resistors 10 Ω (0.25 W)
- 25 x metal film resistors 47 Ω (0.25 W)
- 25 x metal film resistors 100 Ω (0.25 W)
- 25 x metal film resistors 150 Ω (0.25 W)
- 25 x metal film resistors 220 Ω (0.25 W)
- 25 x metal film resistors 330 Ω (0.25 W)
- 25 x metal film resistors 470 Ω (0.25 W)
- 25 x metal film resistors 1 kΩ (0.25 W)
- 25 x metal film resistors 1.5 kΩ (0.25 W)
- 25 x metal film resistors 2.2 kΩ (0.25 W)
- 25 x metal film resistors 4.7 kΩ (0.25 W)
- 25 x metal film resistors 10 kΩ (0.25 W)
- 25 x metal film resistors 22 kΩ (0.25 W)
- 25 x metal film resistors 33 kΩ (0.25 W)
- 25 x metal film resistors 47 kΩ (0.25 W)
- 25 x metal film resistors 100 kΩ (0.25 W)
- 25 x metal film resistors 220 kΩ (0.25 W)
- 25 x metal film resistors 470 kΩ (0.25 W)
- 25 x metal film resistors 1 MΩ (0.25 W)
