Name: Quadrios LED set Cold white Circular 5 mm 14000 mcd 35 ° 20 mA 3.0 V Box
Brand: Quadrios
SKU: 2899412
Availability: InStock

Highlights & Details

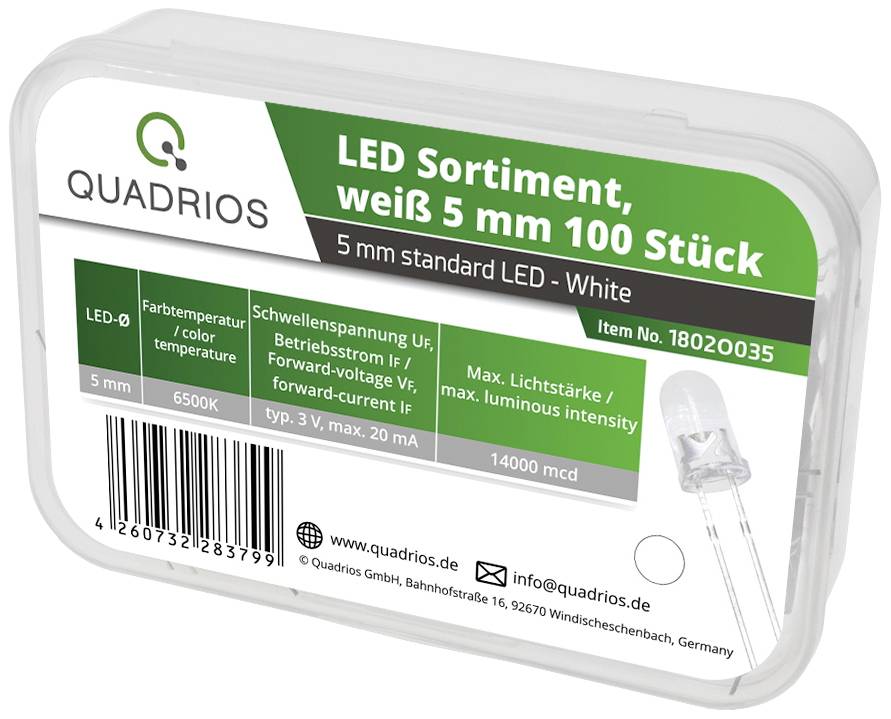

Standard LED set cold-white, 5mm 6500K, 100 pcs.

High-quality cold white light emitting diodes 5 mm
Brightness 14000 mcd, angle of radiation 30°
Lens clear
Total content of 100 parts

Our service for you

Technical specifications

Manufacturer color: Cold white
Casing: 5 mm
Design: Radially wired
Lens shape: Round
Material: InGaAIP
FORWARD VOLTAGE U(F):3.0 V
Forward current I(F) 20 mA
Light intensity I(V) 14000 mcd
Wavelength/color temperature: 6000-6500K
Angle of radiation: 35°
Casing color/design: Clear
Temperature range: -25 °C – 80 °C

Packaging type: Box

Product type: LED set

Factory colour: Cold white

Forward voltage U(F): 3.0 V

Forward current I(F): 20 mA

Operating voltage: 3.0 V

Operating current: 20 mA

Casing: 5 mm

Type: Radial lead

Light intensity I(V): 14000 mcd

Radiation angle: 35°

Type (LEDs): Water clear

Technology: InGaAIP

Lens type: Circular

Dim: (Ø) 5 mm

Min. temperature: -25 °C

Max. temperature: 80 °C

(Ø): 5 mm

RoHS-compliant: Yes

Content: 100 Parts

Documents & Downloads

Datasheet

Datasheet 2899412 Quadrios LED set Cold white Circular 5 mm 14000 mcd 35 ° 20 mA 3.0 V Box

User & Safety Instructions

User & Safety Instructions 2899412 Quadrios LED set Cold white Circular 5 mm 14000 mcd 35 ° 20 mA 3.0 V Box

Description

This experimental and practical assortment with wired standard LEDs is ideally suited for immediate start in applications with semiconductor lights. The data sheet contains useful information about the assortment - as well as important technical details about the contained components. This is the only way to ensure that the LEDs can be operated within their operating parameters because the components are clearly specified. Please note that LEDs must always be current-limited by a series resistor or a constant current source!
Delivery: Blister pack, 5 mm LEDs (100 pieces), operating current type. 20 mA · Forward voltage 3.0 V, brightness: 14000 mcd, beam angle: 35°, operating temperature -25 °C ... +80 °C.

This text is machine translated.

Scope of delivery

100x – 5 mm LEDs (cool white)

Hints

All standard LED chips require a current-limiting resistor/constant current power source.

Description

This experimental and practical assortment with wired standard LEDs is ideally suited for immediate start in applications with semiconductor lights. The data sheet contains useful information about the assortment - as well as important technical details about the contained components. This is the only way to ensure that the LEDs can be operated within their operating parameters because the components are clearly specified. Please note that LEDs must always be current-limited by a series resistor or a constant current source!
Delivery: Blister pack, 5 mm LEDs (100 pieces), operating current type. 20 mA · Forward voltage 3.0 V, brightness: 14000 mcd, beam angle: 35°, operating temperature -25 °C ... +80 °C.

This text is machine translated.
