Name: Quadrios LED set Red, Green, Yellow, Blue, Cold white, Warm white Circular 3 mm 600 mcd 30 ° 20 mA 3.0 V
Brand: Quadrios
SKU: 2899390
Availability: InStock

Highlights & Details

LED set 3 mm with 30 cm strands, holders, 160 pcs.

Super bright light diodes 3 mm in red/green/yellow/blue/warm white/cool white
LEDs on 30 cm flexible leads, series resistors in common values
Incl. 3 mm LED-sockets, Total of 160 parts contents
Well arranged, with technical data

Our service for you

Technical specifications

Manufacturer color: Red, green, yellow, blue, cold white Warm white
Housing: 3mm
Design: Radially wired
Lens shape: Round
Material: Red - gap, blue - InGaAIP, green - InGaAIP, yellow - Gap, cold white - InGaAIP, Warm white - InGaAIP
Forward voltage U(F): Red - 2.0 V, blue - 3.0 V, green - 2.0 V, yellow - 2.0 V, cold-white - 3.0 V, warm-white - 3.0 V
Forward current I(F) 20 mA
Light intensity I(V): Red – 600 mcd, blue – 1500 mcd, green – 100 mcd, yellow – 600 mcd, cold white – 8000 mcd, warm white – 9000 mcd
Wavelength/color temperature: Red – 625-635nm, blue – 460-465nm, green – 568-572nm, yellow – 587-590nm, cold white – 8000-9000K, Warm white - 3000-3200K
Angle of radiation: Red - 30°, blue - 30°, green - 30°, yellow - 30°, cold-white - 30°, Warm-white - 25°
Housing color/design: Red - diffused, blue - diffuse, green - diffuse, yellow - diffuse, cold-white - clear, Warm white - clear
Temperature range: -25 °C – 80 °C

Product type: LED set

Factory colour: Red
Green
Yellow
Blue
Cold white
Warm white

Forward voltage U(F): 3.0 V

Forward current I(F): 20 mA

Operating voltage: 2.0 V

Operating current: 20 mA

Casing: 3 mm

Type: Radial lead

Light intensity I(V): 600 mcd

Radiation angle: 30°

Type (LEDs): Diffused

LED features: pliable

Technology: GaP
InGaAIP

Lens type: Circular

Dim: (Ø) 3 mm

Min. temperature: -25 °C

Max. temperature: 80 °C

(Ø): 3 mm

RoHS-compliant: Yes

Content: 160 Parts

Documents & Downloads

Datasheet

Datasheet 2899390 Quadrios LED set Red, Green, Yellow, Blue, Cold white, Warm white Circular 3 mm 600 mcd 30 ° 20 mA 3.0 V

User & Safety Instructions

User & Safety Instructions 2899390 Quadrios LED set Red, Green, Yellow, Blue, Cold white, Warm white Circular 3 mm 600 mcd 30 ° 20 mA 3.0 V

Description

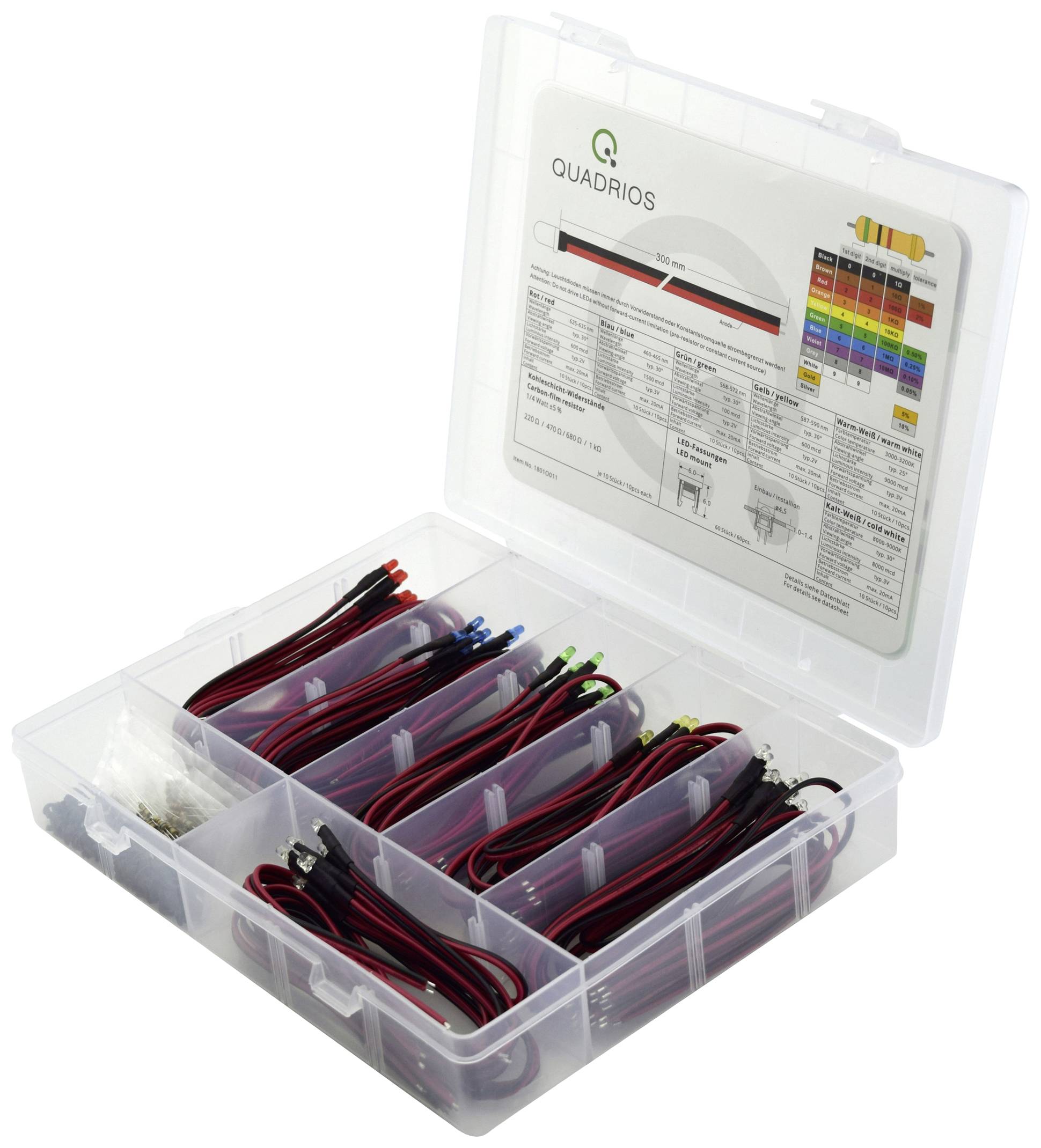

In this large experimental and practical assortment, super bright LEDs (3 mm diameter) are fully soldered at approx. 30 cm flexible wires. Through the included series resistors as well as the associated LED sockets it is optimally suitable for the immediate start in experiments with semiconductor light. A short description of the components included is clearly printed on the inside of the lid. The data sheet contains useful information about the assortment - as well as important technical details about the contained components. This is the only way to ensure that the LEDs can be operated in their specific parameters because the components are clearly specified.

This text is machine translated.

Scope of delivery

10x 3 mm LEDs (depending on color: Red/green/yellow/blue/warm-white/cold-white) with flexible cords (approx. 30 cm)
10x carbon film resistors 0.25 W/ 5 % (each value 220/470/680 Ohm as well as 1k Ohm)
60x 3 mm LED sockets

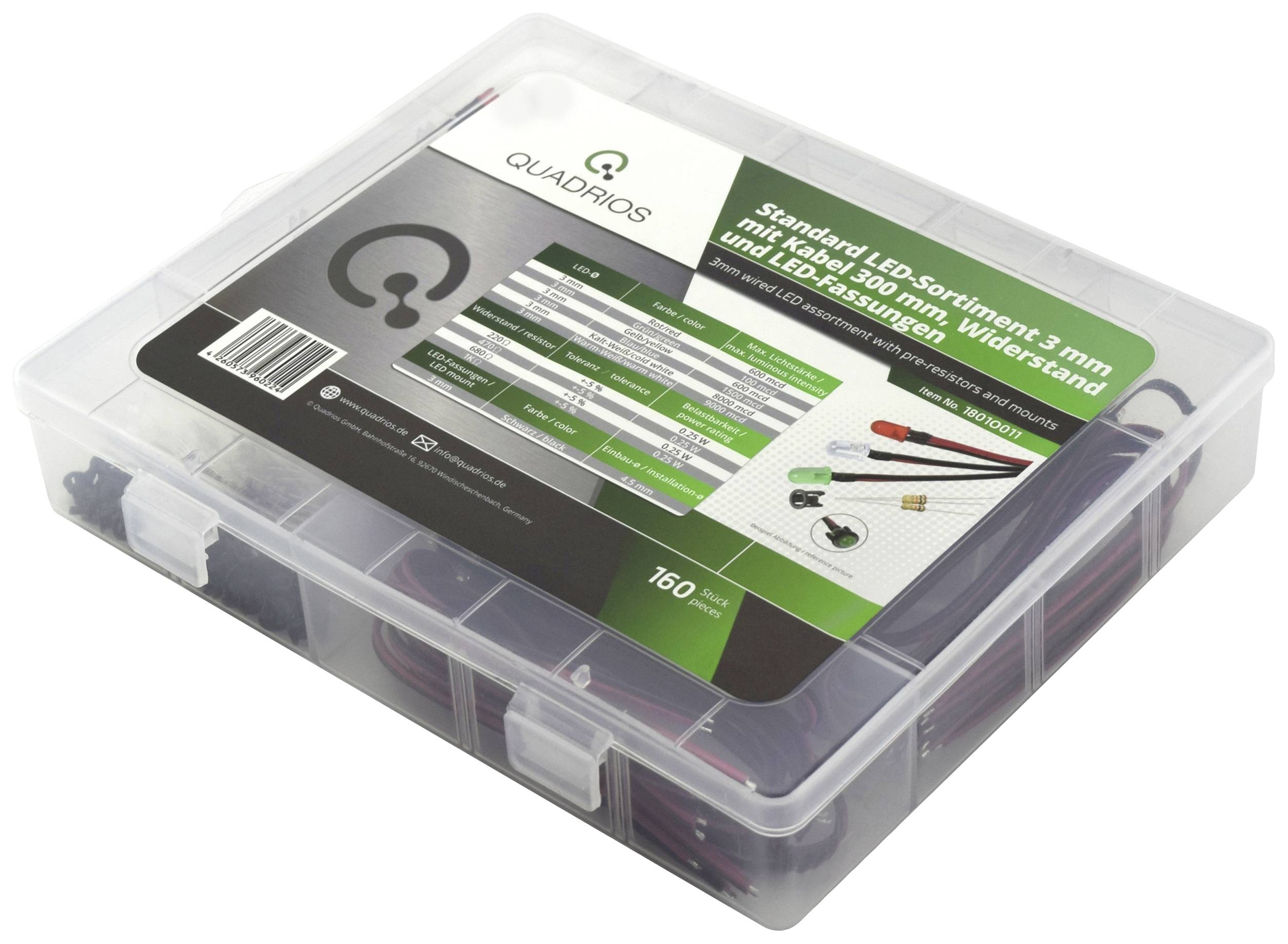

1x assortment box
