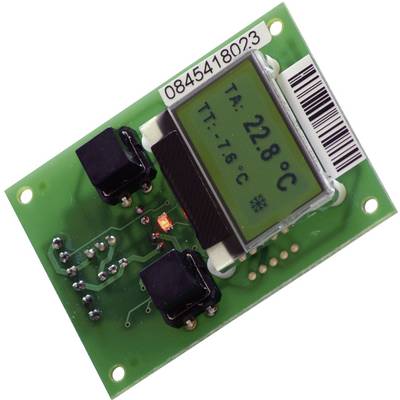

QuickCool QC-PC-D-CH1 Thermoelectric regulator display (L x W) 55 mm x 40 mm
EAN:
Part number:
Item no:
Product type
Thermoelectric regulator display
Type
QC PC D CH1
Length
55 mm
Width
40 mm
Dim
(L x W) 55 mm x 40 mm
5 Piece(s)
Sales and shipping:
Number
Total (€ 172.26 / piece)
€
Only 5 Piece(s) available
Technical specifications
- Supply voltage: 12VDC…24VDC
- 40mA….25mA
- Display dimensions: Outer: 55 mm x 40 mm, window: 47 mm x 27 mm
- Digital output: Open collector 10KΩ
- The digital output is a pure signal output. It is a so-called OpenCollector output. The current may not exceed 10mA.
- RoHS compliant
- Type
QC PC D CH1
- Length
55 mm
- Width
40 mm
- Dim
(L x W) 55 mm x 40 mm
- RoHS-compliant
Yes
- Product type
Thermoelectric regulator display
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3061915 QuickCool QC-PC-D-CH1 Thermoelectric regulator display (L x W) 55 mm x 40 mm
Description
The display extends the functions of the controller, it serves to parameterize and status display of the Peltier controller QC-PC-CO-CH1. With the help of this display all relevant control parameters can be individually adapted to each temperature structure and written in the controller memory. The current temperature of the temperature of the temperature measured object as well as the set temperature can be read directly on the display. By means of an intuitively understandable symbols the current control condition can be seen, with a view to the large display.
This text is machine translated.
This text is machine translated.
Scope of delivery
- DISPLAY QC-PC-D-CH1
- User manual
- Connecting cable
