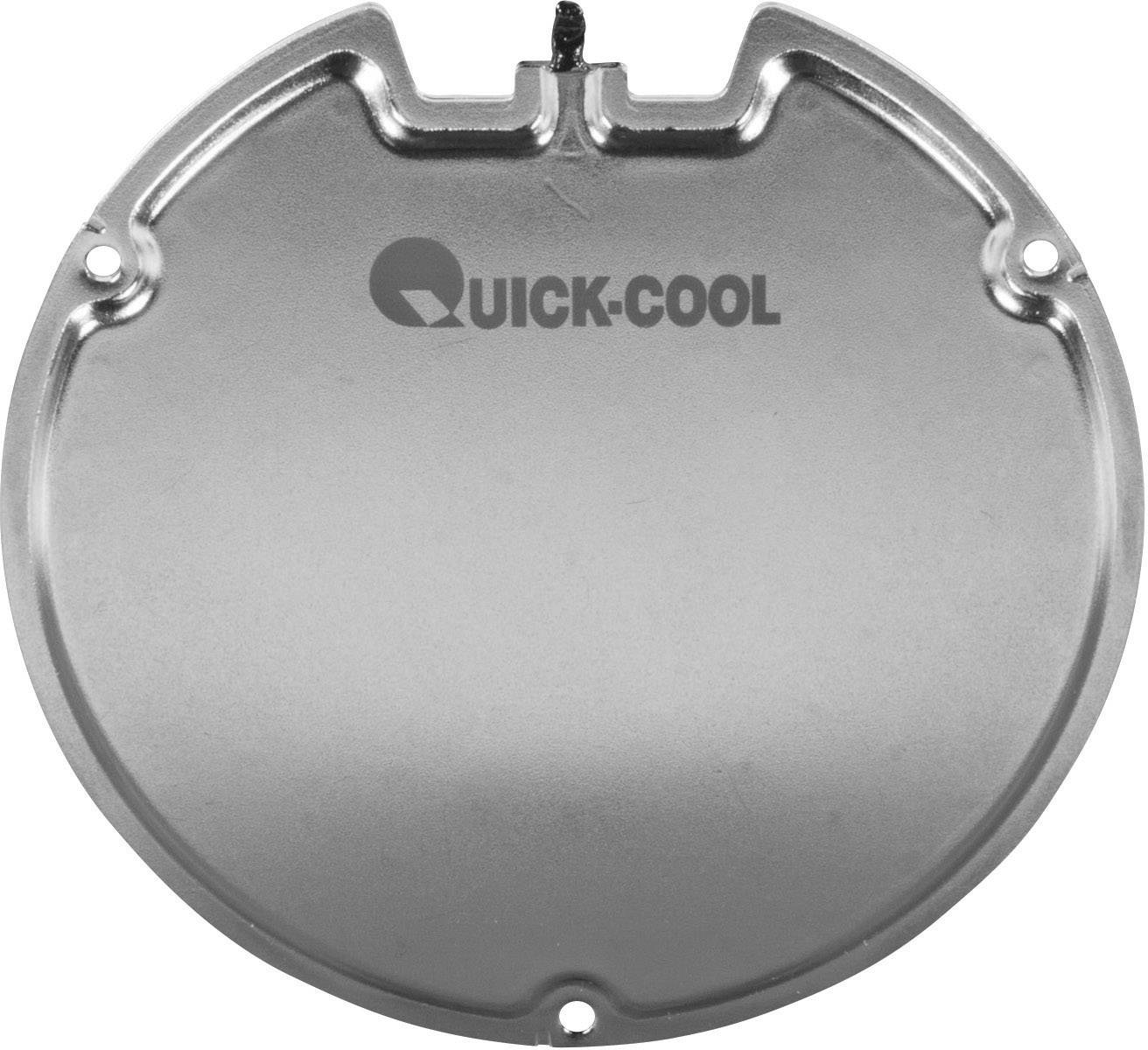

Image similar
Image similar
QuickCool QHD -46003 3D heat diffusor Holes (L x W x H) 56 x 56 x 3 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 25.20
3
4% = € 1.09
€ 24.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 25.20 / piece)
€ 25.20
plus VAT.
Highlights & Details
3D heat diffuser
- More than ten times higher heat conductivity than solid copper
- Homogenisation of the temperature on the entire surface
Technical specifications
- Type
QHD -46003
- Features
Holes
- Material
Copper
- Q (max) at T(e) (70 °C)
130 W
- Thermal resistance R(th)
0.19 K/W
- Max. temperature
150 °C
- Length
56 mm
- Width
56 mm
- Height
3 mm
- Dim
(L x W x H) 56 x 56 x 3 mm
- RoHS-compliant
Yes
- Product type
3D heat diffusor
Documents & Downloads
Datasheet
Datasheet 557171 QuickCool QHD -46003 3D heat diffusor Holes (L x W x H) 56 x 56 x 3 mm
Description
The 3-D heat diffuser works like a heat-pipe with a two-phase circuit process. The evaporation of a working medium, mostly water, heat to a heat source can be recorded and at the heat sink by condensation then released. During a heatpipe a cylindrical shape and a relatively small diameter is a heat transport only in the axial direction is possible. Heat diffuser, however, are "flat heat pipes", which at any point heat record and to the colder areas to deliver. Due to the special construction is no surface curvature/no swollen and thus no additional load on the contacted components.
