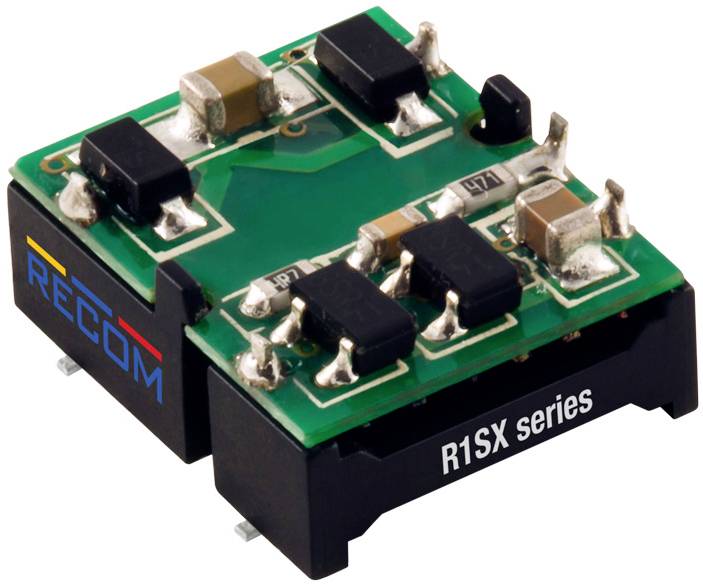

RECOM R1SX-3.33.3-R DC/DC converter (SMD) 3.3 303 mA 1 W No. of outputs: 1 x Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 5.99 / piece)
€ 5.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
DC/DC converter (SMD)
- Type
R1SX-3.33.3-R
- Min. input voltage
2.97 V
- Input voltage (max.)
3.63
- No. of outputs
1 x
- Output voltages
3.3
- Max. output current
303 mA
- Output current (max.) - rounded
303 mA
1 W
- Insulation voltage
1000 V
- Dim
(L x W x H) 12.75 x 11.1 x 5.8 mm
- Height
5.8 mm
- Length
12.75 mm
- Width
11.1 mm
- RoHS-compliant
Yes
- Output voltage (max.)
3.3 V
- Output voltage (min.)
3.3 V
- Content
1 pc(s)
