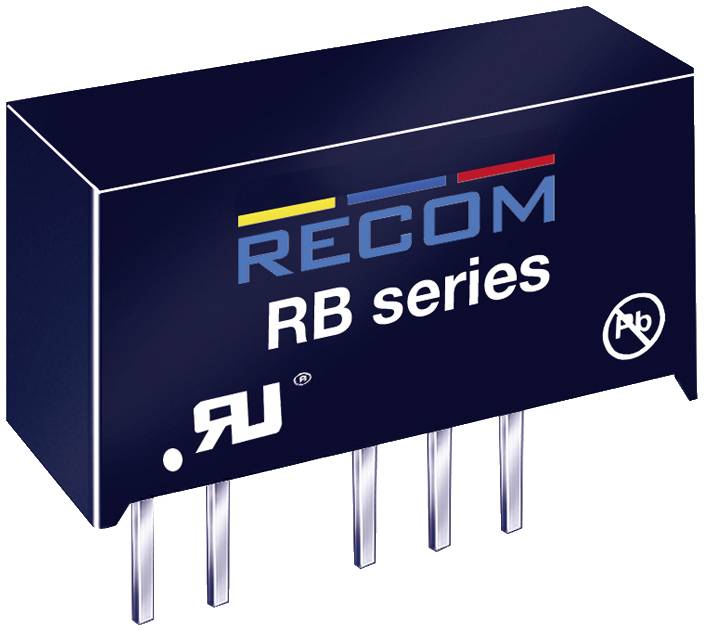

RECOM RB-1212S DC/DC converter 12 V 12 V 0.084 A 1 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.71
5
6% = € 0.41
€ 6.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.71 / piece)
€ 6.71
plus VAT.
Technical specifications
- Capacitive load max. 470 µF
- Remaining ripple 100 MVP-p
- Application: ITE, Industry, Medicine
- Casing: SIP7
- Input voltage ratio 1:1
- Product type
DC/DC converter
- Type
RB-1212S
- Nominal voltage
12 V
- Min. input voltage
10.8 V DC
- Input voltage (max.)
13.2 V DC
- No. of outputs
1 x
- Output voltages
12 V
- Max. output current
0.084 A
- Output current (max.) - rounded
84 mA
- Efficiency (max.)
80 %
1 W
- Insulation voltage
1.000 V
- Connection
THT
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Dim
(L x W x H) 19.60 x 6 x 10.20 mm
- Height
10.20 mm
- Length
19.60 mm
- Width
6 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
