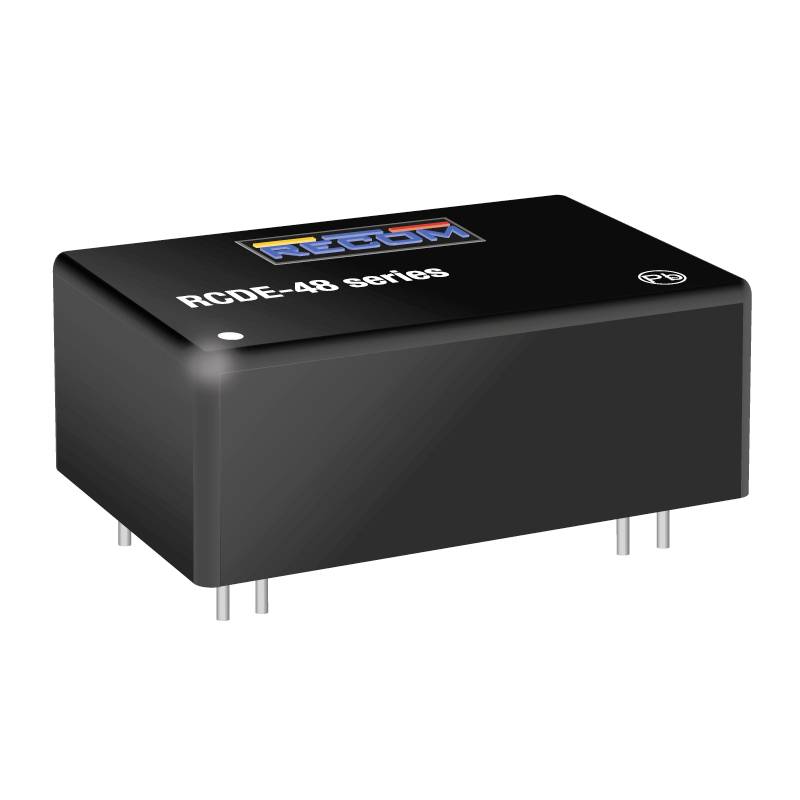

RECOM RCDE-48-1.05 LED driver 54.6 W 1.05 A 3 - 52 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
RCDE-48-1.05
- 3 - 52 V
- 1.05 A
Technical specifications
- Application: Lighting
- Casing: DIP24
- Properties: Remote function
- MTBF 1730000 h
- Efficiency 97 %
- Remaining ripple 400 MVP-p
- Product type
LED driver
- Operating current
1.05 A
- Dim
(L x W x H) 32.10 x 20.60 x 12.30 mm
- Factory colour
Black
- Output voltage (max.)
52 V
- Output voltage (min.)
3 V
- Max. output current
1.05 A
- Output current (max.) - rounded
1.05 A
- Connection
THT
- Max. power
54.6 W
- Input voltage (max.)
60 V
- Min. input voltage
6 V
- Power range
54.6 W (max)
- Width
20.60 mm
- Height
12.30 mm
- Length
32.10 mm
- Max. temperature
+55 °C
- Min. temperature
-40 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2887544 RECOM RCDE-48-1.05 LED driver 54.6 W 1.05 A 3 - 52 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2887544 RECOM RCDE-48-1.05 LED driver 54.6 W 1.05 A 3 - 52 V 1 pc(s)
Warranty Terms
Warranty Terms 2887544 RECOM RCDE-48-1.05 LED driver 54.6 W 1.05 A 3 - 52 V 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
