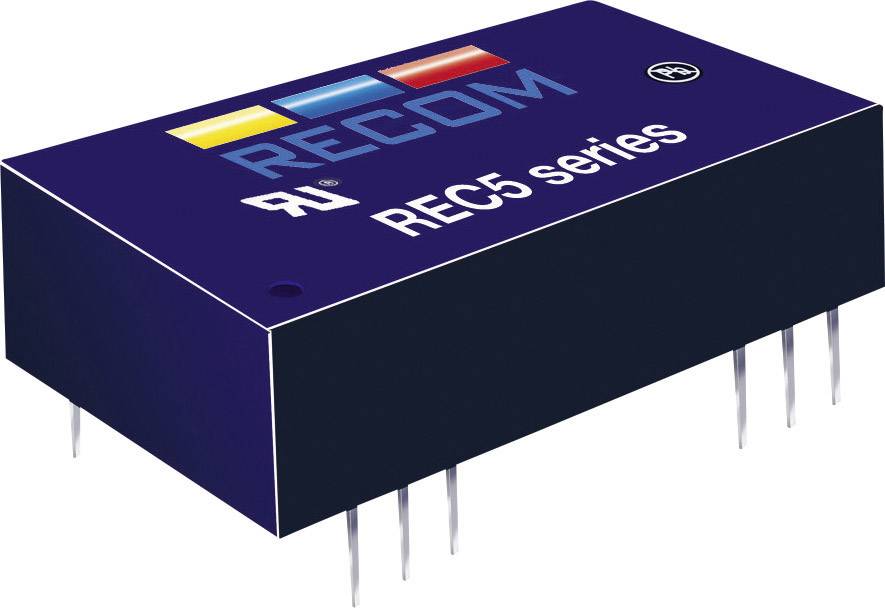

RECOM REC5-2412SRW/H2/A DC/DC converter (print) 24 V DC 12 V DC 556 mA 5 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
2 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 26.88
3
4% = € 1.17
€ 25.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 26.88 / piece)
€
Only 2 Piece(s) available
Technical specifications
- Pitch: 2.54 mm
- Product type
DC/DC converter (print)
- Type
REC5-2412SRW/H2/A
- Nominal voltage
24 V DC
- Min. input voltage
18 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Output voltages
12 V DC
- Max. output current
556 mA
- Output current (max.) - rounded
556 mA
- Efficiency (max.)
84 %
5 W
- Insulation voltage
2000 V DC
- Enclosure
DIP 24
- Connection
Solder pins
- Dim
(L x W x H) 32 x 20.3 x 10.2 mm
- Height
10.2 mm
- Length
32 mm
- Width
20.3 mm
- Content
1 pc(s)
- Type
DIP 24
5 W
- Output voltage
12 V DC
- Output current (details)
556 mA
- Efficiency
84 - 85 %
- Type
REC5-2412SRW/H2/A
- Input voltage
18 - 36 V DC
- Insulation voltage
2000 V DC
