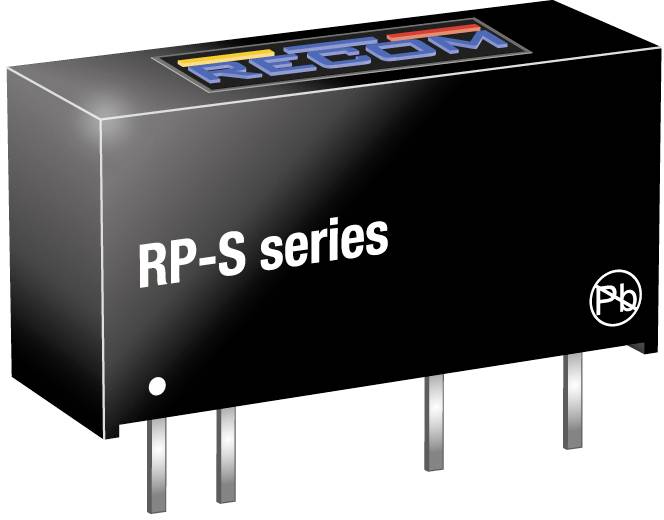

RECOM RP-2424S DC/DC converter (print) 24 42 mA 1 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
Technical specifications
- Product type
DC/DC converter (print)
- Type
RP-2424S
- Min. input voltage
21.6 V
- Input voltage (max.)
26.4
- No. of outputs
1 x
- Output voltages
24
- Max. output current
42 mA
- Output current (max.) - rounded
42 mA
1 W
- Insulation voltage
5200 V
- Enclosure
SIP 7
- Dim
(L x W x H) 19.65 x 7.05 x 10.2 mm
- Height
10.2 mm
- Length
19.65 mm
- Width
7.05 mm
- RoHS-compliant
Yes
- Output voltage (max.)
24 V
- Output voltage (min.)
24 V
- Content
1 pc(s)
