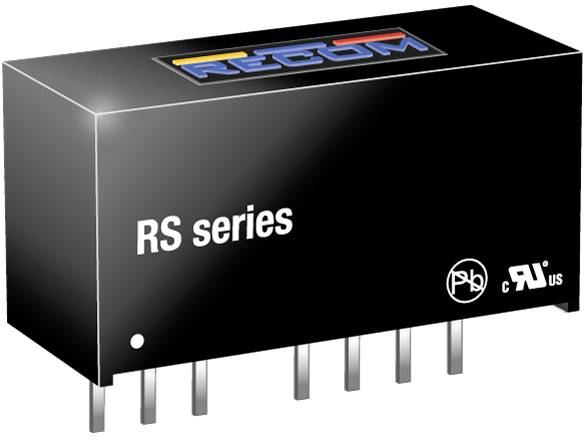

RECOM RS-1205S/H3 DC/DC converter (print) 5 400 mA 2 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
1 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 25.20
3
4% = € 1.09
€ 24.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 25.20 / piece)
€
Only 1 Piece(s) available
Technical specifications
- Product type
DC/DC converter (print)
- Type
RS-1205S/H3
- Min. input voltage
9 V
- Input voltage (max.)
18 V
- No. of outputs
1 x
- Output voltages
5
- Max. output current
400 mA
- Output current (max.) - rounded
400 mA
2 W
- Insulation voltage
3000 V
- Enclosure
SIP 8
- Dim
(L x W x H) 21.8 x 9.2 x 11.1 mm
- Height
11.1 mm
- Length
21.8 mm
- Width
9.2 mm
- RoHS-compliant
Yes
- Output voltage (max.)
5 V
- Output voltage (min.)
5 V
- Content
1 pc(s)
