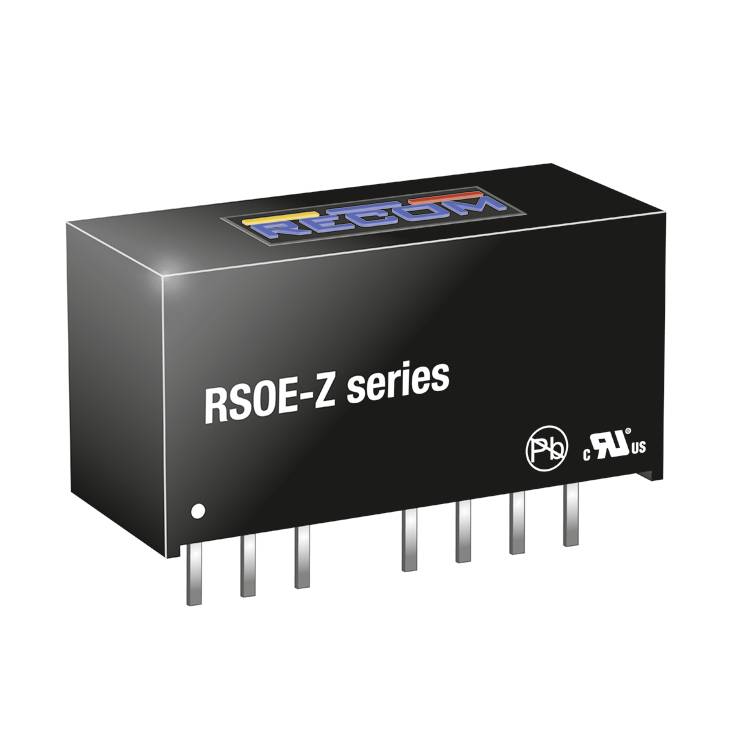

RECOM RSOE-2405SZ/H2 DC/DC converter 5 V 0.2 A 1 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
Only 7 Piece(s) available
Technical specifications
- Capacitive load max. 6800 µF
- Remaining ripple 75 MVP-p
- Application: ITE, Industry
- Casing: SIP8
- Input voltage ratio 4:1
- Product type
DC/DC converter
- Type
RSOE-2405SZ/H2
- Min. input voltage
9 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Output voltages
5 V
- Max. output current
0.2 A
- Output current (max.) - rounded
200 mA
- Efficiency (max.)
79 %
1 W
- Insulation voltage
2.000 V
- Connection
THT
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+75 °C
- Dim
(L x W x H) 21.80 x 9.20 x 11.10 mm
- Height
11.10 mm
- Length
21.80 mm
- Width
9.20 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
