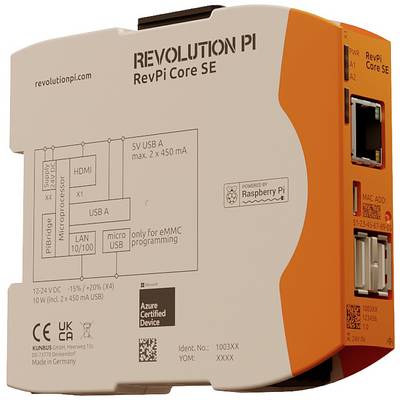

Revolution Pi by Kunbus RevPi Core SE 32 GB PR100367 PLC controller 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 365.55 / piece)
€ 365.55
plus VAT.
Highlights & Details
Kunbus RevPi Core SE 32 GB PR 100367 PLC control module 12 V, 24 V.
- Revolution in PLC controlOpen-source IPCBased on Raspberry Pi Compute Module 4S (located between the 3+ and RevPi 4 series)Alternative to RevPi Core 3+ 32 GB (PR100301)Can only be expanded with I/O modulesIf you also want to add gateways, select RevPi Core S 32 GB (PR100361)Meets major industry standardsMicro HDMI for connecting visualizations
- This text is machine translated.
Technical specifications
- Type
RevPi Core SE 32 GB
- Product type
PLC controller
- Dim
(W x H x D) 22.5 x 96 x 110.5 mm
- Operating voltage
24 V DC
- Operating voltage
12 - 24 V DC
- Max. operating voltage
24 V DC
- Min. operating voltage
12 V DC
- Flash memory
32 GB
- Weight
115 g
- Manufacturer part #
PR100367
- Type
Raspberry Pi® Compute Modul 4S
- Model identifier
CM4S32
- Width
22.5 mm
- Height
96 mm
- Depth
110.5 mm
IP20
- Clock speed
1.5 GHz
Documents & Downloads
Datasheet
Datasheet 2617028 Revolution Pi by Kunbus RevPi Core SE 32 GB PR100367 PLC controller 24 V DC
User & Safety Instructions
User & Safety Instructions 2617028 Revolution Pi by Kunbus RevPi Core SE 32 GB PR100367 PLC controller 24 V DC
Description
The S and SE series are based on the brand new Raspberry Pi Compute Module 4S, an intermediate step between the 3+ series and the RevPi 4 series. The Compute Module 4S is a compute module in the form factor of the CM3+, on which the powerful Arm Cortex-A72 processor of the CM4 is installed.What was the difference between the S-Series and the SE-Series?The difference between the S and SE series is explained quickly: The S series is compatible with all expansion modules including our fieldbus gateways. The SE series can only be expanded with IO modules and with Con modules in the case of RevPi Connect. Fieldbus gateways are not supported in the SE series.What was the reason to develop two series?This innovation is also based on the global semiconductor crisis: The required IC, which is responsible for connecting the gateways via the PiBridge, is currently not available in sufficient quantities for us. As we can see from the sales figures that many RevPi users operate their devices without gateways, we decided to launch the SE series. This is how we want to ensure that we can build enough devices for all customer requirements.What was to be taken into account when switching from the previous devices to the S or SE series?Customers moving from CM3/3+ devices to RevPis with the CM4S need to consider an important change. The new CPU of the Compute Module 4S is only supported with the kernel 5.10. Customers who use their own image or KUNBUS image with an older kernel must update the kernel.
This text is machine translated.
This text is machine translated.
Hints
When switching from devices with the CM3/3+ to RevPis with the CM4S, an important change must be observed. The new CPU of the Compute Module 4S is only supported with the kernel 5.10. Customers who use their own image or KUNBUS image with an older kernel must update the kernel.
