Name: Ricoh Projector PJ WUL5A50 3LCD 1920 x 1200 WUXGA Built-in speaker
Brand: Ricoh
SKU: 3767897

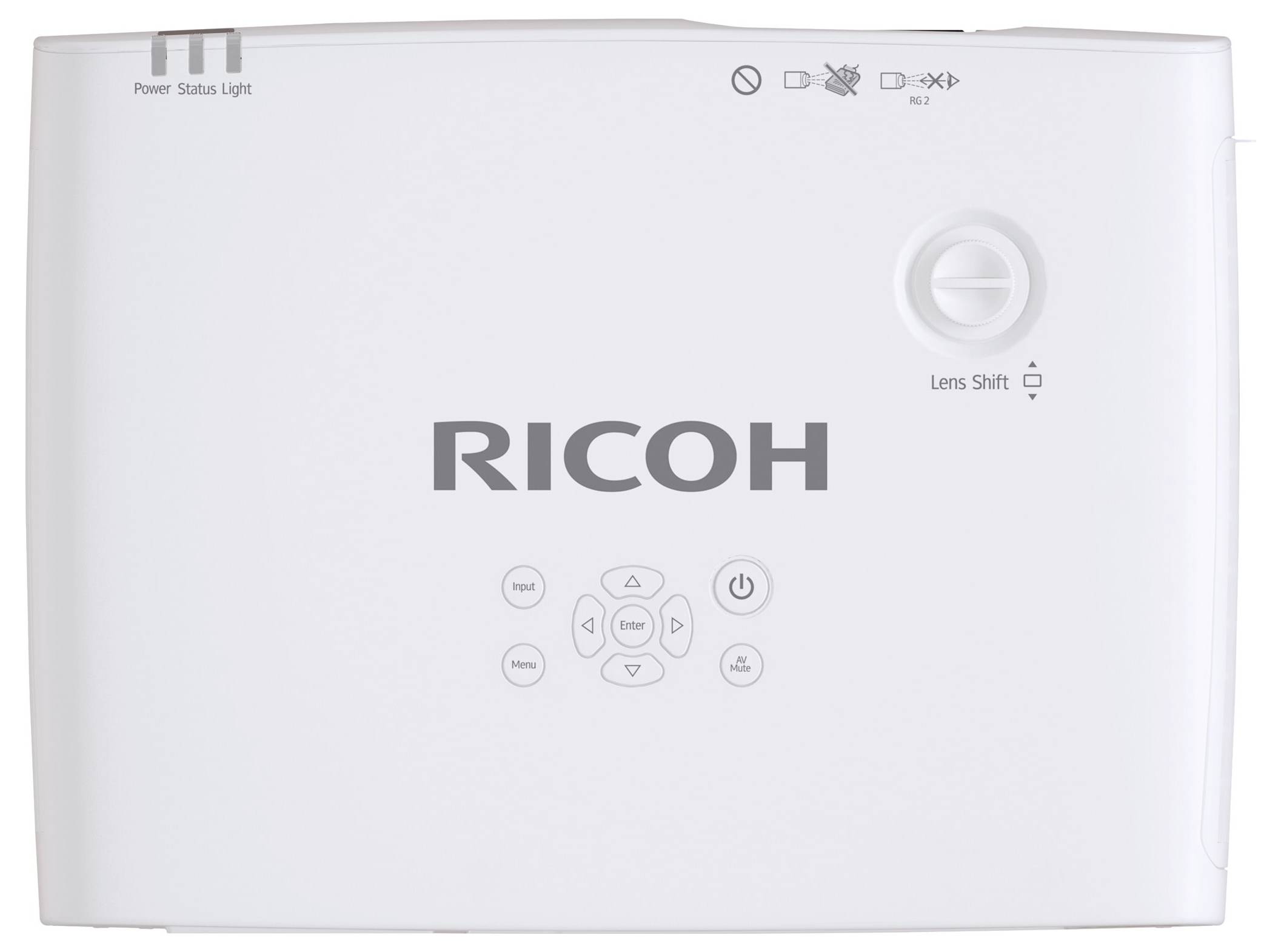

Front view of a white Ricoh projector, showing the power/status light, control buttons, and lens shift dial.

Front view of a white portable air conditioner with a large black vent grille and small caster feet.

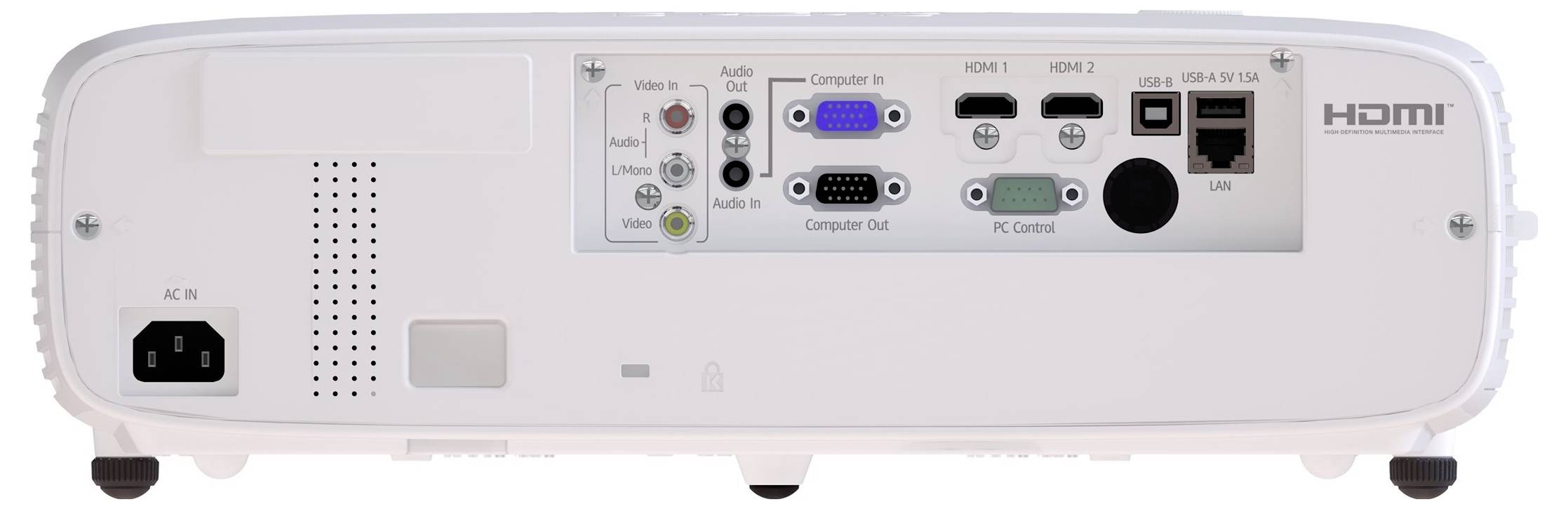

Back panel of a projector showing power input, ventilation, audio jacks, VGA computer in/out, HDMI ports, USB, LAN, and PC control connections.

White Ricoh projector on a blue platform with arrows pointing to it and the text 'Light and compact' in a green circle.<br>

White Ricoh projector on a pink-to-orange gradient background with the text 'Compact design with immersive impact' above it.

White portable air conditioner unit with front vent grille and small wheels.

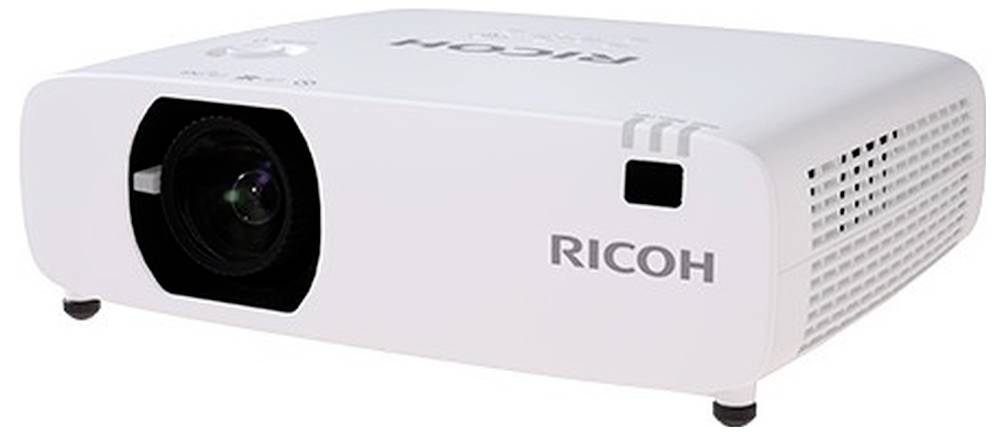

White Ricoh projector shown at an angle, with lens on the left and ventilation grilles on the right.

1/8

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ricoh Projector PJ WUL5A50 3LCD

Built-in speaker

Technical specifications

Capacity of projection area 762 - 7620 mm (30 - 300")
Projector brightness 5200 ANSI lumens
Projector native resolution: WUXGA (1920x1200)
Contrast ratio 5000000:1
HDMI version 1.4
Market Positioning: Presentation
Product type: Short throw projector
Energy source: AC

Product type: Projector

Technology: 3LCD

Range of use: Office projector

Standard resolution: 1920 x 1200 WUXGA

Image format: 16:10

Beamer features: Built-in speaker

ECO bulb lifespan: 30000 h

Max. bulb life: 20000 h

No. of HDMI ports: 2 x

No. of VGA ports: 1 x

Connections: HDMI

ECO noise level: 30 dB

Max. operating noise: 37 dB

Dim: (W x H x D) 390 x 132 x 319 mm

Width: 390 mm

Height: 132 mm

Depth: 319 mm

Weight: 5.5 kg

Factory colour: White

Power consumption (ON): 290 W

Power consumption (standby): 0.5 W

No. of USB A 2.0 ports: 1 x

Audio power (max.): 16 W

Wi-Fi: No

UKCA: not relevant

Operating temperature (T-T): 5 - 40 °C

Projection distance (wide): 0,765 - 7,964 m

Projection distance (tele): 1,258 - 12,885 m

Ethernet LAN: yes

Remote control included: yes

Number of built-in speakers: 1

Interactive: no

DVI port: no

Built-in speaker(s): yes

Full HD: yes

USB 2.0 Type-B ports quantity: 1

Card reader integrated: no

Audio (L/R) in: 1

Smart projector: no

Operating relative humidity (H-H): 20 - 80 %

3D: no

Matrix size: 1.63 cm (0.64")

Built-in display: no

Horizontal lens shift range: -30 - 30 %

Vertical lens shift range: -60 - 60 %

Smart TV: no

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3767897 Ricoh Projector PJ WUL5A50 3LCD 1920 x 1200 WUXGA Built-in speaker

Description

Ultra-short distance projectors – Ideal for small spaces requiring large, high-quality images

Long-lasting laser light source

The laser light source has a long service life of 20,000 hours (maximum 30,000 hours in Eco mode) and WAS is equivalent to six to seven times the life of a typical projector lamp. It also has slow attenuation, so there is no risk of sharpening with brightness or black screen.

Lightweight, portable design

Weighing only 5.2 kg (WUL5A50 model) and 5.5 kg (WUL5A40ST model), these models offer a small, convenient standard and short projection options to move easily into another room or to be fixed.

1.6-port Zoom (PJ WUL5A50)

Thanks to the 1.6-fold zoom the picture size of the PJ WUL5A50 remains the same even when the projection distance is changed.

0.44 projection ratio/short projection with zero point deviation (PJ WUL5A40ST)

The PJ WUL5A40ST short-projection lens allows you to project a 100-inch screen from a distance of 0.97 m. Images can be fully projected with zero point deviation, WAS is very practical with low space or low ceiling.

3LCD technology

3LCD technology enables the projection of bright, true-color pictures thanks to inorganic LCD panel and phosphor wheel. These elements also extend the life of the device.

Multiple picture modes

These models have a variety of predefined picture mode settings that can be selected according to the usage environment. You can choose from Standard, Bright, Natural or DICOM SIM modes.

High vertical lens adjustment (PJ WUL5A50)

On the PJ WUL5A50, the vertical lens shift of more than 60% allows for a wider range of image adjustment without having to move the device. This guarantees more flexibility in the installation.

360 degree projection

Both the PJ WUL5A50 and PJ WUL5A40ST can project in a spectrum of 360 degrees. This makes them extremely flexible, reduces installation restrictions and considerably extends their application area.

Quick start

Full brightness is achieved within a few seconds of turning on the projector. The light also turns off within 5 seconds of the appliance being switched off.

Automatic ceiling alignment

The integrated sensor corrects the picture alignment automatically.

High resolution and 4K signal input

The WUXGA chip enables an ultra wide-screen image resolution of 1,920 x 1,200 on all devices. These devices are also compatible with 3,840 x 2,160 HZ and can directly play audio and video content in 4K resolution format.

16 watt speaker

Each model has a 16-watt speaker, allowing sound to be transmitted throughout the room without plug-in.

New cooling system

Both models feature a unique "direct wind flow" design that adjusts wind pressure and airflow to keep the LCD panels cool evenly.

Image adjustment functions

Thanks to the correction with four corners/six points as well as the curve correction, the picture can be adjusted to the projection surface. In addition, raster image correction allows 187 adjustment points.

This text is machine translated.
