RIDI 0331369//377 0331369//377 LED recessed light LED (monochrome) Bulb cannot be changed 8 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

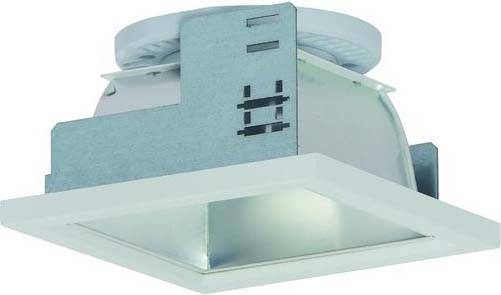

Ridi-Lamp LED-Mounting downlight 4000K DALI EDLQ #0331369//377
- Power= 8 W Total luminous flux= 1140 lm Colour temperature= 4000 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Suitable for panel mounting: Yes
- Suitable for mounting on a panel: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: No.
- Suitable for traverse installation: No.
- Suitable for pedestal-/floor mounting: No.
- Suitable for rail mounting: No.
- Suitable for clamp mounting: No.
- Suitable for cable system: No.
- Adjustable: Not adjustable
- With motion detector: No.
- With light sensor: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Material of housing: Steel
- Surface protection: Galvanised
- Housing color: White
- Cover material: Without
- Brushed surface: Yes
- Voltage type AC
- Nominal voltage 230..240 V
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimming depends on the operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: Matt

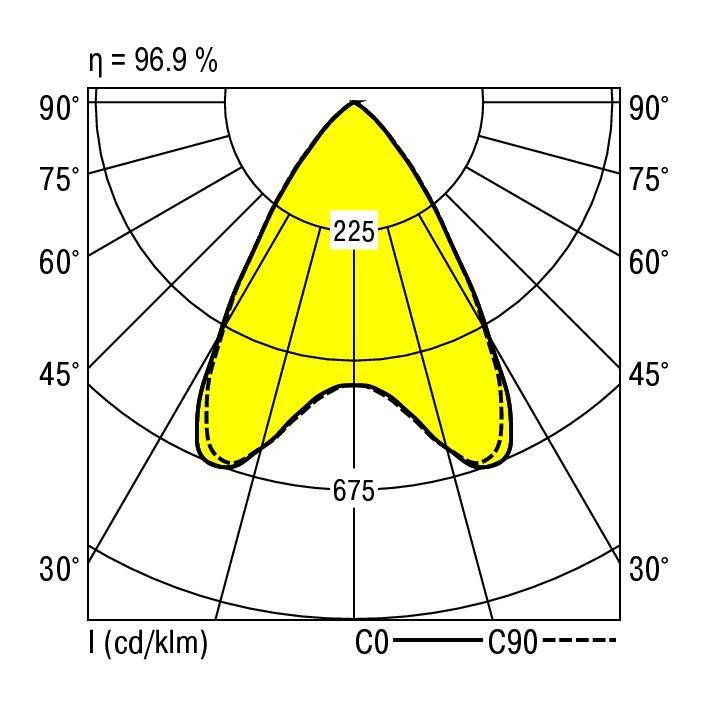

- Light distribution: Symmetric
- Light emission: Direct
- Protection class (IP) IP20
- Protection class: I
- Suitable for lamp output 7 W
- Max. System power 8 W
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Rated light current according to IEC 62722-2-1: 1140 lm
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.

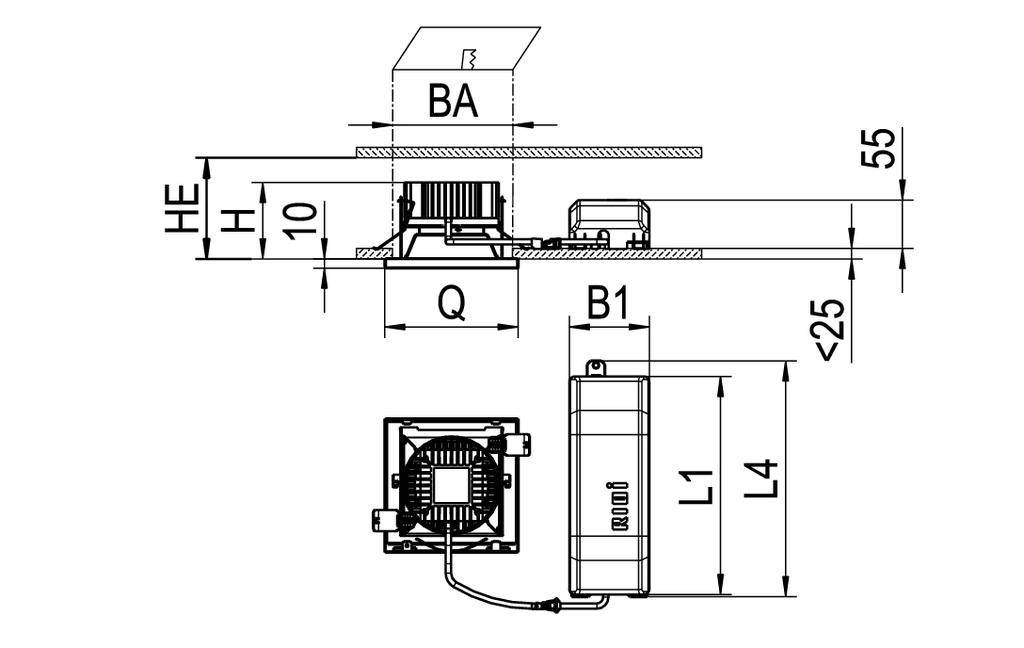

- Width 150 mm
- Height/depth 80 mm
- Length: 150 mm
- Mounting width 122 mm
- Installation height/depth 170 mm
- Mounting length 122 mm
- Lamp with limited surface temperature "D-sign": No.
- Integrated emergency power supply: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Light output 142 lm/W
- Workplace training material - EN 12464-1: Yes
- IFTTT support available: No.
- Color consistency (McAdam ellipse): SDCM3
- Glare limiter (UGR): 16.6
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- Product type
LED recessed light
- Operating voltage
230 V
- No. of bulbs
1
Bulb cannot be changed
- Bulb type
LED (monochrome)
- Rating per bulb
7 W
8 W
1140 lm
- Total luminous flux
1140 lm
4000 K
- Colour
White
- Type
Square
- Light features
Dimmable
- Recess length
122 mm
- Recess width
122 mm
- Recess depth
170 mm
- External length
150 mm
- External width
150 mm
IP20
- Protection class
I
- Factory colour
White
- Material
Steel
n.rel.
- Dim
(L x W x H) 150.00 x 150.00 x 80.00 mm
Yes
- Light bulb included
Yes
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- Width
150.00 mm
- Height
80.00 mm
- Length
150.00 mm
- Depth
80 mm
- Rated luminous flux
1140 lm
- Colour rendering index
80-89
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3144531 RIDI 0331369//377 0331369//377 LED recessed light LED (monochrome) Bulb cannot be changed 8 W White
User & Safety Instructions
User & Safety Instructions 3144531 RIDI 0331369//377 0331369//377 LED recessed light LED (monochrome) Bulb cannot be changed 8 W White
Description
EDLQ downlight, built-in, white, DALI, balanced light distribution wide beam, Length 150 mm, width 150 mm, height 80 mm, protection class IP20, protection class I, Rated light current 1140 lm, rated power 8 W, 142 lm/W, light color 840, reference value UGR 18, Single battery, 3 h
