RIDI 0622223//420 0622223//420 LED ceiling light LED (monochrome) Built-in LED 42 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Ridi-lights LED-mounted light 4000K SURVIVO#0622223//420
- Power= 42 W
- Total luminous flux= 6800 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: Yes
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: No.
- Suitable for mounting on a panel: No.
- Suitable for light band configuration: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Suitable for the number of bulbs: 5
- Material of housing: Aluminium
- Surface protection housing: Powder-coated
- Housing color: White
- Cover material: Matt/satin plastic
- Design of grid: Without
- Voltage type AC/DC
- Nominal voltage 220..240 V
- Nominal current: 10000 mA
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Manufacturer-specific dimming: Yes
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: Yes
- Without dimming function: Yes

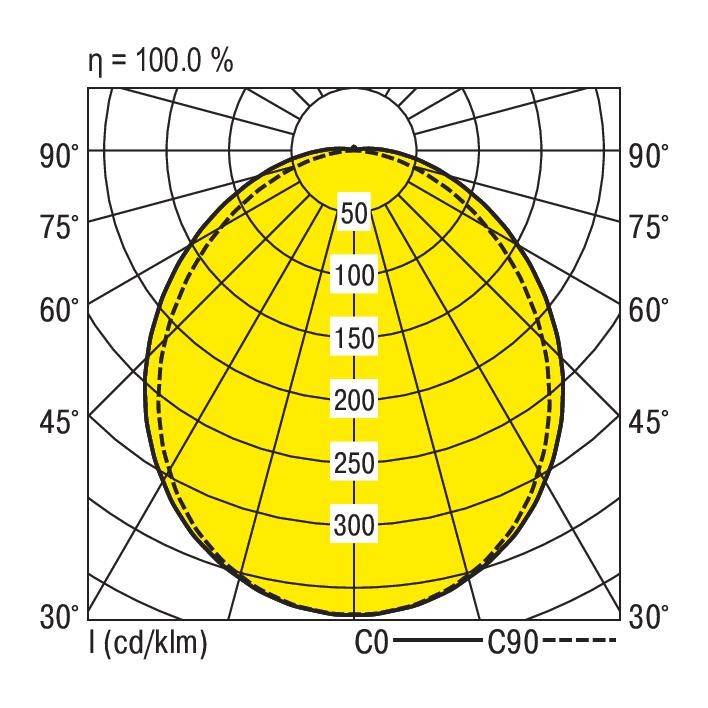

- Light distribution: Symmetric
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct
- Max. Number of lights circuit breaker B16: 24
- Max. Number of lamps line circuit breakers C16: 40
- Protection class (IP) IP65
- Impact strength: IK10
- Protection class: I
- Lamp with limited surface temperature "D-sign": No.
- Suitable for emergency lighting: Yes
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- With air vents: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Max. System power 42 W
- Light output 161 lm/W
- Rated light current according to IEC 62722-2-1: 6800 lm
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Width 240 mm
- Height/depth 73 mm
- Length: 1600 mm
- Glare limiter (UGR): 23.4
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Operation via Bluetooth: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Dim

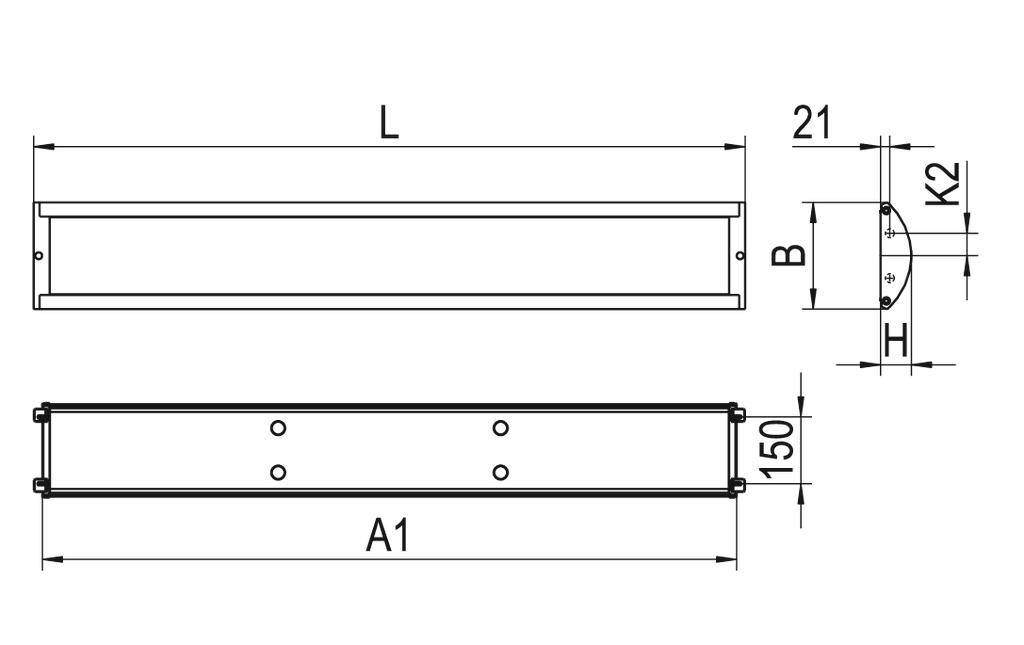

(L x W x H) 1600.00 x 240.00 x 73.00 mm
- Operating voltage
230 V
- No. of bulbs
5
- Product type
LED ceiling light
- Width
240.00 mm
- Bulb type
LED (monochrome)
- Height
73.00 mm
Built-in LED
- Length
1600.00 mm
- Depth
73 mm
42 W
- Light features
Incl. ballast
- Protection class
I
IP65
- Factory colour
White
- Material
Aluminium
n.rel.
- Colour rendering index
80-89
- Colour
White
- Light bulb included
Yes
4000 K
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- Total luminous flux
6800 lm
- Rated luminous flux
6800 lm
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3141650 RIDI 0622223//420 0622223//420 LED ceiling light LED (monochrome) Built-in LED 42 W White
User & Safety Instructions
User & Safety Instructions 3141650 RIDI 0622223//420 0622223//420 LED ceiling light LED (monochrome) Built-in LED 42 W White
Description

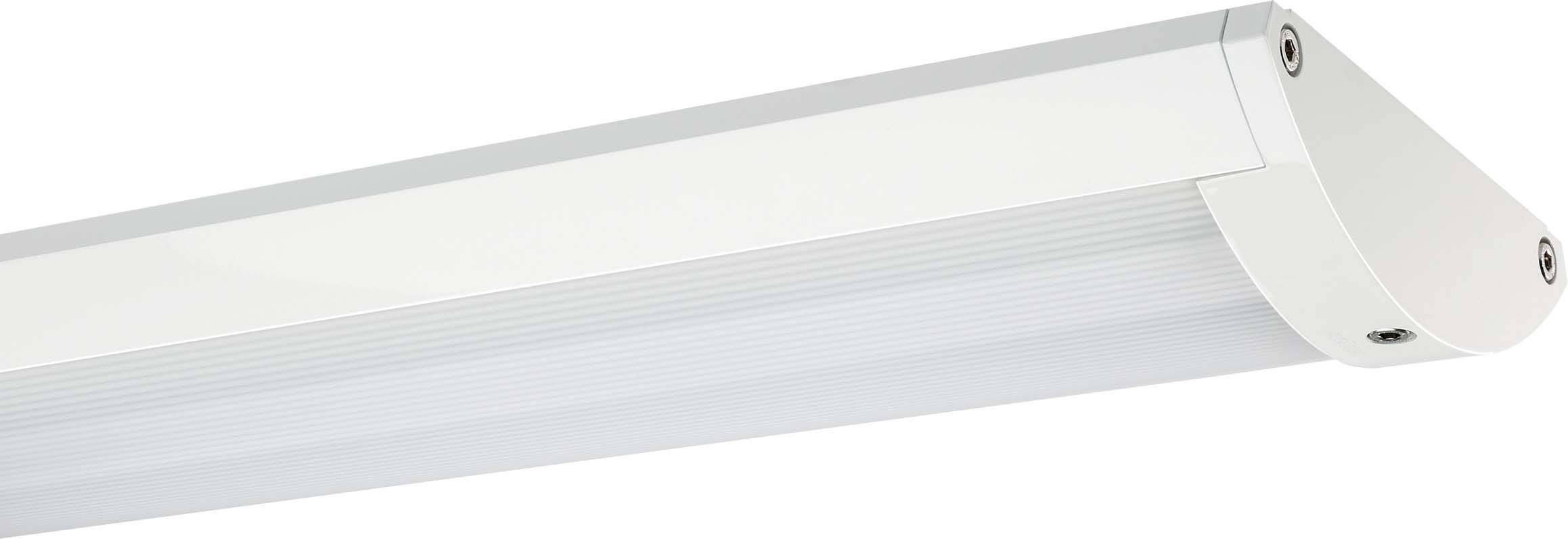

Ceiling lamp SURVIVOR, mounting, white, xFlex, light emission direct, Satin finish cover extremely wide radiant, length 1600 mm, width 240 mm, height 73 mm, protection class IP65, Shock resistance IK11+ 100 J, Rated light current 6800 lm, rated power 42 W, 161 lm/W, light color 840, Reference value UGR 23
