Technical specifications
- Height: 75 mm
- Width 64 mm
- Design: Presence detectors
- Mounting type: Module carrier
- Material: Metal
- Colour: white
- Surface protection: Untreated
- Transparent: No.
- Design of surface: Matt
- KNX bus system: No.
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: DALI
- Number of channels: 1
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- Wireless bidirectional: No
- With bus connection: Yes
- Suitable for wall mounting: No.
- Suitable for ceiling mounting: No.
- With connection cable: No.
- Material quality: Other
- RAL number (similar): 9016
- Response brightness adjustable: Yes
- Optimum mounting height 2.5 m.
- Max. Range to one side: 5 m.
- Max. Range: Front 3 m
- Capturing field Diameter on floor: 10 m.
- Operating mode switch: Yes
- Staircase monitoring: Yes
- Min Switch-on time 60 seconds
- Max. duty cycle 30 min
- Low-level detection/back field monitoring: Yes
- Teach-Function for Response Brightness: Yes
- Animal slope: No.
- Extension input: Yes
- Switch-off delay, self-learning: No.
- Rear field monitoring: No.
- With acoustic sensor: No.
- DALI-2 certified: Yes
- Product type
Sensor module
10 m
- Mounting type
Mount
- Operating voltage
230 V AC
- Similar RAL
9016
- Width
64 mm
- Height
75 mm
- Dim
(W x H) 64 mm x 75 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3552504 RIDI 1500160//386 Mount Sensor module
Description

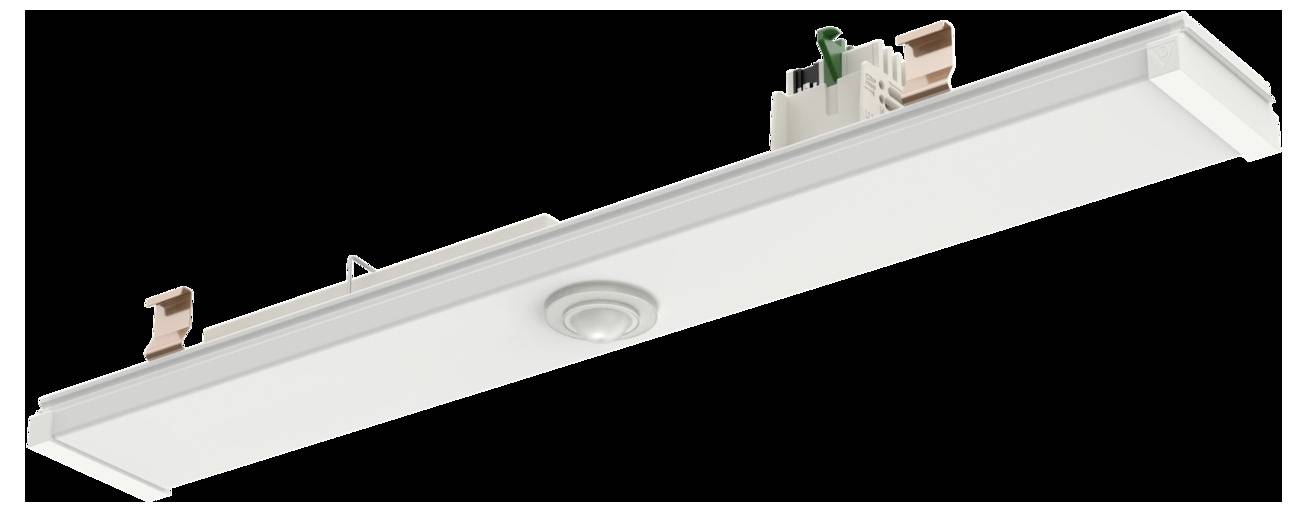

Sensor module insert with Master-presence sensor (DALI-2) device carrier made of aluminum profile, extruded, traffic white, similar to RAL 9016. Polycarbonate sensor, UV resistant. Installation: Simple clipping for electrical contact and mechanical fixing in system-bound LINA mounting rail system. Mechanical coding to prevent incorrect mounting (anti-twist protection). Nominal voltage 230 V AC 50 Hz. Electrical adapter for flexible tapping of the power supply in the rail. Colour and optical coding for easy mounting. With light and motion detector. Detection range transverse Ø 10 m, detection field 79 m². Daylight-dependent presence recognition with adjustable daylight threshold, basic light level and delay times. A maximum of 40 DALI device carriers can be controlled directly via the integrated DALI-2 interface in broadcast mode (all lights behave the same). Setup and configuration via B.E.G. One APP and Bluetooth/Infrared adapter Art.-No. 0209282. Expansion of the detection field by connecting up to 8 slave sensors. Manual on and off of the connected lights via push-button input. Modules can also be used in conjunction with 7-pin DIN rail. The module inserts can be placed variably between the device carriers. Depending on the design, modules cannot be placed in the connector area. Including cover plates/blinds for limiting the sensor detection field.
