Technical specifications
- Height: 114 mm
- Width 105 mm
- Design: Presence detectors
- Mounting type: Module carrier
- Material: Metal
- Colour: white
- Surface protection: Untreated
- Transparent: No.
- Design of surface: Matt
- KNX bus system: No.
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: DALI
- Number of channels: 1
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- Wireless bidirectional: No
- With bus connection: Yes
- Suitable for wall mounting: No.
- Suitable for ceiling mounting: No.
- With connection cable: No.
- Material quality: Other
- RAL number (similar): 9016
- Response brightness adjustable: Yes
- Optimum mounting height 12 m.
- Max. Range to one side: 7.5 m.
- Capturing field Diameter on floor: 15 m.
- Operating mode switch: Yes
- Staircase monitoring: Yes
- Low-level detection/back field monitoring: Yes
- Teach-Function for Response Brightness: Yes
- Animal slope: No.
- Extension input: Yes
- Switch-off delay, self-learning: No.
- Rear field monitoring: No.
- With acoustic sensor: No.
- DALI-2 certified: Yes
- Product type
Sensor module
15 m
- Mounting type
Mount
- Operating voltage
230 V AC
- Similar RAL
9016
- Width
105 mm
- Height
114 mm
- Dim
(W x H) 105 mm x 114 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3552224 RIDI 2500030 Mount Sensor module
Description

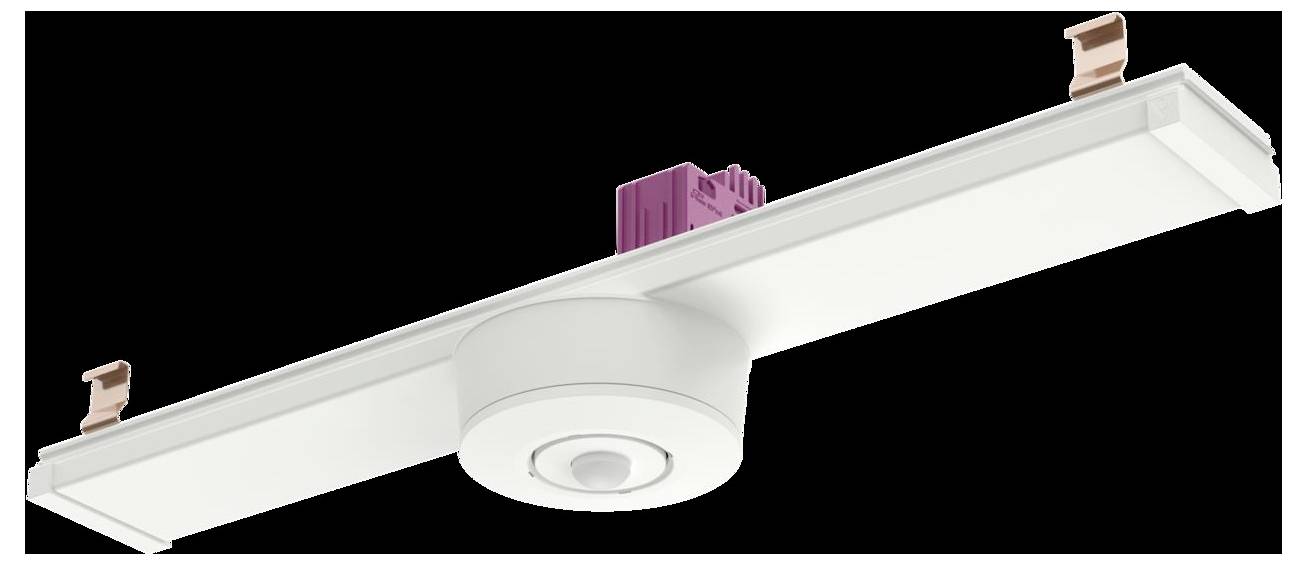

Sensor module application with combined DALI light and motion sensor. Device carrier made of aluminum profile, extruded, traffic white, similar to RAL 9016. Polycarbonate sensor, UV resistant. Simple clipping for electrical contact and mechanical fixing in system-bound LINA EVO mounting rail. Colour and optical coding for easy mounting. Mechanical coding to prevent incorrect mounting (anti-twist protection). Nominal voltage 230 V AC 50 Hz. Electrical adapter for flexible tapping of the power supply in the rail. Colour and optical coding for easy mounting. With light and motion detector. Detection range transverse Ø 15 m, detection field 176 m².
