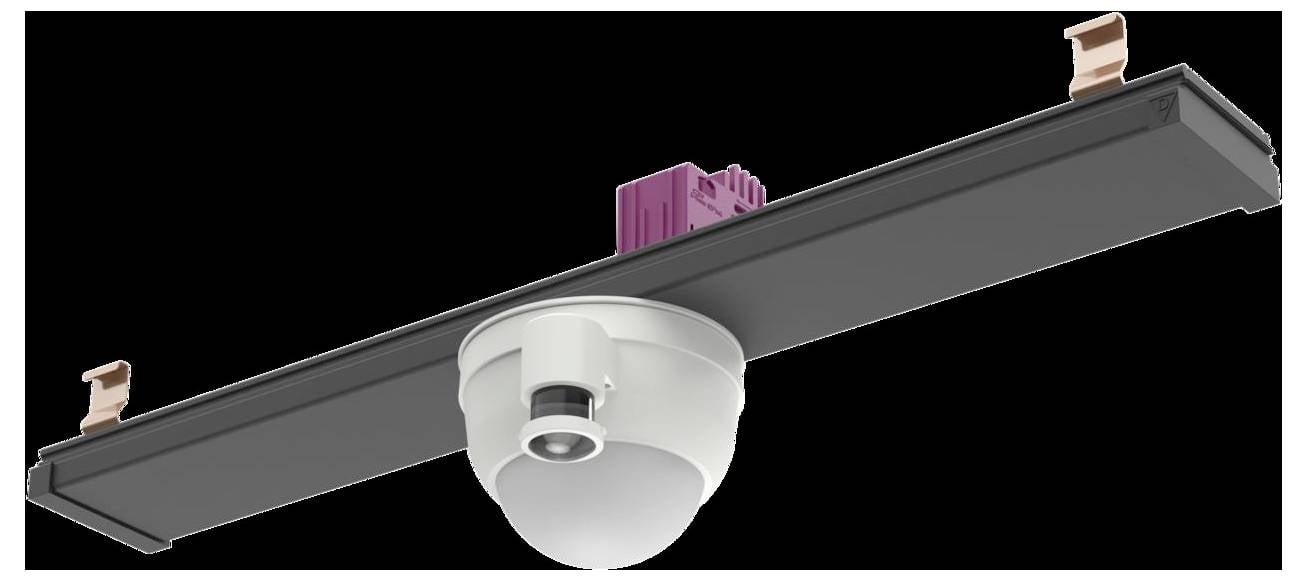

Image similar
EAN:
Part number:
Item no:
Technical specifications
- Height: 142 mm
- Width: 119 mm
- Design: Presence detectors
- Mounting type: Module carrier
- Material: Metal
- Colour: white
- Surface protection: Untreated
- Transparent: No.
- Design of surface: Matt
- KNX bus system: No.
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: DALI
- Number of channels: 1
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- Wireless bidirectional: No
- With bus connection: Yes
- Suitable for wall mounting: No.
- Suitable for ceiling mounting: No.
- With connection cable: No.
- Material quality: Other
- RAL number (similar): 9005
- Response brightness adjustable: Yes
- Optimum mounting height 14 m.
- Max. Range to one side: 15 m.
- Max. Range: Front 30 m
- Capturing field Diameter on floor: 30 m.
- Operating mode switch: Yes
- Staircase monitoring: Yes
- Low-level detection/back field monitoring: Yes
- Teach-Function for Response Brightness: Yes
- Animal slope: No.
- Extension input: Yes
- Switch-off delay, self-learning: No.
- Rear field monitoring: No.
- With acoustic sensor: No.
- DALI-2 certified: Yes
- Product type
Sensor module
30 m
- Mounting type
Mount
- Operating voltage
230 V AC
- Similar RAL
9005
- Width
119 mm
- Height
142 mm
- Dim
(W x H) 119 mm x 142 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3552261 RIDI 2500034SW Mount Sensor module
Description
Sensor module application with Bluetooth Low Energy / BLE light and presence sensor (DALI-2
Casambi). Can be used as a presence sensor and/or as a light sensor in a Casambi network. Device carrier made of aluminum profile, extruded, black, similar to RAL 9005. Polycarbonate sensor, UV resistant. Simple clipping for electrical contact and mechanical fixing in system-bound LINA EVO mounting rail. Colour and optical coding for easy mounting. Mechanical coding to prevent incorrect mounting (anti-twist protection). Nominal voltage 230 V AC 50 Hz. Electrical adapter for flexible tapping of the power supply in the rail. Colour and optical coding for easy mounting. With light and motion detector. Detection range transverse 30 x 19 m, detection field 446 m². Daylight-dependent presence recognition with adjustable daylight threshold, basic light level and delay times. A maximum of 32 DALI device carriers can be controlled directly via the integrated DALI-2 interface in broadcast mode (all lights behave the same). External, mechanically adjustable to a mounting height of between 5 and 16 m telescopic light sensor. Configurable via Casambi APP The module inserts can be placed variably between the device carriers. Depending on the design, modules cannot be placed in the connector area. Including cover plates/blinds for limiting the sensor detection field.
This text is machine translated.
