Highlights & Details

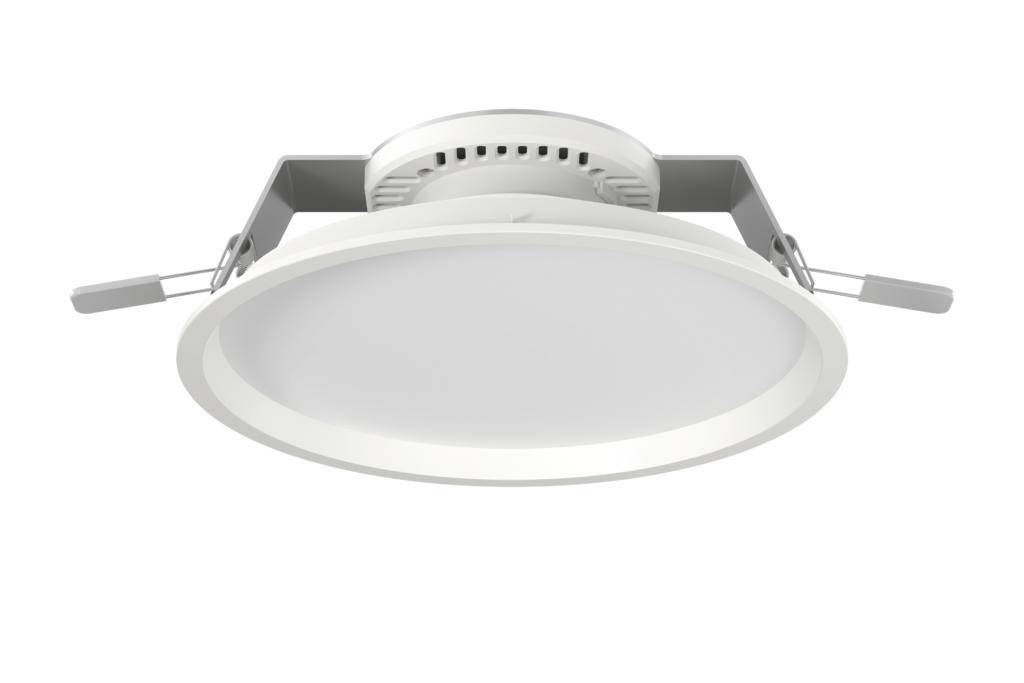

Ridi lights LED downlight 4000K, DALI EDLR-E2 235 #0336663
- Power= 32 W Total luminous flux= 3480 lm Colour temperature= 4000 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Suitable for panel mounting: Yes
- Suitable for mounting on a panel: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: No.
- Suitable for traverse installation: No.
- Suitable for pedestal-/floor mounting: No.
- Suitable for rail mounting: No.
- Suitable for clamp mounting: No.
- Suitable for cable system: No.
- Adjustable: Not adjustable
- With motion detector: No.
- With light sensor: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Housing material: Plastic
- Housing color: White
- Brushed surface: Yes
- Voltage type AC
- Nominal voltage 220..240 V
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimming depends on the operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: White

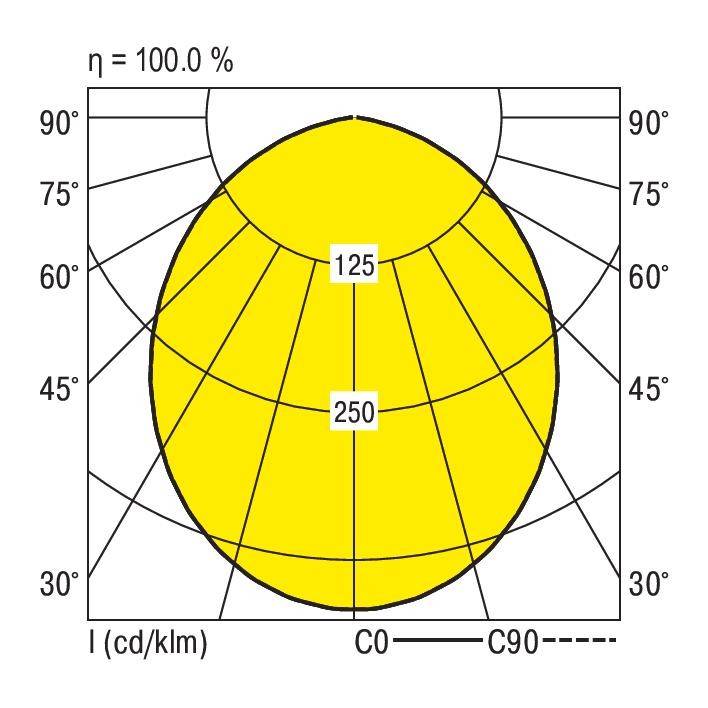

- Light distribution: Symmetric
- Light emission: Direct
- Protection class (IP) IP20
- Impact strength: IK07
- Protection class: I
- Suitable for lamp output 27 W
- Max. System power 32 W
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Rated light current according to IEC 62722-2-1: 3480 lm
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.

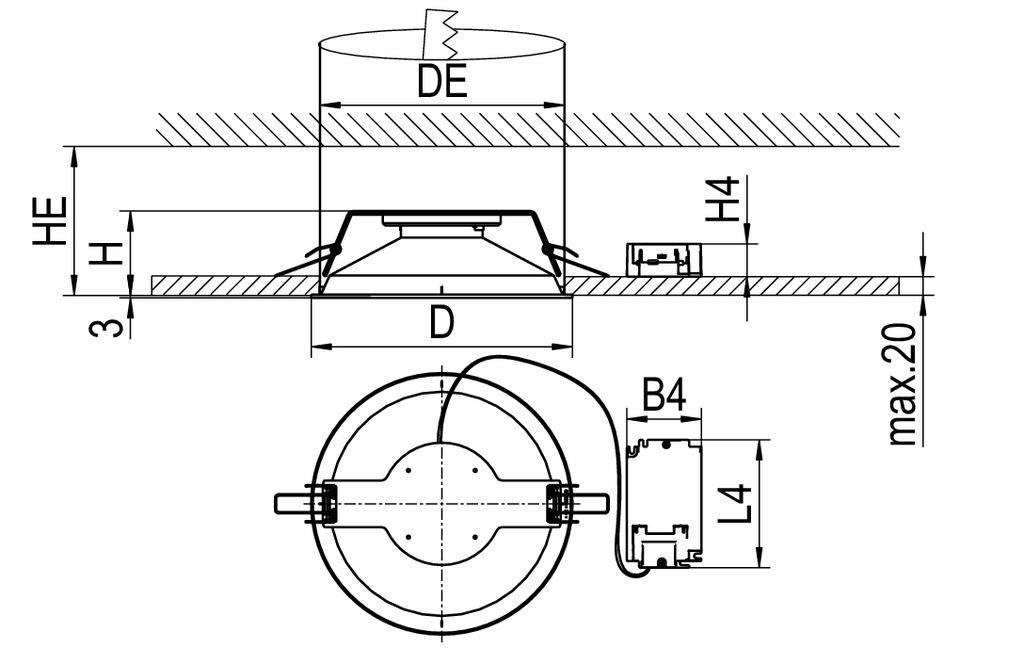

- Height/depth 115 mm
- Outer diameter: 235 mm
- Installation height/depth 120 mm
- Installation diameter 235 mm
- Lamp with limited surface temperature ""D-sign"": No.
- Max. Number of lights circuit breaker B16: 22
- Integrated emergency power supply: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Light output 108 lm/W
- Suitable for screen workstations according to EN 12464-1: No.
- IFTTT support available: No.
- Color consistency (McAdam ellipse): SDCM3
- Glare limiter (UGR): 24.5
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- Product type
LED recessed light
- Operating voltage
230 V
- No. of bulbs
1
Built-in LED
- Bulb type
LED (monochrome)
- Rating per bulb
27 W
32 W
3480 lm
- Total luminous flux
3480 lm
4000 K
- Colour
White
- Light features
Incl. ballast
Dimmable
- Recess diameter
235 mm
- Recess depth
120 mm
- Outside Ø
235 mm
IP20
- Protection class
I
- Factory colour
White
- Material
Plastic
n.rel.
- Dim
(Ø x H) 235 mm x 115.00 mm
Yes
- Light bulb included
Yes
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- Height
115.00 mm
- Depth
115 mm
- (Ø)
235 mm
- Rated luminous flux
3480 lm
- Colour rendering index
80-89
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3140012 RIDI 336663 336663 LED recessed light LED (monochrome) Built-in LED 32 W White
User & Safety Instructions
User & Safety Instructions 3140012 RIDI 336663 336663 LED recessed light LED (monochrome) Built-in LED 32 W White
Description
Downlight EDLR-E2, built-in, traffic white, similar to RAL 9016, DALI, Light distribution symmetric extremely wide-beam, Ø 235 mm, height 115 mm, protection class IP20/IP44 on the room side, protection class I, Rated light current 3480 lm, rated power 32 W, 108 lm/W, light color 840, reference value UGR 28
