Name: RIDI 627853 627853 LED ceiling light LED (monochrome) Bulb cannot be changed 31 W White
Brand: RIDI
SKU: 3140640

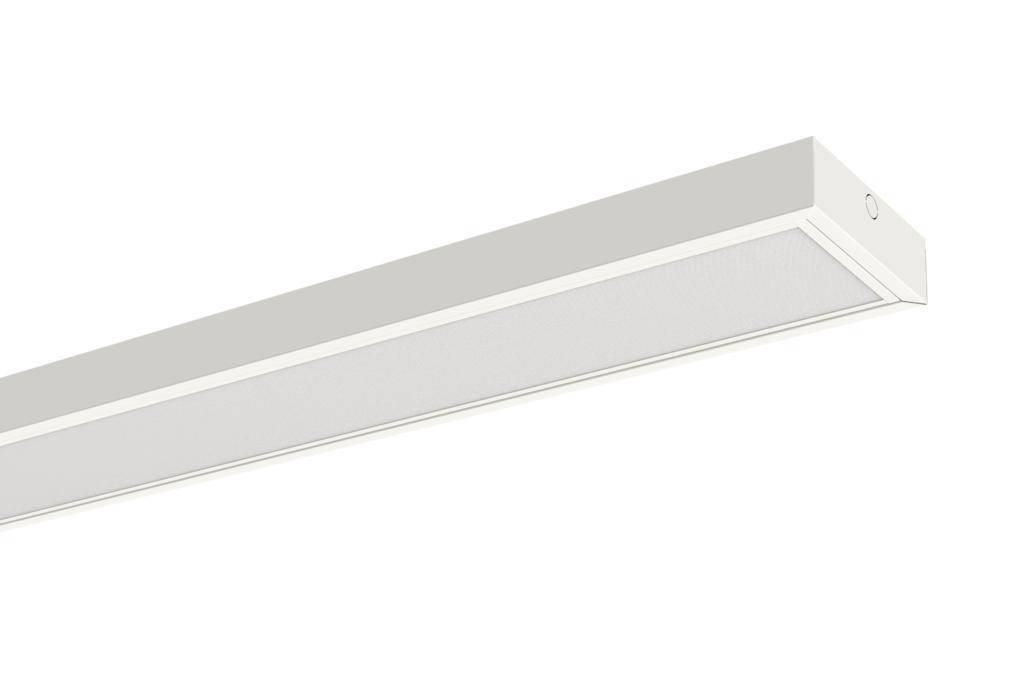

Elongated LED light with a white, rectangular housing.

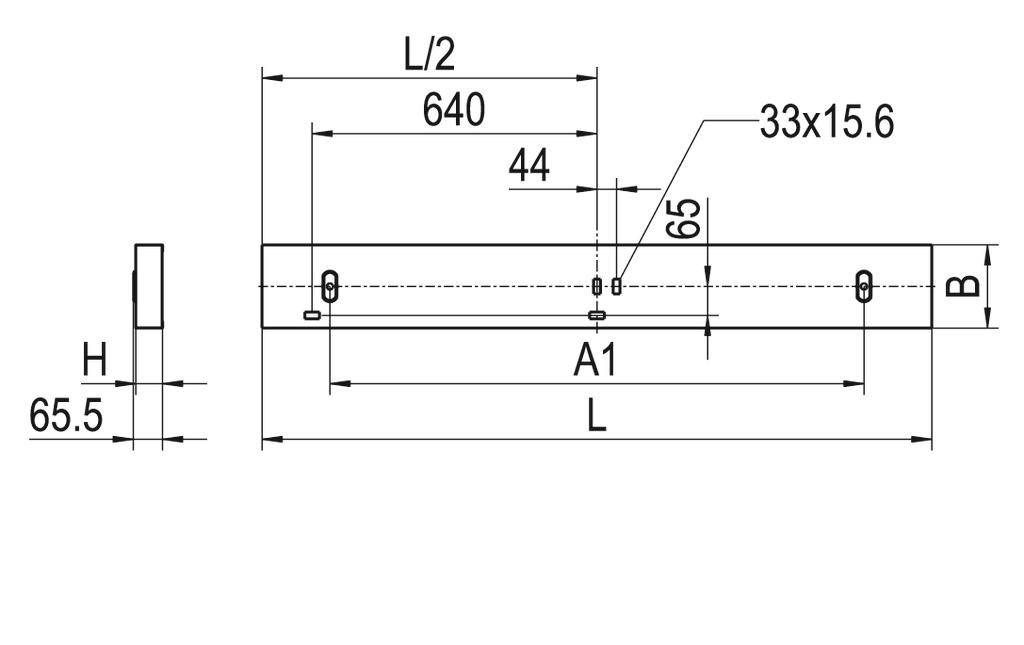

Technical drawing of a rectangular component with dimensions: Length 640, Height 65.5, Holes 33 x 15.6 at 44 spacing.

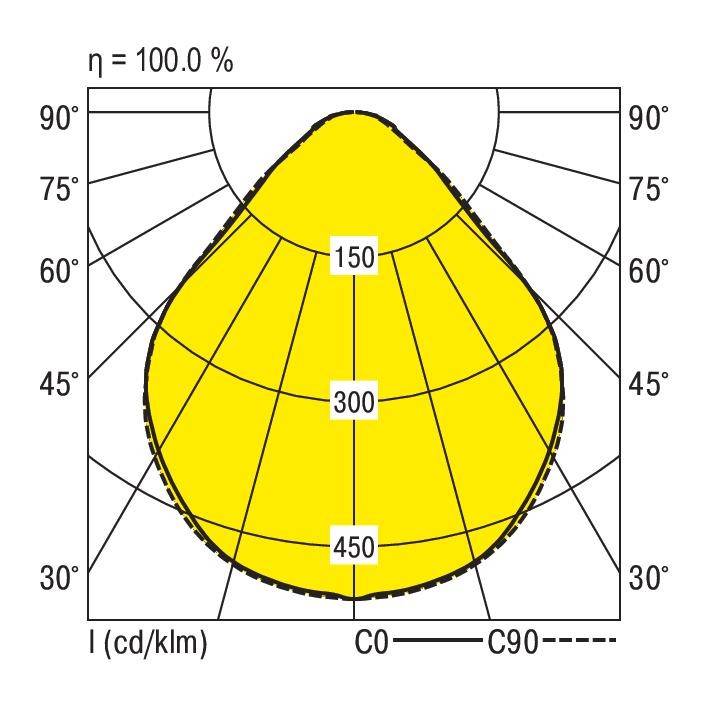

A luminous intensity distribution polar plot shows the radiation intensity of a lamp. 100% efficiency, 150 to 450 cd/lm at various angles.

1/3

RIDI

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ridi-lights LED-mounted light 840 EL-AS1547ND #0627853

Power= 31 W
Total luminous flux= 4500 lm
Colour temperature= 4000 K
White

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for wall mounting: No.
Suitable for suspended engine mounting: No.
Suitable for ceiling mounting: No.
Suitable for panel mounting: Yes
Suitable for mounting on a panel: No.
Suitable for light band configuration: No.
Suitable for screen workstations according to EN 12464-1: No.
Material of housing: Steel
Surface protection housing: Powder-coated
Housing color: White
Voltage type AC
Nominal voltage 220..240 V
Nominal current: 220000 mA
Operating device: LED operating device current-controlled
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
Dimming DALI-2: No.
DALI dimming: No.
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Dimming depends on the operating device: Yes
Without dimming function: Yes
Light distribution: Symmetric
Color consistency (McAdam ellipse): SDCM3
Light emission: Direct
Rated life L80/B10 at 25 °C: 80000 h
Max. Number of lights circuit breaker B16: 23
Max. Number of lamps line circuit breakers C16: 39
Impact strength: IK07
Protection class: I
Lamp with limited surface temperature "D-sign": No.
Integrated emergency power supply: No.
With motion detector: No.
With light sensor: No.
With air vents: No.
Filament testing according to IEC 60695-2-11:650°C - 30 s.
Max. System power 31 W
Light output 145 lm/W
Rated light current according to IEC 62722-2-1: 4500 lm
Light color: White
Colour temperature: 4000 K
Color Rendering Index CRI: 80-89
Width 187 mm
Height/depth 60 mm
Length: 1555 mm
Glare limiter (UGR): 19.1
Adjustable color temperature: No.
Luminous flux can be set: No
Adjustable radiation angle: No.
Operation via Bluetooth: No.
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Bulb: LED not replaceable
With bulb: Yes

Dim: (L x W x H) 1555.00 x 187.00 x 60.00 mm

Operating voltage: 230 V

Product type: LED ceiling light

Width: 187.00 mm

Bulb type: LED (monochrome)

Height: 60.00 mm

: Bulb cannot be changed

Length: 1555.00 mm

Depth: 60 mm

: 31 W

Light features: Incl. ballast

Protection class: I

Factory colour: White

Material: Steel

: n.rel.

Colour rendering index: 80-89

Colour: White

Light bulb included: Yes

: 4000 K

Colour temperature (max.): 4000 K

Colour temperature (min.): 4000 K

Colour temperature range: 4000 - 4000 K

Total luminous flux: 4500 lm

: 4500 lm

Rated luminous flux: 4500 lm

Nominal voltage: 230 V

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3140640 RIDI 627853 627853 LED ceiling light LED (monochrome) Bulb cannot be changed 31 W White

User & Safety Instructions

User & Safety Instructions 3140640 RIDI 627853 627853 LED ceiling light LED (monochrome) Bulb cannot be changed 31 W White

Description

Ceiling lamp EL, Annex, white, On/Off, light emission direct, Opal wide-radiating cover, length 1555 mm, width 187 mm, height 60 mm, protection class IP20/IP40 room side, IK07 impact strength, Rated light current 4500 lm, rated power 31 W, 145 lm/W, light color: 840, Reference value UGR 19

This text is machine translated.
