Name: RIDI 637763 637763 LED ceiling light LED (monochrome) 18 W White
Brand: RIDI
SKU: 3141482

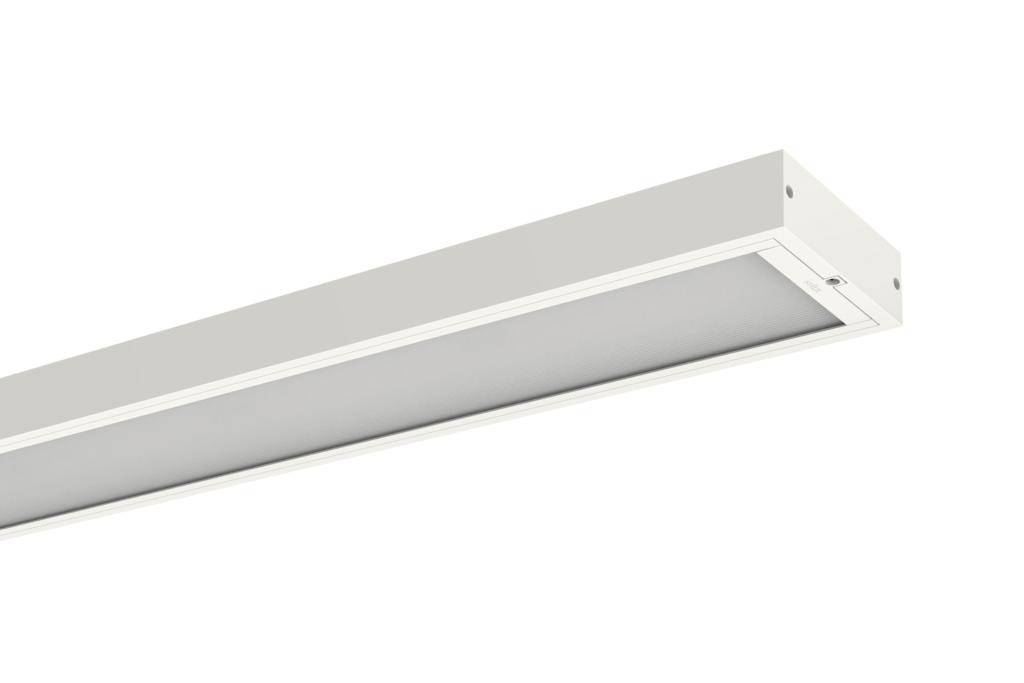

White rectangular ceiling light with minimalist design, suitable for office or living spaces.

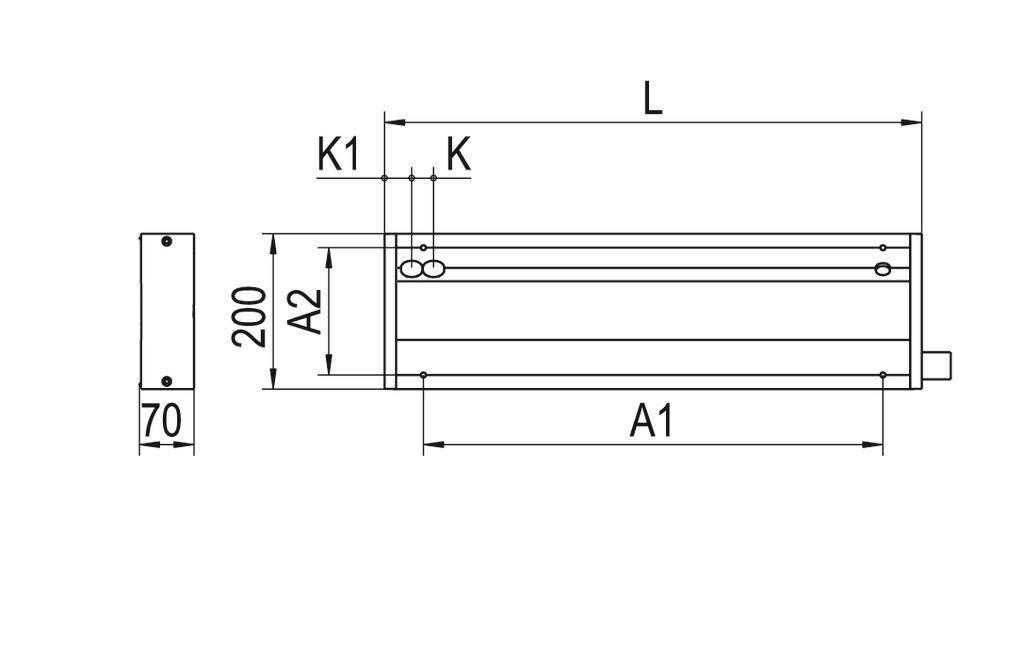

Technical drawing of a rectangular component with dimensions 70 mm x 200 mm. Lengths L, K, K1, A1 and A2 are marked.

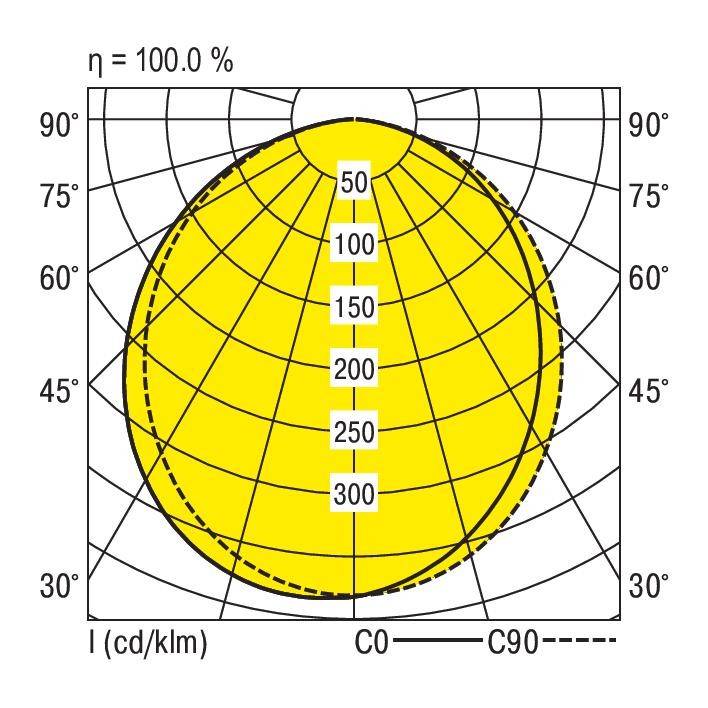

Diagram shows a polar luminous intensity distribution with iso-candela lines. Yellow filled shape reflects the luminous intensity direction.

1/3

RIDI

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ridi-lights LED-attachment lamp 840, DALI 2, DT6, ws M200-A069 #0637763

Power= 18 W
Total luminous flux= 1990 lm
Colour temperature= 4000 K
White

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for wall mounting: Yes
Suitable for suspended engine mounting: No.
Suitable for ceiling mounting: Yes
Suitable for panel mounting: No.
Suitable for mounting on the panel: Yes
Suitable for light band configuration: No.
Suitable for screen workstations according to EN 12464-1: No.
Suitable for the number of bulbs: 2
Material of housing: Aluminium
Surface protection housing: Powder-coated
Housing color: White
Cover material: Matt/satin plastic
Design of grid: Without
Voltage type AC/DC
Nominal voltage 220..240 V
Nominal current: 220000 mA
Operating device: LED operating device current-controlled
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
Dimming DALI-2: No.
DALI dimming: Yes
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Dimming depends on the operating device: Yes
Without dimmer function: No.
Light distribution: Asymmetric
Color consistency (McAdam ellipse): SDCM3
Light emission: Direct
Max. Number of lights circuit breaker B16: 21
Max. Number of lamps line circuit breakers C16: 35
Protection class (IP) IP65
Impact strength: IK08
Protection class: I
Lamp with limited surface temperature "D-sign": No.
Suitable for emergency lighting: Yes
Integrated emergency power supply: No.
With motion detector: No.
With light sensor: No.
With air vents: No.
Filament testing according to IEC 60695-2-11:650°C - 30 s.
Max. System power 18 W
Light output 110 lm/W
Rated light current according to IEC 62722-2-1: 1990 lm
Light color: White
Colour temperature: 4000 K
Color Rendering Index CRI: 80-89
Width 200 mm
Height/depth 70 mm
Length: 690 mm
Glare limiter (UGR): 22.4
Adjustable color temperature: No.
Luminous flux can be set: No
Adjustable radiation angle: No.
Operation via Bluetooth: No.
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Bulb: LED not replaceable
With bulb: Yes

Dim: (L x W x H) 690.00 x 200.00 x 70.00 mm

Operating voltage: 230 V

No. of bulbs: 2

Product type: LED ceiling light

Width: 200.00 mm

Bulb type: LED (monochrome)

Height: 70.00 mm

Length: 690.00 mm

Depth: 70 mm

: 18 W

Light features: Dimmable

Protection class: I

: IP65

Factory colour: White

Material: Aluminium

: n.rel.

Colour rendering index: 80-89

Colour: White

Light bulb included: Yes

: 4000 K

Colour temperature (max.): 4000 K

Colour temperature (min.): 4000 K

Colour temperature range: 4000 - 4000 K

Total luminous flux: 1990 lm

: 1990 lm

Rated luminous flux: 1990 lm

Nominal voltage: 230 V

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3141482 RIDI 637763 637763 LED ceiling light LED (monochrome) 18 W White

User & Safety Instructions

User & Safety Instructions 3141482 RIDI 637763 637763 LED ceiling light LED (monochrome) 18 W White

Description

Ceiling lamp M200, mounting, traffic white, similar to RAL 9016, DALI-2, Direct light output, satin finish oblique light cover, length 690 mm, width 200 mm, height 70 mm, Protection class IP65, shock resistance IK08, rated light current 1990 lm, rated power 18 W, 110 lm/W, Light color 840, reference value UGR 22
