1/3
EAN:
Part number:
Item no:
Highlights & Details
Ridi-Lamp LED built-in light 3000K DALI EBRE-LED 22 #0832884
- Power= 22 W Total luminous flux= 1790 lm Colour temperature= 3000 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for mounting on a panel: No.
- Suitable for light band configuration: No.
- Workplace training material - EN 12464-1: Yes
- Suitable for the number of bulbs: 2
- Material of housing: Steel
- Surface protection housing: Powder-coated
- Housing color: White
- Voltage type AC
- Nominal voltage 220..240 V
- Nominal current: 1793000 mA
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: Yes
- Without dimmer function: No.

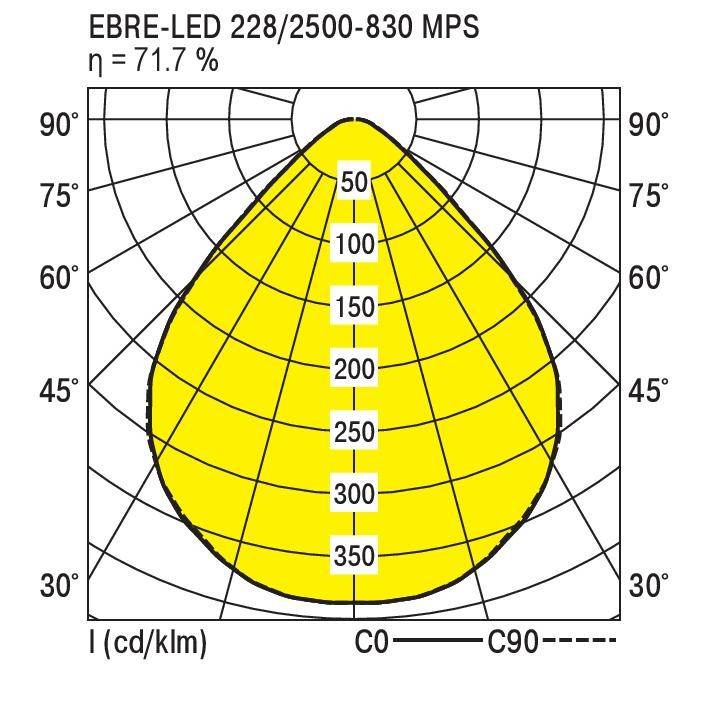

- Light distribution: Symmetric
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct
- Rated life L80/B10 at 25 °C: 95000 h
- Max. Number of lights circuit breaker B16: 13
- Max. Number of lamps line circuit breakers C16: 20
- Protection class (IP) IP20
- Protection class: I
- Lamp with limited surface temperature ""D-sign"": No.
- Suitable for emergency lighting: Yes
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- Covering of the lamp with thermal insulation material is possible: No.
- With air vents: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Suitable for lamp output 7 W
- Max. System power 22 W
- Light output 81 lm/W
- Rated light current according to IEC 62722-2-1: 1790 lm
- Light color: White
- Colour temperature: 3000 K
- Color Rendering Index CRI: 80-89

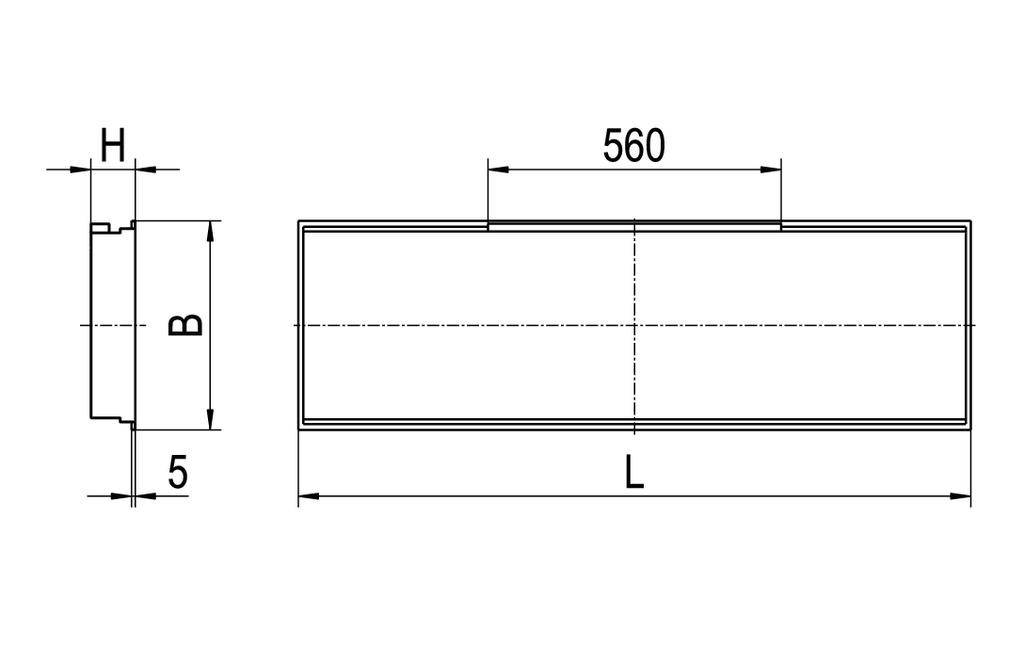

- Width 310 mm
- Height/depth 60 mm
- Length: 1247 mm
- Mounting length 1229 mm
- Mounting width 292 mm
- Glare limiter (UGR): 12.6
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Operation via Bluetooth: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Product type
LED recessed light
- Operating voltage
230 V
- No. of bulbs
2
Built-in LED
- Bulb type
LED (monochrome)
- Rating per bulb
7 W
22 W
1790 lm
- Total luminous flux
1790 lm
3000 K
- Colour
White
- Light features
Dimmable
- Recess length
1229 mm
- Recess width
292 mm
- External length
1247 mm
- External width
310 mm
IP20
- Protection class
I
- Factory colour
White
- Material
Steel
n.rel.
- Dim
(L x W x H) 1247.00 x 310.00 x 60.00 mm
Yes
- Light bulb included
Yes
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 3000 K
- Width
310.00 mm
- Height
60.00 mm
- Length
1247.00 mm
- Depth
60 mm
- Rated luminous flux
1790 lm
- Colour rendering index
80-89
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3145842 RIDI 832884 832884 LED recessed light LED (monochrome) Built-in LED 22 W White
User & Safety Instructions
User & Safety Instructions 3145842 RIDI 832884 832884 LED recessed light LED (monochrome) Built-in LED 22 W White
Description

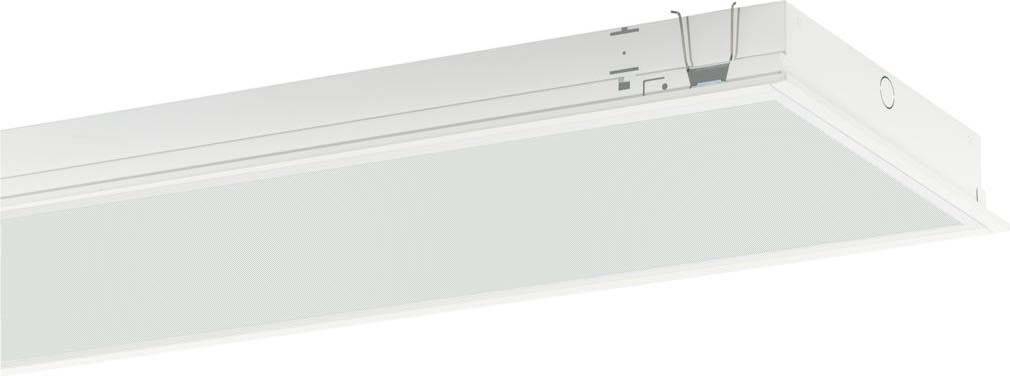

Ceiling lamp EBRE, installed, traffic white, similar to RAL 9016, DALI, Direct light emission, wide microprismatic cover, length 1247 mm, width 310 mm, height 60 mm, Protection type IP20, Rated light current 1790 lm, Rated power 22 W, 81 lm/W, light color 830, Reference value UGR 12
This text is machine translated.
This text is machine translated.
