Ridi-lights LED-built-in light 840, DALI EL-ES1547DD #0838052
- Power= 42 W Total luminous flux= 5460 lm Colour temperature= 4000 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: No.
- Suitable for panel mounting: Yes
- Suitable for mounting on a panel: No.
- Suitable for light band configuration: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Suitable for the number of bulbs: 1
- Material of housing: Steel
- Surface protection housing: Powder-coated
- Housing color: White
- Cover material: Transparent plastic
- Design of grid: Without
- Voltage type AC
- Nominal voltage 220..240 V
- Nominal current: 5460000 mA
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: Yes
- Without dimmer function: No.

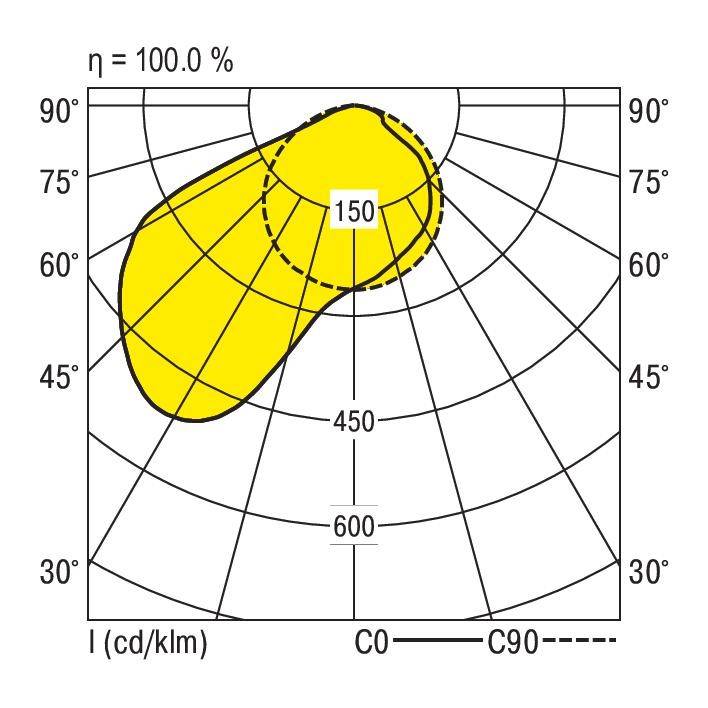

- Light distribution: Asymmetric
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct
- Rated life L80/B10 at 25 °C: 95000 h
- Max. Number of lights circuit breaker B16: 20
- Max. Number of lamps line circuit breakers C16: 30
- Protection class (IP) IP20
- Protection class: I
- Lamp with limited surface temperature "D-sign": No.
- Suitable for emergency lighting: Yes
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- With air vents: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Max. System power 42 W
- Light output 130 lm/W
- Rated light current according to IEC 62722-2-1: 5460 lm
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89

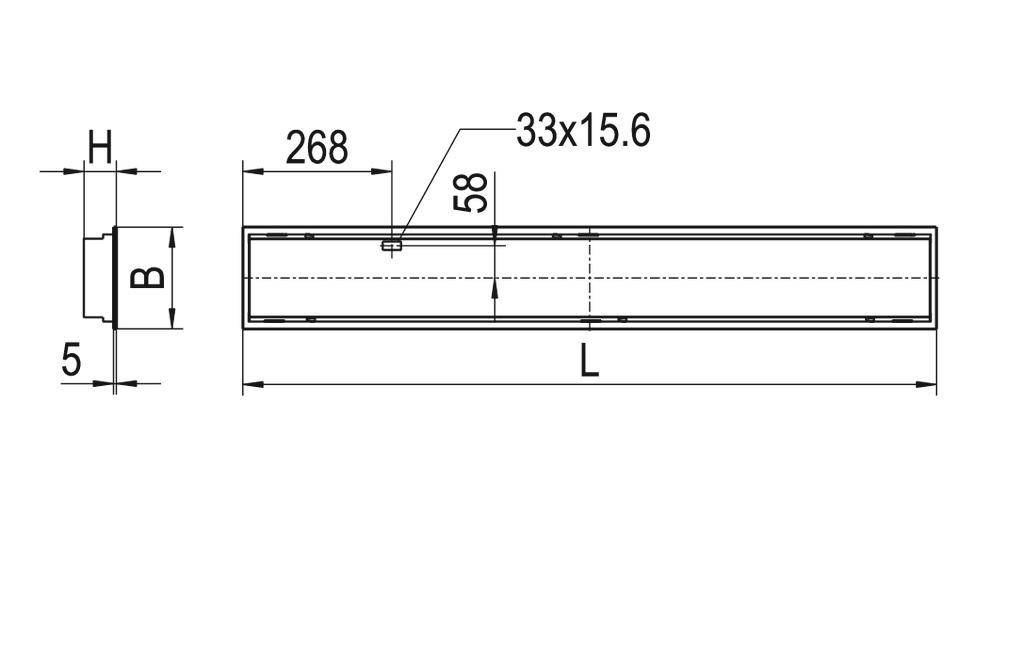

- Width 183 mm
- Height/depth 60 mm
- Length: 1547 mm
- Mounting length 1529 mm
- Mounting width 165 mm
- Glare limiter (UGR): 32.8
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Operation via Bluetooth: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Product type

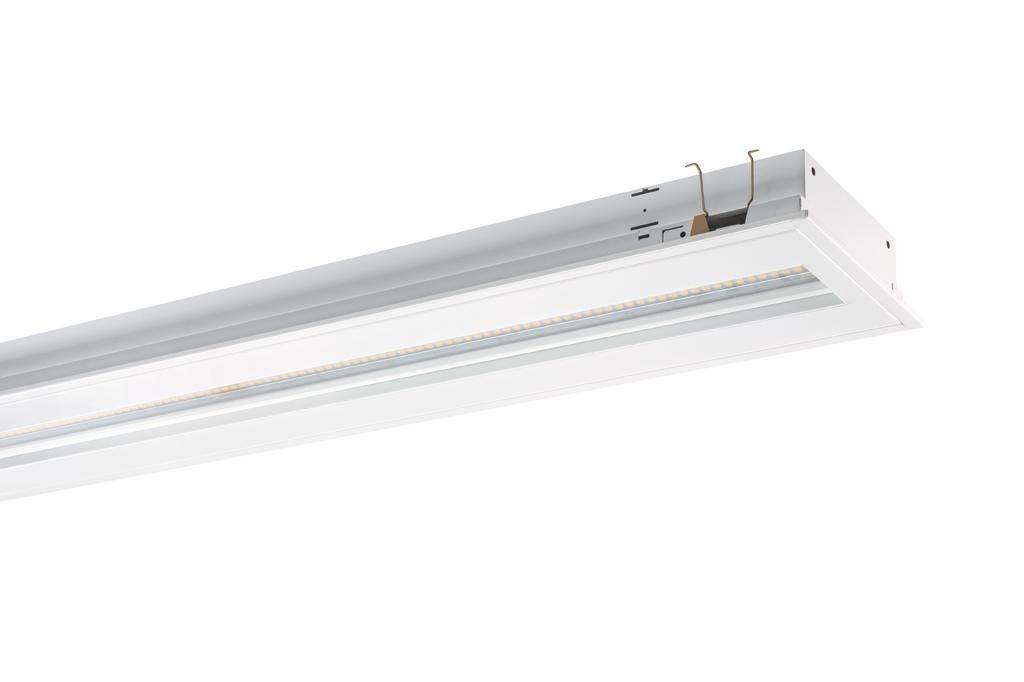

LED recessed light
- Operating voltage
230 V
- No. of bulbs
1
Built-in LED
- Bulb type
LED (monochrome)
- Rating per bulb
42 W
42 W
5460 lm
- Total luminous flux
5460 lm
4000 K
- Colour
White
- Type
Rectangular
- Protection screen
Clear
- Light features
Dimmable
- Recess length
1529 mm
- Recess width
165 mm
- External length
1547 mm
- External width
183 mm
IP20
- Protection class
I
- Factory colour
White
- Material
Steel
n.rel.
- Dim
(L x W x H) 1547.00 x 183.00 x 60.00 mm
Yes
- Light bulb included
Yes
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- Width
183.00 mm
- Height
60.00 mm
- Length
1547.00 mm
- Depth
60 mm
- Rated luminous flux
5460 lm
- Colour rendering index
80-89
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3140749 RIDI 838052 838052 LED recessed light LED (monochrome) Built-in LED 42 W White
User & Safety Instructions
User & Safety Instructions 3140749 RIDI 838052 838052 LED recessed light LED (monochrome) Built-in LED 42 W White
Description
Ceiling lamp EL, installation, traffic white, similar to RAL 9016, DALI, Direct light output, oblique reflector, length 1547 mm, width 183 mm, height 60 mm, Protection type IP20, Rated light current 5460 lm, Rated power 42 W, 130 lm/W, light color 840, Reference value UGR 32
