RIDI 838145 838145 LED recessed light LED (monochrome) Built-in LED 16 W White

A square LED ceiling light with twelve chessboard-style arranged reflectors, suitable for modern lighting solutions.

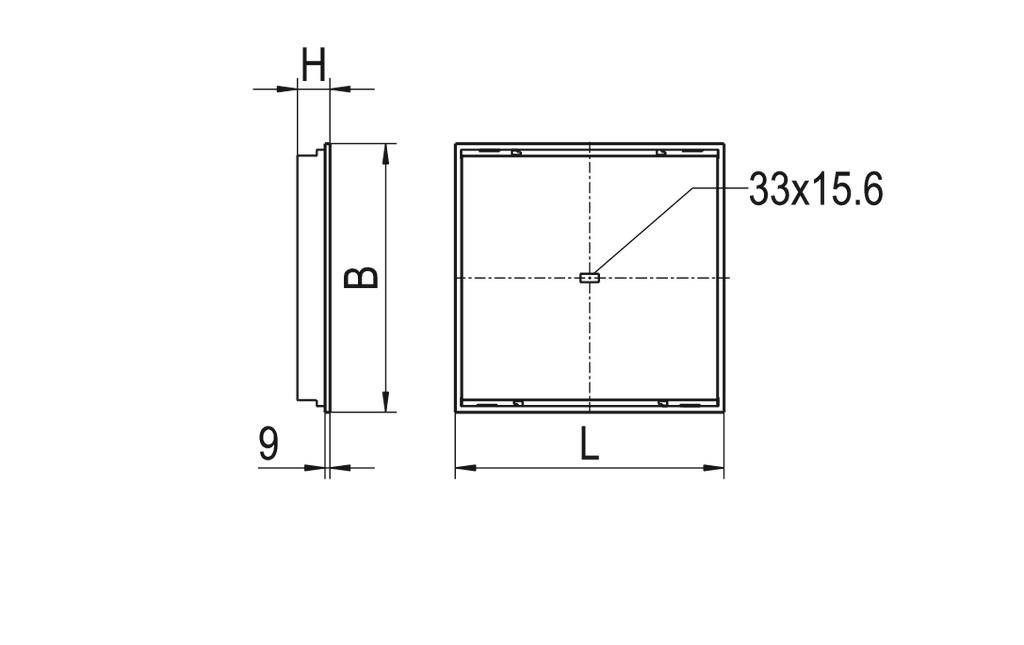

Technical drawing of a rectangular component with dimensions: Length (L), Width (B), Height (H) and dimension 33x15.6.

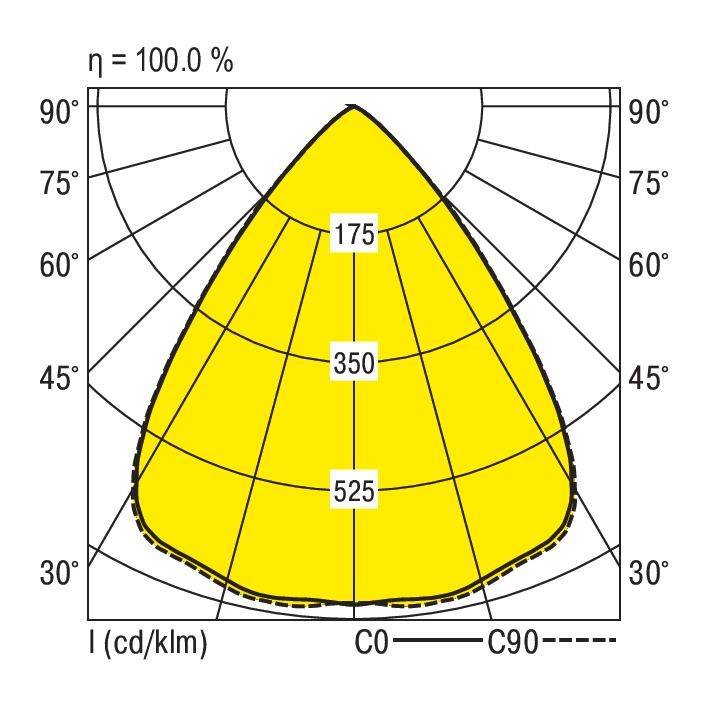

Polar diagram of a light distribution curve: yellow area shows main light intensity between 30° and 90°; markings at 175, 350, 525 cd/klm.
1/3
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

  • Power= 16 W Total luminous flux= 2080 lm White

Technical specifications

Product type

LED recessed light

Operating voltage

230 V

No. of bulbs

3

Built-in LED

Bulb type

LED (monochrome)

Rating per bulb

16 W

16 W

2080 lm

Total luminous flux

2080 lm

Colour

White

Type

Square

Light features

Dimmable

Recess length

292 mm

Recess width

292 mm

External length

310 mm

External width

310 mm

Protection class

I

Factory colour

White

Material

Steel

n.rel.

Dim

(L x W x H) 310.00 x 310.00 x 60.00 mm

Yes

Light bulb included

Yes

Width

310.00 mm

Height

60.00 mm

Length

310.00 mm

Depth

60 mm

Colour rendering index

90-100

Nominal voltage

230 V

Documents & Downloads

Datasheet

Datasheet 3140326 RIDI 838145 838145 LED recessed light LED (monochrome) Built-in LED 16 W White

User & Safety Instructions

User & Safety Instructions 3140326 RIDI 838145 838145 LED recessed light LED (monochrome) Built-in LED 16 W White
