Name: RIDI SPG0630021AH SPG0630021AH LED free-standing light LED (monochrome) Bulb cannot be changed 79 W White
Brand: RIDI
SKU: 3143856

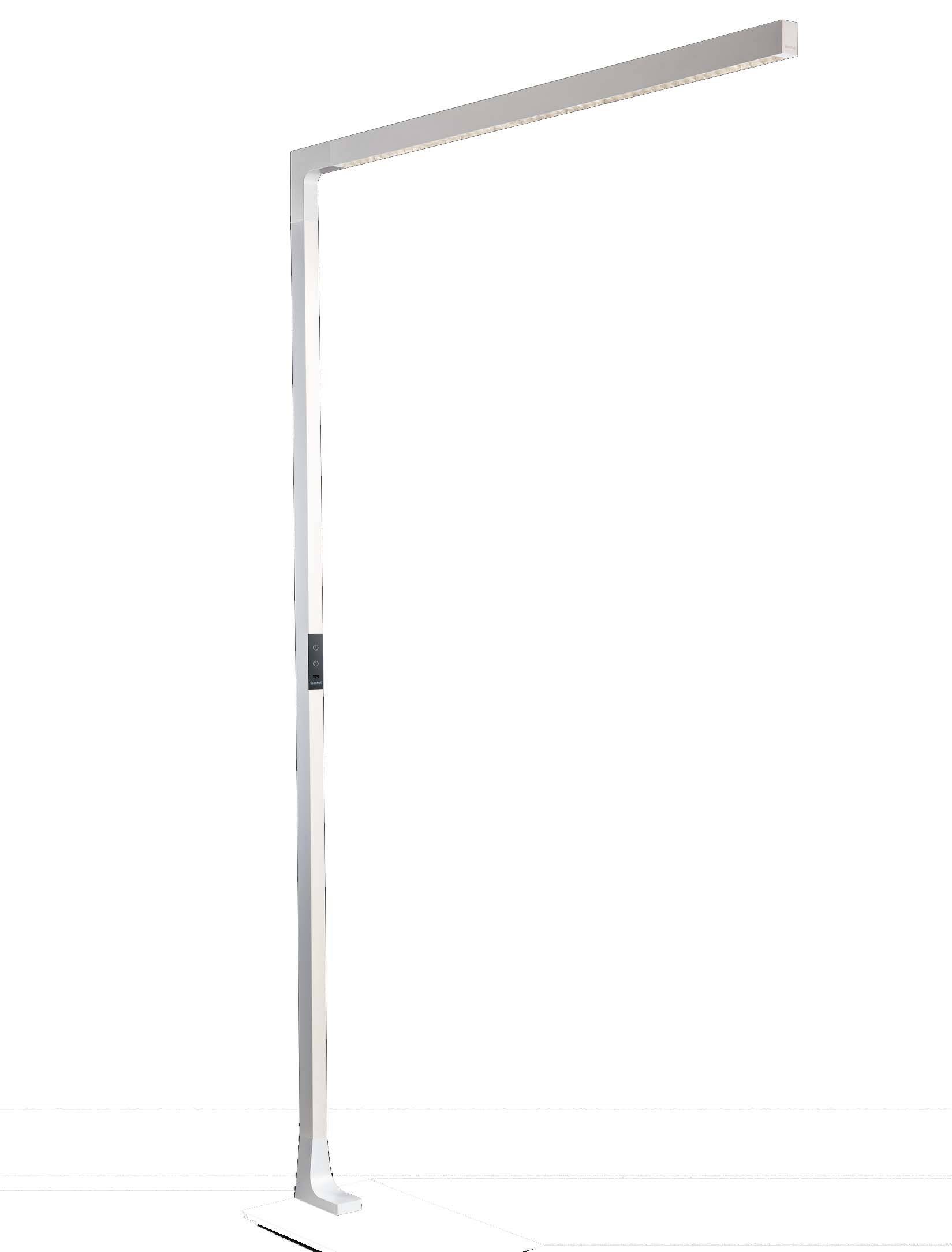

A modern, slender standing lamp with a rectangular frame and integrated LED lighting, suitable for minimalist room design.

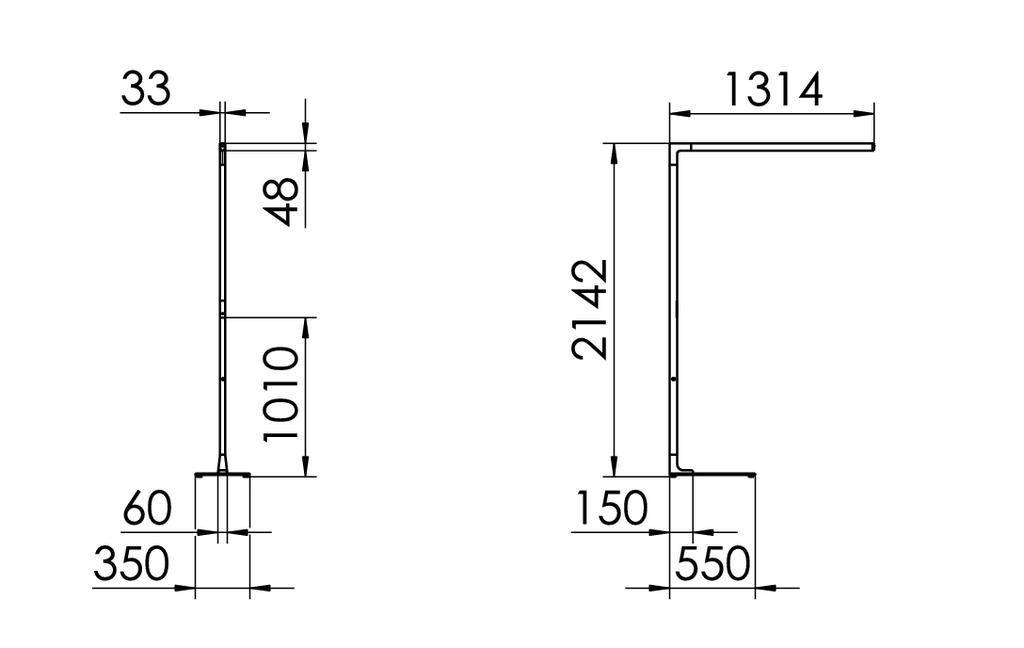

Technical drawing of two side views of a table with dimensions in millimetres. Depicts heights and widths.

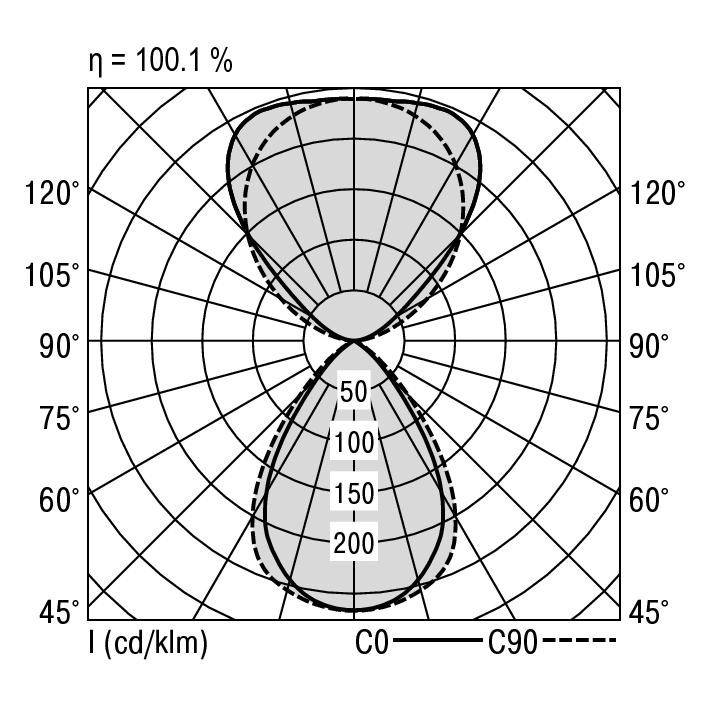

Polar diagram of light distribution for a luminaire, showing two curves: C0 and C90. Maximum luminous intensity at 200 cd/klm. Efficiency: 100.1%.

1/3

RIDI

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ridi-lights LED-standing lamp 4000K ORTO-S 9500-840 MR

Power= 79 W
Total luminous flux= 9530 lm
Colour temperature= 4000 K
White

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for the number of bulbs: 1
Number of lamp heads: 1
Movable light heads: No.
With separate reading light: No.
Direct/indirect shares separately adjustable: No.
Material: Aluminium
Housing color: White
Cover material: Transparent plastic
Voltage type AC
Nominal voltage 220..240 V
Operating device: LED operating device current-controlled
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
DALI dimming: Yes
Dimming DALI-2: No.
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Without dimmer function: No.
Workplace training material - EN 12464-1: Yes
Design of grid: Other
With reflector: No.
Light distribution: Symmetric
Light emission: Direct/indirect
Adjustable: No.
With switch: Yes
With dimmer: Yes
With presence detector: No.
With motion detector: No.
With light sensor: No.
Protection class: I
Suitable for lamp power 33..1 W
Max. System power 79 W
Rated light current according to IEC 62722-2-1: 9530 lm
Light color: White
Colour temperature: 4000 K
Color Rendering Index CRI: 80-89
Color consistency (McAdam ellipse): SDCM3
Adjustable color temperature: No.
Luminous flux can be set: No
Adjustable radiation angle: No.
Width 350 mm
Height/depth 2142 mm
Length: 1314 mm
Electrical connection with connector system: No.
Compatible with Apple HomeKit: No.
Compatible with Amazon Alexa: No.
Compatible with Google Assistant: No.
IFTTT support available: No.
Bulb: LED not replaceable
With bulb: Yes

Product type: LED free-standing light

Height: 2142.00 mm

Operating voltage: 230 V

No. of bulbs: 1

Bulb type: LED (monochrome)

: Bulb cannot be changed

Rating per bulb: 79 W

: 79 W

: 4000 K

Colour: White

: 9530 lm

Total luminous flux: 9530 lm

Light features: Dimmable

Protection class: I

Factory colour: White

Material: Aluminium

Dim: (L x W x H) 1314.00 x 350.00 x 2142.00 mm

: n.rel.

Light bulb included: Yes

Width: 350.00 mm

Length: 1314.00 mm

Rated luminous flux: 9530 lm

Colour rendering index: 80-89

Colour temperature (max.): 4000 K

Colour temperature (min.): 4000 K

Material (details): Aluminium

Nominal voltage: 230 V

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3143856 RIDI SPG0630021AH SPG0630021AH LED free-standing light LED (monochrome) Bulb cannot be changed 79 W White

User & Safety Instructions

User & Safety Instructions 3143856 RIDI SPG0630021AH SPG0630021AH LED free-standing light LED (monochrome) Bulb cannot be changed 79 W White

Description

Standing lamp ORTO, white, DALI, omnidirectional light emission, upper half room light current proportion 62.70 %, lower half room luminous flux share 37.30 %, height 2142 mm, rated light current 9530, rated power 79 W, 120 lm/W, Light color 840, reference value UGR 16
