Name: Rittal CX 6742.000 Free-standing desk (W x H) 1200 mm x 970 mm Steel plate Grey (RAL 7035) 1 pc(s)
Brand: Rittal
SKU: 3389196

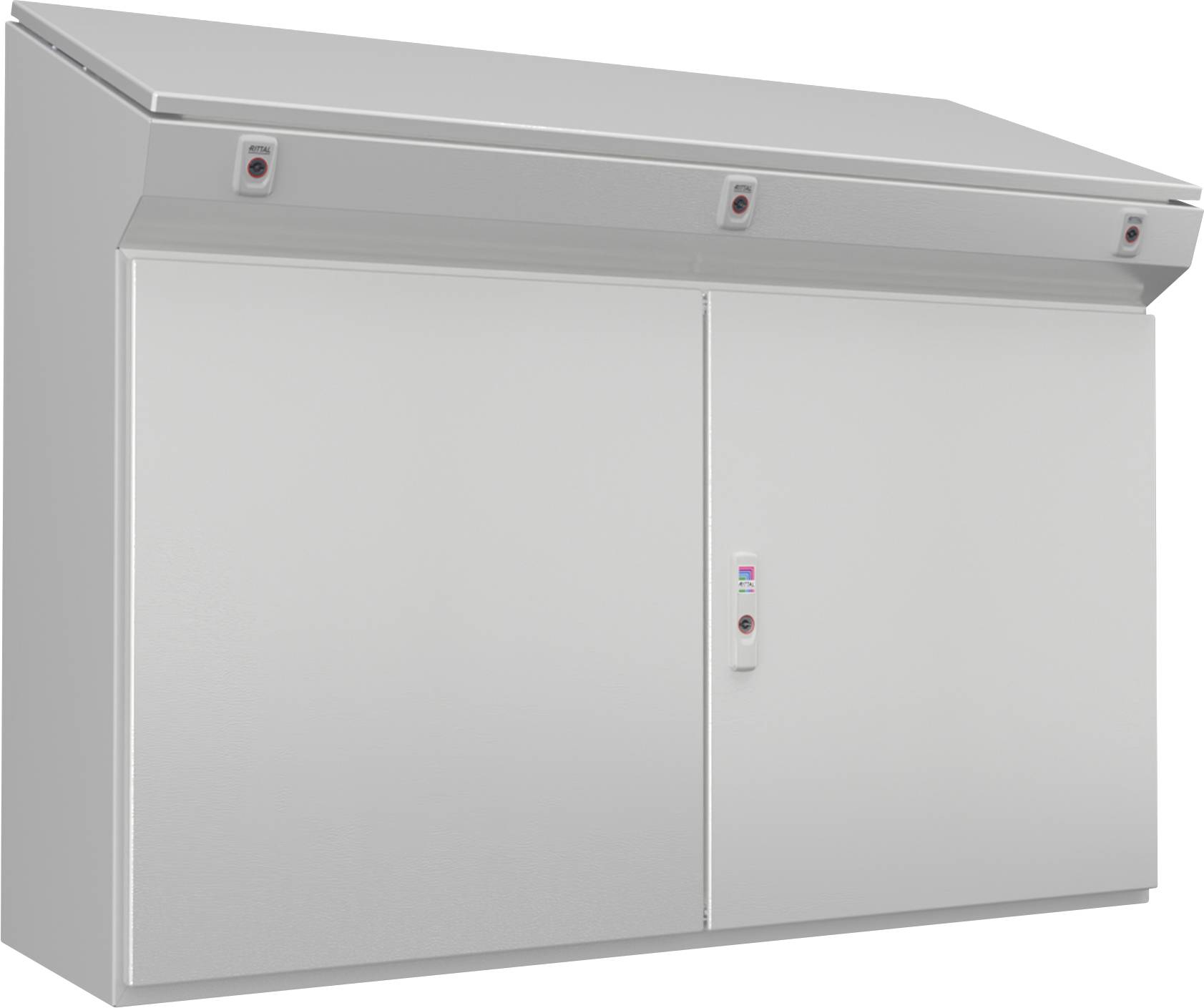

A silver metal cabinet with a slanted roof and two large doors. Three security cameras are positioned at the top.

Product type

Free-standing desk

Material

Steel plate

IP rating

IP55

Width

1200 mm

Height

970 mm

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Material: Housing: Steel sheet 1.5 mm
Door and panel lid: Steel sheet 2.0 mm,circulating foamed PU-sealing
Mounting plate: Steel sheet, 2.5 mm
Net weight: 83 kg
Gross weight: 86.75 kg
Surface: Housing, cover and door: Dip-primed, externally powder coated, textured paint
Galvanised mounting plate
Dimensions: Width 1,200 mm
Height: 970 mm
Top depth 495 mm
Depth down: 400 mm
Colour RAL 7035
Mounting plate dimensions (W x H) 1,120 x 900 mm
IK code: IK10
Number of doors: 2
Base material: Steel sheet
Design: Standing desk
Top depth 495 mm
Depth down: 400 mm
Protection class IP according to IEC 60 529:IP 55

Product type: Free-standing desk

Material: Steel plate

: IP55

Factory colour: Grey (RAL 7035)

Type: 2 door

Front panel size: (W x H) 1120 mm x 900 mm

Width: 1200 mm

Height: 970 mm

Dimensions: Tiefe unten: 400 mm; Tiefe oben: 495 mm

Content: 1 pc(s)

Dim: (W x H) 1200 mm x 970 mm

Weight: 83 kg

Type: CX 6742.000

: Grey

: 1200 mm

: 970 mm

: 400 mm

: 7035

: 2

: Steel

: IP55

: Powder coating

: Desk console

: 12

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3389196 Rittal CX 6742.000 Free-standing desk (W x H) 1200 mm x 970 mm Steel plate Grey (RAL 7035) 1 pc(s)

Description

CX Stand, BHT: 1200x970x400 mm, sheet steel

One-piece stand console for control and monitoring, with large mounting plate and high protection class IP 55 in four different widths.
