Rittal DK 7979.616 7979616 Rack current splitter
EAN:
Part number:
Item no:
Number
Total (€ 575.00 / piece)
€ 575.00
incl. VAT
14-day return policy included
Technical specifications
- Material: Aluminium, painted, red, similar to RAL 3020
- Cover: Plastic PA 6 GF30, black, similar to RAL 9005
- Net weight: 3.3 kg
- Gross weight: 3.5 kg
- Dimensions: Width 44 mm
- Depth: 47 mm
- Length: 1,308 mm.
- Suitable for: Housing type: VX IT Cabinet frame: ≥ 1,800 mm
- TX Colocation Rack: ≥ 1,800 mm
- Benefit: Integrated measurement of current (A); effective power (kW); voltage (V); frequency (Hz); energy (kWh), Phase angle (°)
- Measuring accuracy of ± 2 %
- Design: Red
- Technical data: Fault-tolerant PDU power supply redundant over all phases
- Connection cable, with plug, 3 m, H05VV-F3G4 mm²
- Voltage V, current A, frequency Hz
- LCD display
- Rated operating voltage 230 V, 50 Hz/60 Hz
- Operating temperature range -5°C...45°C.
- Mode of operation: Power measurement for each phase or feed
- Rated output: 7.4 kW
- Storage temperature range -5°C...60°C.
- Connection type (electrical): CEE
- Description of the measurement functions: Measurement per phase or feed
- No. of sockets and type 24 x C13 / 6 x C19
- IEC/EN/60320/C13
- IEC/EN/60320/C19
- Sockets 24 x C 13
- 6 x C 19
- 2-pole with earthing contact, black
- Nominal current (max.) 32 A
- Infeeds: Number: 1
- Phases per feed: 1~
- Long connecting cables, 3 m
- Guidelines: EMC Directive 2014/30/EU
- Low-voltage directive 2014/35/EU
- Humidity (non-condensing): 5...95 %
- Product type
Rack current splitter
- Outlets
30
- No. of PG sockets
30
- No. of IEC C19 16A sockets
6
- No. of IEC C13 10A sockets
24
- Factory colour
Red
- Cable length
3 m
- Weight
3.3 kg
- Width
1308 mm
- Height
44 mm
- Depth
47 mm
Red
44 mm
47 mm
230 V
1
Metric
TRUE
3 m
1308 mm
Connection cable with plug
Vertical
TRUE
TRUE
24
6
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3386784 Rittal DK 7979.616 7979616 Rack current splitter
Description

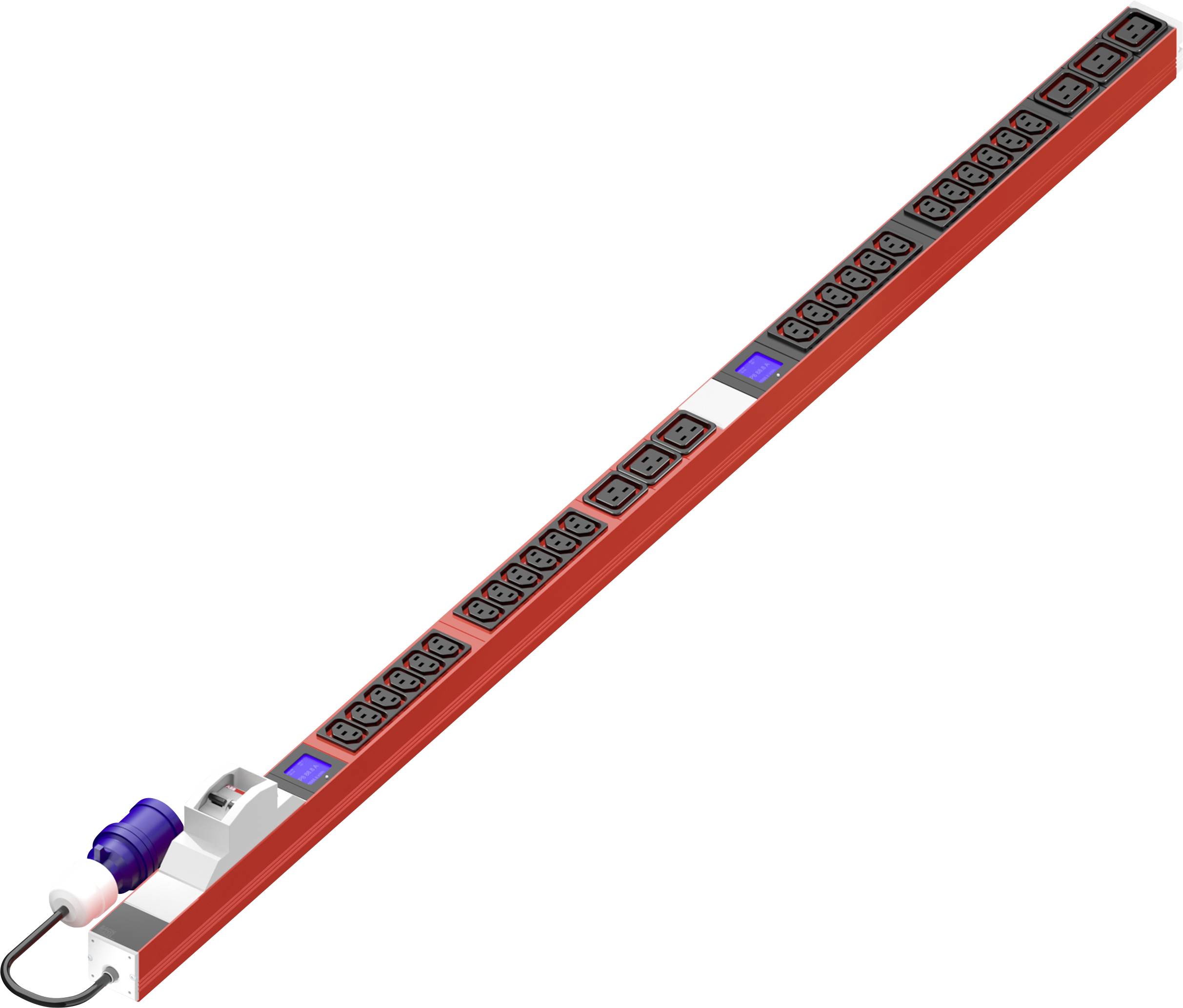

PDU with local power measurement, red, 24x C13, 6x C19, 2-pin with protective contact, black, BHT:44x1308x47 mm
High-end power distribution with local measurement of consumption data - ideally suited for use in modern server racks and colocation data centers.
This text is machine translated.
High-end power distribution with local measurement of consumption data - ideally suited for use in modern server racks and colocation data centers.
