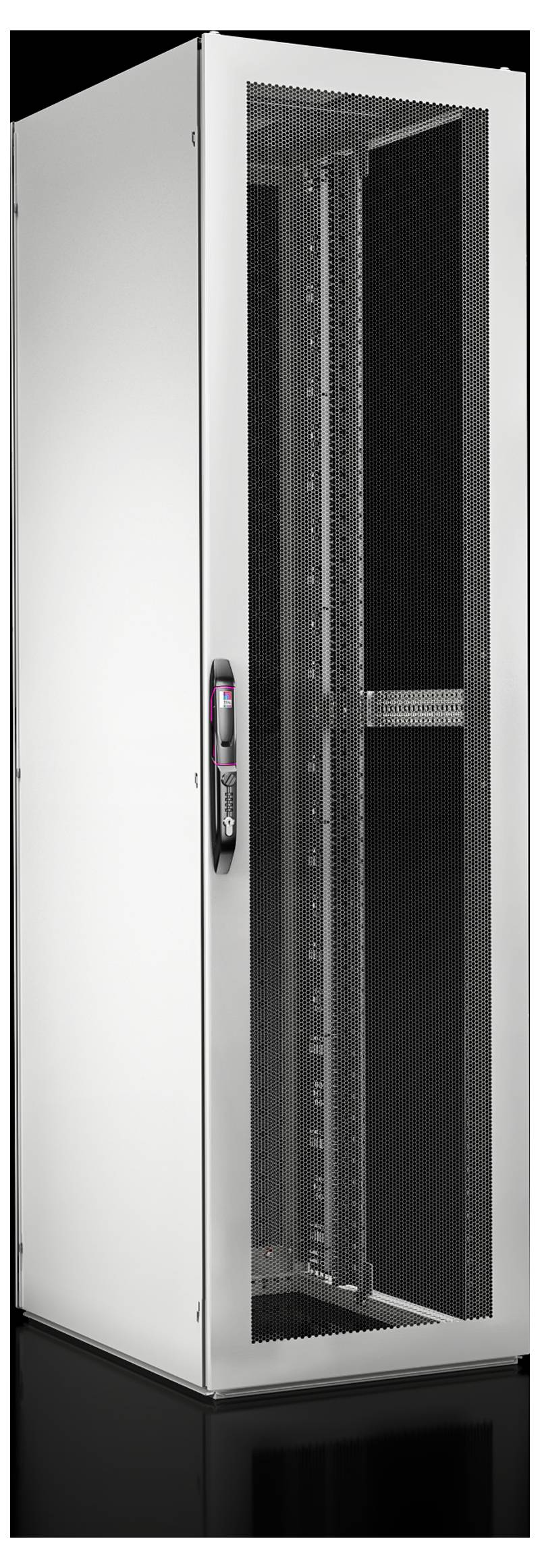

Rittal TX 5540.245 19" server rack cabinet (W x H x D) 600 x 2450 x 1200 mm 52 U Grey (RAL 7035) , Black (RAL 9005)
EAN:
Part number:
Item no:
Technical specifications
- Material: Steel plate
- Net weight: 125 kg
- Gross weight: 132 kg
- Surface: Cabinet scaffold: Dip-primed
- Interior fittings: Painted
- Doors and roof: Dip-primed, powder coated
- Ventilated door, sheet steel
- Dimensions: Width 600 mm
- Height: 2,450 mm
- Depth: 1,200 mm
- Colour: Enclosure frame and roof: RAL 7035
- Door:RAL 7035
- Handle and hinges: RAL 9005
- Load capacity: 15,000 N
- Base color RAL 7035
- Height units 52 HE
- Level distance (supplied): 745 mm
- Distance between the mounting levels min. 115 mm
- Distance between the mounting levels max. 341 mm
- 19" mounting: 600 mm wide cabinet with mounting bracket screwed to the top and bottom of the frame

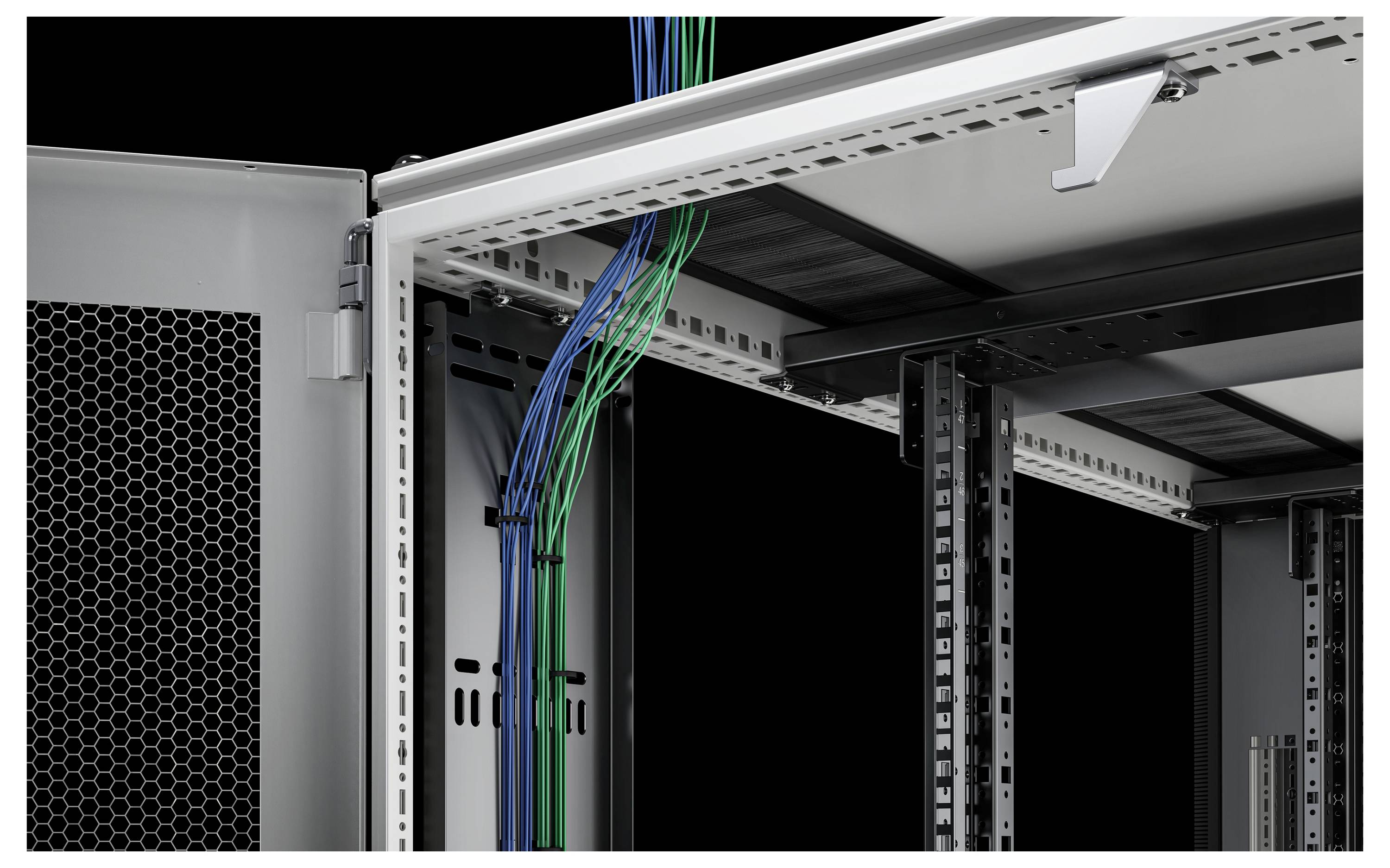

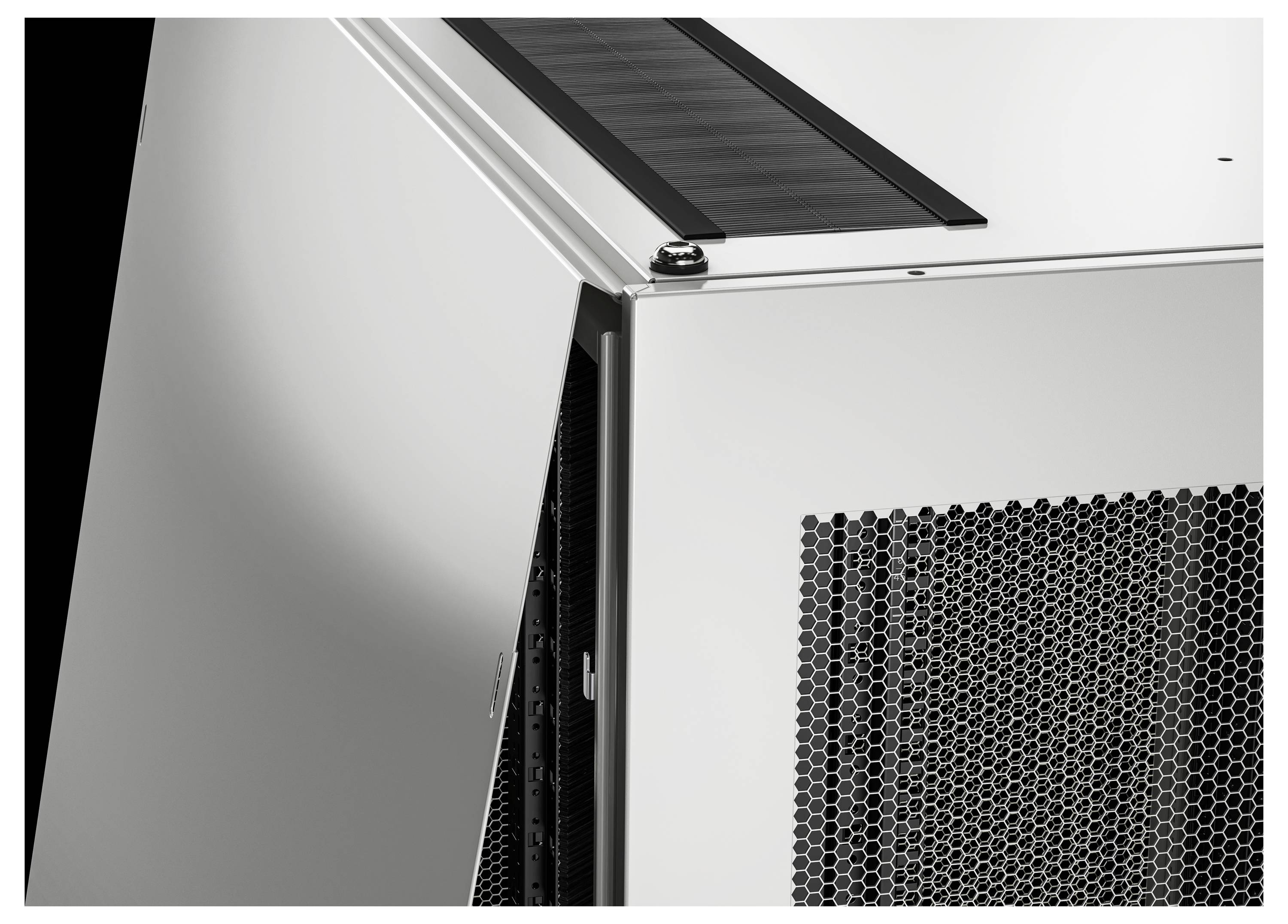

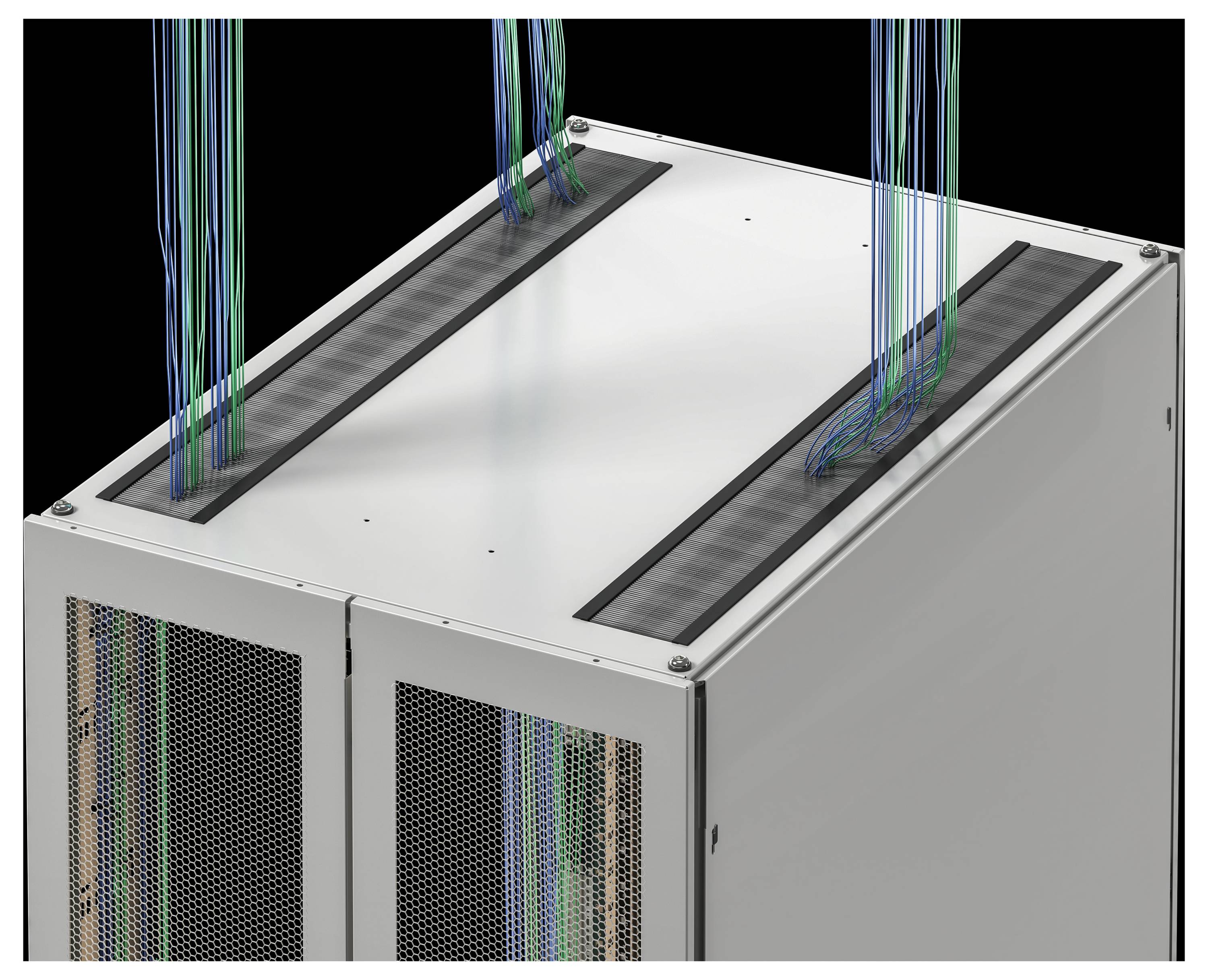

- Roof version: Top panel with cable entry over the entire cabinet depth on the left and right
- Door rear design: Sheet steel door, ventilated
- two-part
- Free area in the perforated plate portion approx. 78 %

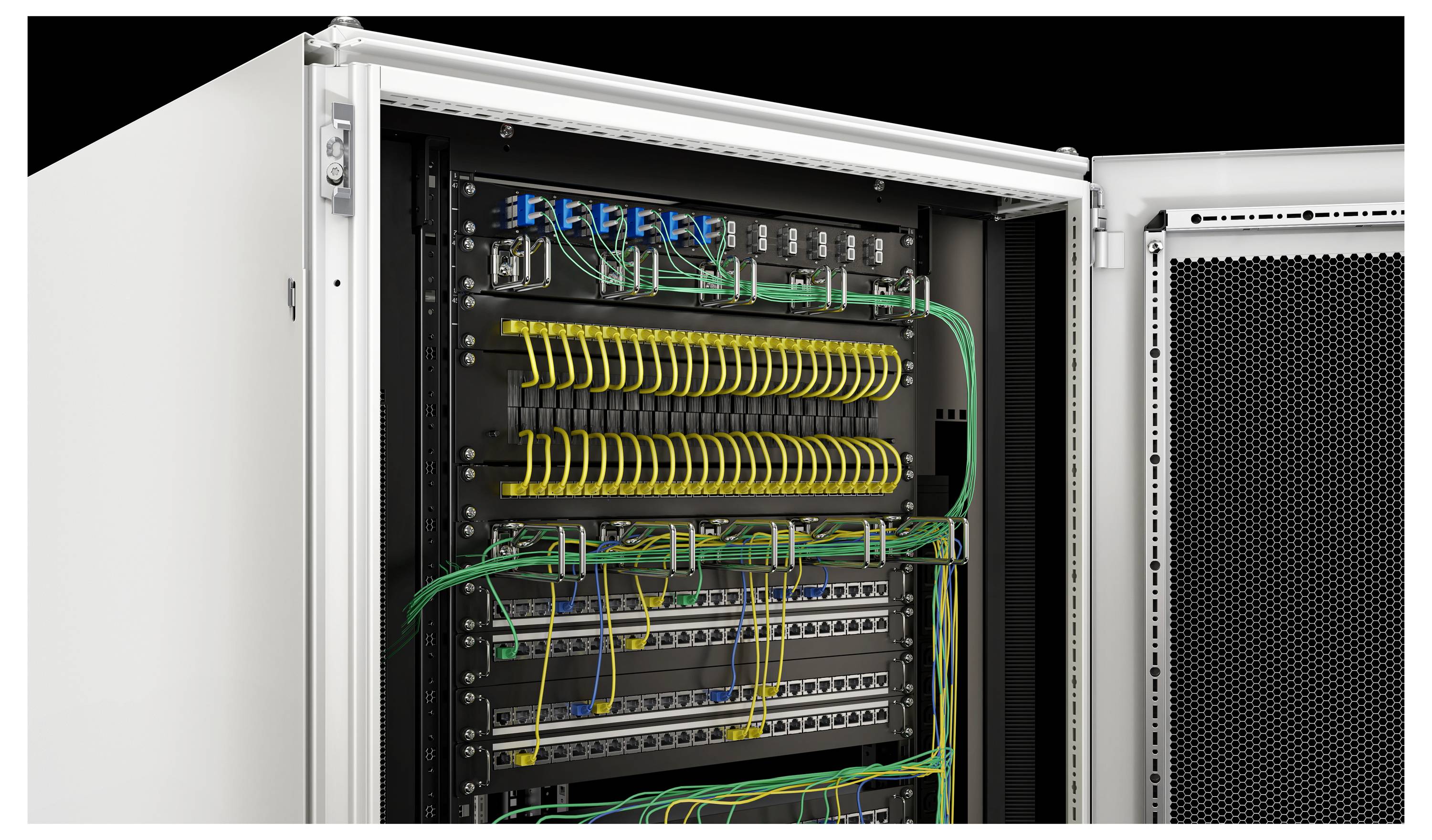

- Front door design: Sheet steel door, ventilated
- Aluminium sheet steel door, ventilated
- one piece
- Free area in the perforated plate portion approx. 78 %
- Floor design: Open
- Design position of profile rails: 19"-level front and rear
- Design: standard
- Door design: Doors ventilated
- Product type
19" server rack cabinet
- Rack unit
52 U
- Width
600 mm
- Height
2450 mm
- Depth
1200 mm
- Material
Steel plate
- Dim
(W x H x D) 600 x 2450 x 1200 mm
- Weight
125 kg
- Factory colour
Grey (RAL 7035)
Black (RAL 9005)
- Rack size
483 mm (19")
- Type
Standard
Black
600 mm
2450 mm
1200 mm
9005
2
Passive
1500 kg
FALSE
Steel
52
FALSE
Powder coating
Front and rear
Crank
TRUE
FALSE
TRUE
TRUE
FALSE
FALSE
482.6 mm (19 inch)
Three-point
Three-point
FALSE
Steel
Steel
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3389247 Rittal TX 5540.245 19" server rack cabinet (W x H x D) 600 x 2450 x 1200 mm 52 U Grey (RAL 7035) , Black (RAL 9005)
Description
TX Colocation Server Cabinet, BHT:600x2450x1200 mm, 52 HE, sheet steel door ventilated at front, sheet steel door ventilated at rear, vertically split, 130°-hinges front and rear
The IT world is changing and the centralization of IT in larger data centers is a continuing trend. Perfectly tailored to the application in the large data center, the TX Colo. Thanks to the pre-conceived configuration the TX Colo. is immediately ready to use, suitable for your application!
This text is machine translated.
The IT world is changing and the centralization of IT in larger data centers is a continuing trend. Perfectly tailored to the application in the large data center, the TX Colo. Thanks to the pre-conceived configuration the TX Colo. is immediately ready to use, suitable for your application!
This text is machine translated.
