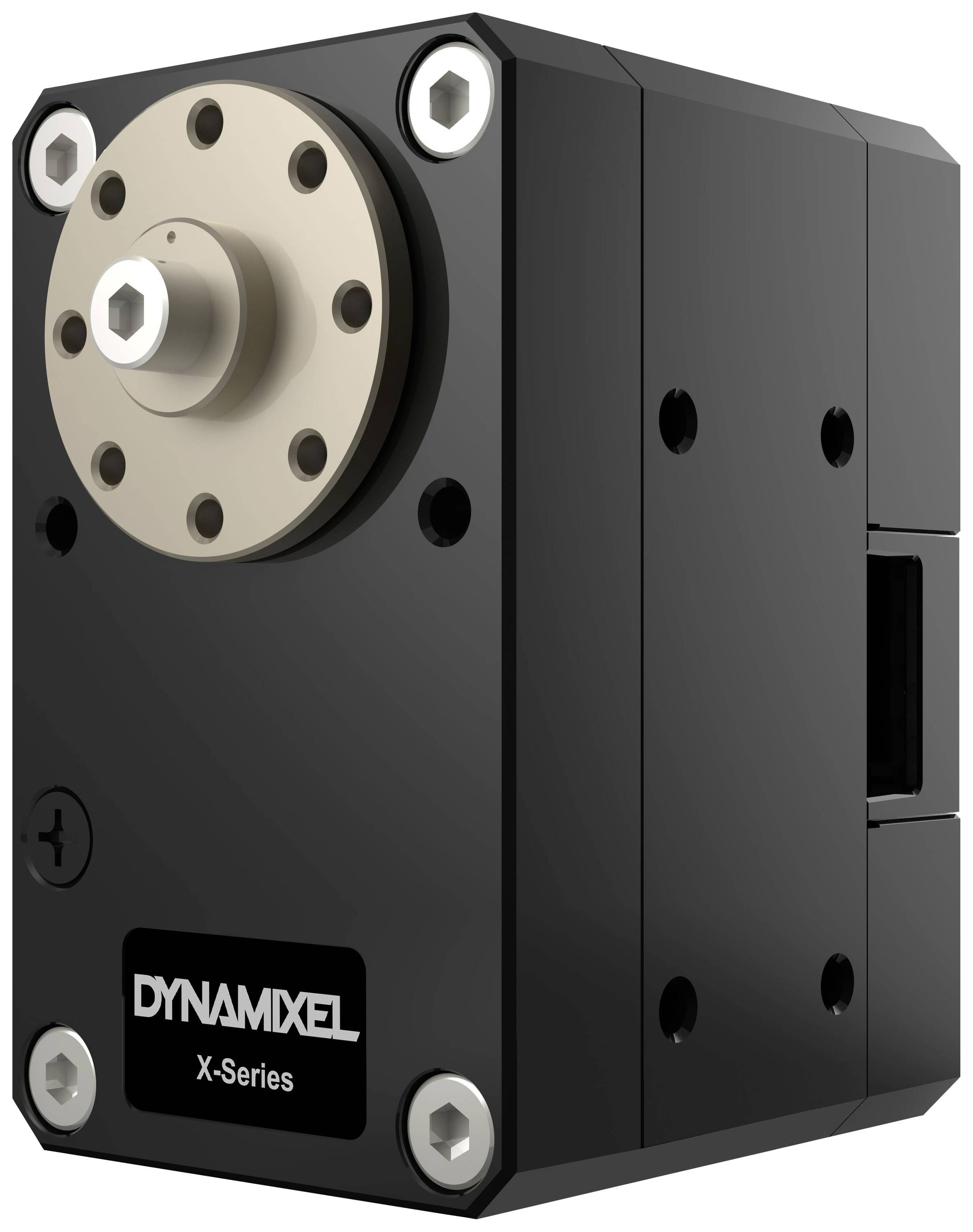

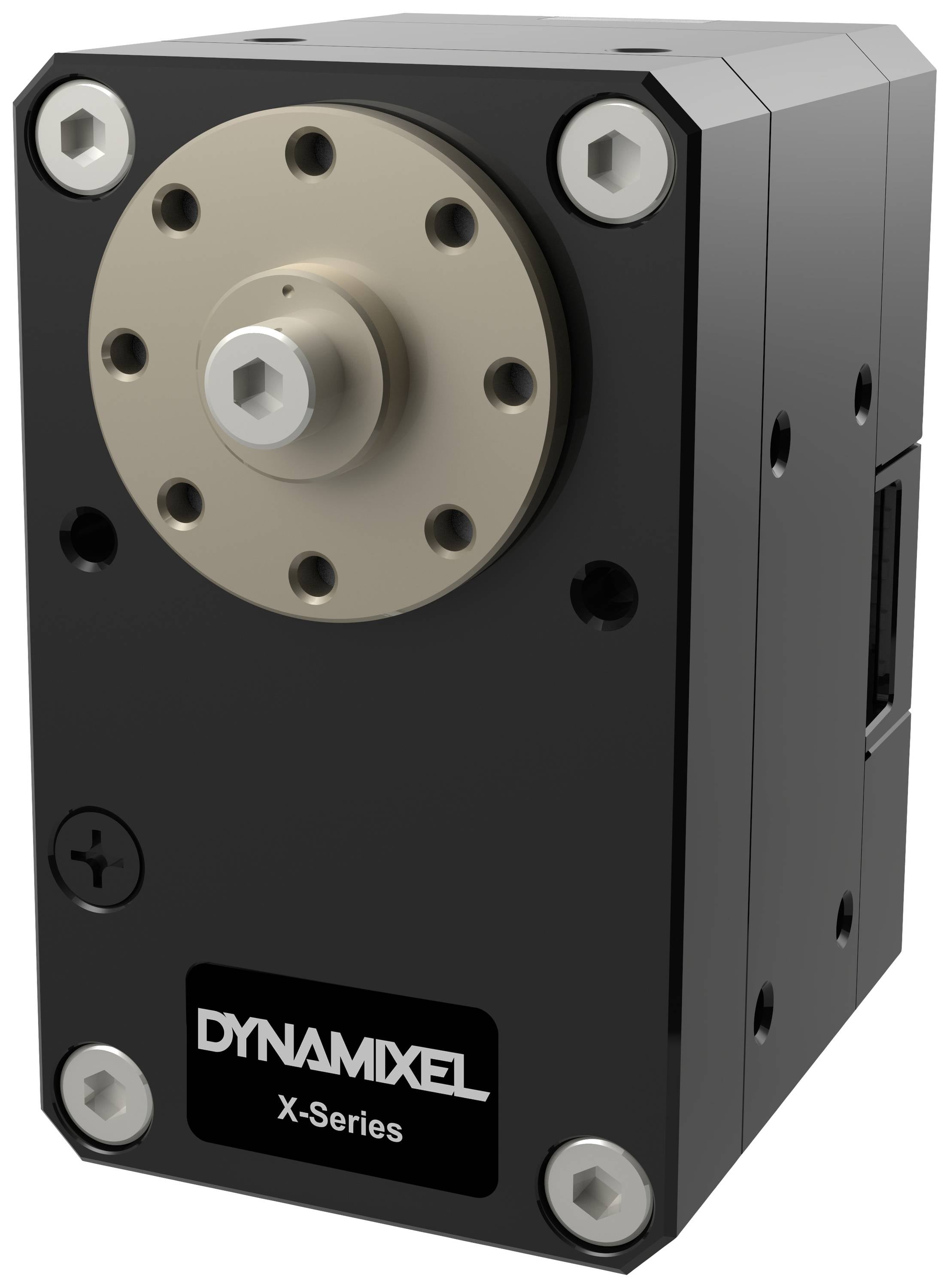

Robotis Servo motor MBS-ANT-89
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 1,205.00 / piece)
€ 1,205.00
incl. VAT
Only available for business customers
14-day return policy includedTechnical specifications
- SERVO MOTOR: DYNAMIEL XD540-T270-R
- Weight 170 g
- Dimensions 33.5 x 58.5 x 44 mm
- Gear-reduction ratio 152.3:1
- Torque 24V 6.4 N.m
- Rev/min 24V 60
- Internal UC: STM32F103C8 72MHz Cortex M3
- Encoder: Contactless magnet encoder
- Setting accuracy 0.088° x 4096 steps
- Operating voltage 24 V.
- RS485
- ID: 0 - 252
- Baud rate: 9600 bps - 4.5Mbps
- Product type
Servo motor
- Manufacturer part #
MBS-ANT-89
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3204994 Robotis Servo motor MBS-ANT-89
Description
The Dynamix X-Series, is currently the latest network servo-motors series, by ROBOTIS. The XD540-T270-R servomotor has a non-contact magnetic encoder which enables 360° rotations with a speed of up to 60rpm. Torques of up to 6.4N.m with a voltage of up to 24V are possible. These outstanding performance features coupled with the extremely low weight of only 170g result in a very powerful servo motor for the universal application area. Beyond that the cable routing was fundamentally revised with the Dynamic X-series, whereby a still higher reliability was achieved. The cables are no longer connected to the rear of the servo motor as is usual in the AX/MX series, but are guided past the pivot and pivot points, thus reducing the cable strain and minimizing exposed cables.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x DYNAMIXEL XD540-T270-R servo-motor
- 1x servo horn (HN13-N101)
- 1x data and power cable X3P
- 5x distancing rings
- Various screws and nuts
