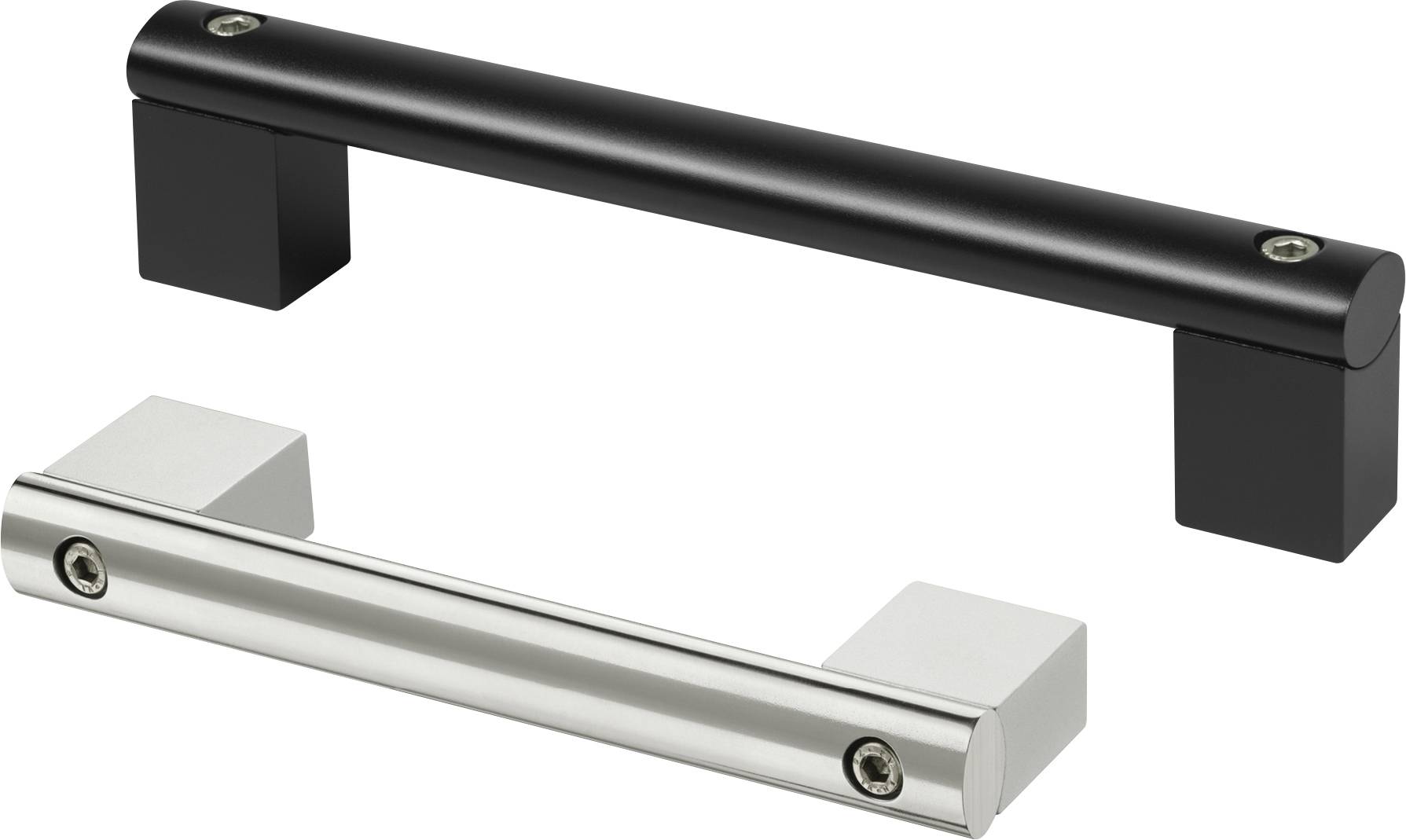

Rohde A7-17.F240.11 Case handle Silver (L x W x H) 270 x 26 x 47 mm 1 pc(s)
Product type
Case handle
Material
Aluminium
Dim
(L x W x H) 270 x 26 x 47 mm
Width
26 mm
Height
47 mm
EAN:
Part number:
Item no:
Highlights & Details
Rohde grip of the series "A7", for front screwing, thigh+bridge anodized in nature
- Content: 1 pcs.
Technical specifications
- Version: A
- Surface treatment: Anodized
- Material (material): AlMgSi 0.5
- Manufacturer color: silver
- Mounting method: c:Round bore
- Series name: A7-17
- Handle type (series): Grip series A7
- Hole diameter: M6
- Dim
(L x W x H) 270 x 26 x 47 mm
- Product type
Case handle
- Material
Aluminium
- Width
26 mm
- Height
47 mm
- Length
270 mm
- Hole spacing
240 mm
- Factory colour
Silver
- Content
1 pc(s)
- Hole Ø
6 mm
- Max. load capacity
1000 N
- Type
A7-17.F240.11
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2343448 Rohde A7-17.F240.11 Case handle Silver (L x W x H) 270 x 26 x 47 mm 1 pc(s)
Description
Material and surface:
Handle legs made of extruded
Aluminum AlMgSi 0.5;
glass ball-blasted, satined and
natural colors or black anodized.
Type A:
Extruded connection profile
Aluminum AlMgSi 0.5;
glass ball-blasted, satined and
natural colors or black anodized.
Type B:
Connection profile made of stainless steel
1.4307; ground and matt gloss
brushed.
This text is machine translated.
Handle legs made of extruded
Aluminum AlMgSi 0.5;
glass ball-blasted, satined and
natural colors or black anodized.
Type A:
Extruded connection profile
Aluminum AlMgSi 0.5;
glass ball-blasted, satined and
natural colors or black anodized.
Type B:
Connection profile made of stainless steel
1.4307; ground and matt gloss
brushed.
This text is machine translated.
Scope of delivery
- For front screwing
- Using stainless steel socket head screws
- With hexagon socket
- DIN 912, nuts DIN 934
- And washers DIN 125
- (Included).
